MOOER Pitch Box - Manual

PLEASE READ CAREFULLY BEFORE PROCEEDING
Power Supply
Connections
Always turn off the power of this and all other equipment before connecting or
disconnecting, this will help prevent malfunction and / or damage to other devices.
Also make sure to disconnect all connection cables and the power cord before
moving this unit.
Location
To avoid deformation, discoloration, or other serious damage, do not expose
this unit to the following conditions:
Direct sunlight Heat sources
Magnetic fields Extreme temperature or humidity
Excessive dusty or dirty location High humidity or moisture
Strong vibrations or shocks
Please connect the designated AC adapter to an AC outlet of the correct voltage.
Please be sure to use only an AC adapter which supplies 9V (±10%) DC, center
minus. The maximum working voltage shall not exceed 12V, otherwise may be
dangerous equipment damage, fire or other problems.
Unplug the AC power adapter when not using or during electrical storms.
Precautions
FCC certification
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference
that may cause undesired operation.
Harmony: It shifts the pitch and mixes it back with the original signal to
create a rich harmonic voice.
Pitch Shift: Outputs a precise polyphonic pitch shifting voice.
Detune: It slightly shifts the pitch and mixes it back with the original signal
to create a chorus-like effect, it brings a lot of nice spacy feeling.
Harmony/Pitch Shifting Pedal
3
4
5
6
7
8
7. PITCH Knob: Adjusts the range of the pitch shifting sound.

 Precise polyphonic pitch shifting
 ±2 Oct Pitch Range (16 optional parameters)
 Full metal shell Very small and compact design
 True bypass switch DC 9V adapter power supply 3 Effects Modes: Harmony, Pitch Shift, Detune
Main Features
Effects Modes: 3 (Harmony, Pitch Shift, Detune)
Input: 1/4” monaural jack (impedance: 470k Ohms)
Output: 1/4” monaural jack (impedance: 100 Ohms)
Current Draw: 128 mA
Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
Weight: 170g
Accessories: Owner’s Manual
* Disclaimer: Any specification’s update won't be amended in this manual.
Parameters List
1 semitone
2 semitones
3 semitones
5 semitones
7 semitones
9 semitones
12 semitones
24 semitones 1
2
3
5
7
9
12
24
24
12
9
7
5
3
2
1
+1 semitone
+2 semitones
+3 semitones
+5 semitones
+7 semitones
+9 semitones
+12 semitones
+24 semitones
Detune
35 cents
40 cents
30 cents
25 cents
20 cents
15 cents
10 cents
cents 5
Detune
+10 cents
+15 cents
+20 cents
+25 cents
+30 cents
+35 cents
+40 cents
+5 cents

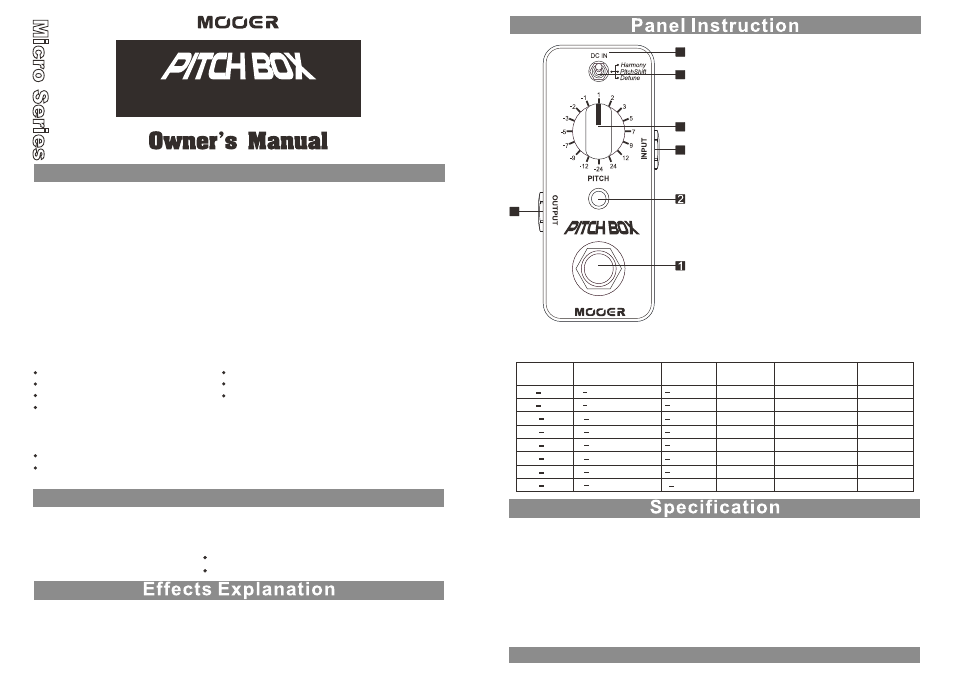

Description Panel
Description Panel Harmony
/Pitch Shift
Harmony
/Pitch Shift
Power Requirements: AC adapter 9V DC (center minus plug),
recommended to use Mooer Micro Power
1. TRUE BYPASS Footswitch:
Push down the footswitch to toggle
between on and bypass status.
2. ON/OFF LED:
Shows the on/off status of
PITCH BOX, when the LED
is lit the effect is engaged.
3. DC IN Power Jack:
For power supply, use a 9-volt
DC regulated AC adapter (plug
polarity is positive on the barrel
and negative in the center).
4. INPUT Jack:
1/4” mono audio jack, for
connecting guitar.
5. OUTPUT Jack:
1/4” mono audio jack, outputs
the signal.
6. Mode Switch:
Switch between Harmony mode,
Pitch Shift mode and Detune mode.
