18
Installation

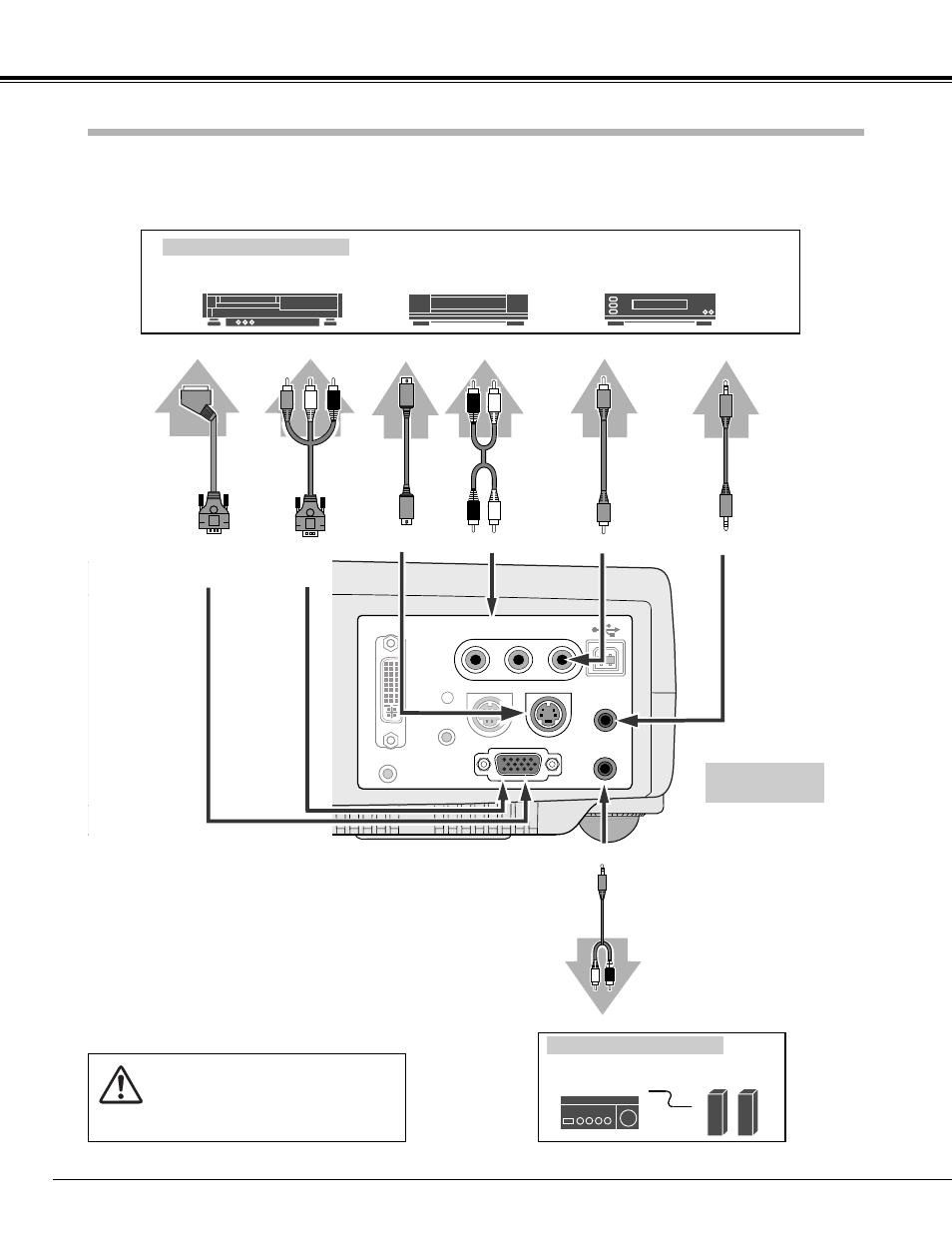

Connecting to Video Equipment
AUDIO
R IN L
VIDEO IN
DVI-I/
RGB IN-1
SERVICE PORT S-VIDEO IN COMPUTER
AUDIO IN
AUDIO OUT
RGB IN-2/
COMPONENT IN/
RGB OUT
RESET
MCI
Video Source (example)
Video Cassette Recorder Digital Camcorder
S-VIDEO
Cable
✽
Audio Amplifier
Audio Speaker
(stereo)
Audio Cable
(Stereo)
✽
Terminals
of the Projector
S-VIDEO
Output
Audio Input
• Video Cable (RCA x 1) ✽
• S-VIDEO Cable ✽
• Audio Cables (Mini Plug (stereo) x 2 or RCA x 2) ✽
• Scart-VGA Cable ✽
• Component-VGA Cable ✽
NOTE :
When connecting the cable, the power
cords of both the projector and the
external equipment should be
disconnected from AC outlet.
Audio Output
Audio Cable
(Stereo)
✽
External Audio Equipment
S-VIDEO IN VIDEO IN
AUDIO OUT
Component video output equipment.
(such as DVD player or high-definition TV source.)
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Composite Video Output
Video Cable
(RCA x 1s)
✽
Scart-VGA
Cable ✽
RGB Scart
21-pin Output
Cables used for connection ( ✽ = These accessories are not supplied with this projector.)
Component-
VGA Cable ✽
Audio Cable
(RCA x 2)
✽
Audio Output
(R, L)
AUDIO IN
NOTE
● The S-VIDEO IN jack has priority over the VIDEO IN jack under
the condition of connecting both the S-VIDEO IN jack and the
VIDEO IN jack when selecting AUTO in the Input Menu.
● Select COMPUTER 2 in the Setting Menu when the RGB IN-2/
COMPONENT IN/ RGB OUT terminal is used as RGB Scart 21-
Pin video input or Component video input. (See "Terminal" on
page 39.)
● Input sound to the COMPUTER AUDIO IN terminal when
using the RGB IN-2/ COMPONENT IN/ RGB OUT terminal as
input.
RGB IN-2 /
COMPONENT IN/
RGB OUT
RGB IN-2 /
COMPONENT IN/
RGB OUT
COMPUTER
AUDIO IN
