DIRECTOR EC Series Operator’s Guide Document Revision: 080904
Page 13

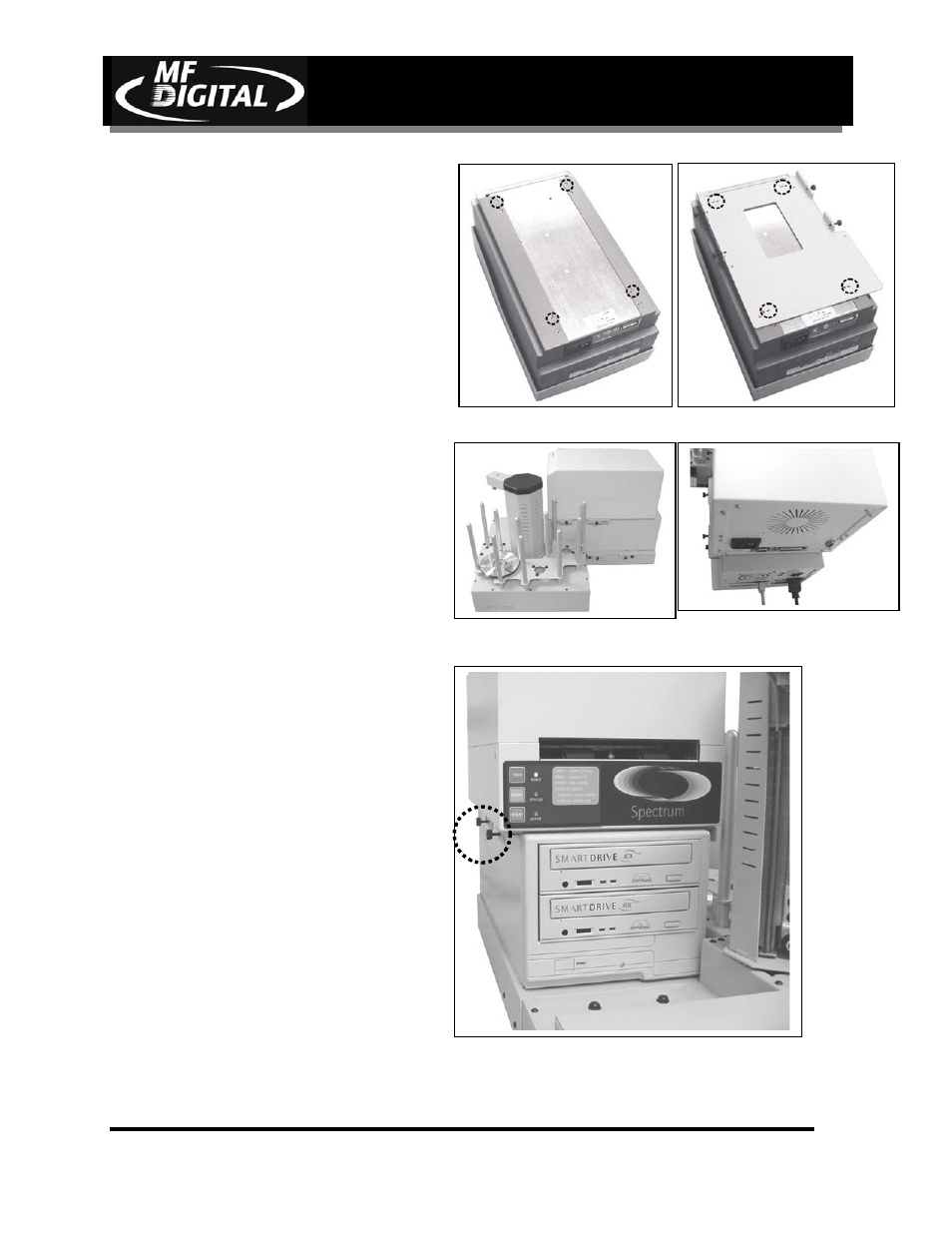

1. With a Torx head
screwdriver, remove the
rubber feet from the
bottom of the printer (fig.
1).
2. Using the flat head screws
provided, attach the
printer plate to the bottom
of the printer as seen in
(fig. 2).
NOTE: Fig 3 – Fig 5 shows placement of
Spectrum 2 printer. Placement for Prism
Plus is similar.
3. Place the printer / plate
onto the drive bay (fig. 3)
4. Use the dotted line at the
rear of the drive bay to
guide the positioning of
the printer on the drive
tower (fig. 4)
5. After placing the printer
on the drive tower, use the
“Printer Alignment”
function to align the
printer. Please refer to p.
30 for details.
6. Once you are satisfied
with the printer
alignment, tighten the
thumb-screws located on
both sides of the printer
(fig. 5).
(fig. 2) (fig. 1)
(fig. 3) (fig. 4)
(fig. 5)
