MAXREFDES27# IO-Link Proximity Sensor Quick Start Guide
6
4. Procedure
1. Connect the A-to-B Type USB cable from the PC and yellow IO-Link cable to
the Balluff USB IO-Link master (silver box with part number BNI USB-901-000-
A501) as shown in
Figure 1 .
2. Connect the MAXREFDES27# proximity sensor board to the other side of the
yellow IO-Link cable. Make sure the green LED is lit as shown in Figure 2 . The
red and yellow LEDs do not need to be lit.
3. Download the latest “all design files” RD27V01_XX.ZIP file at
www.maximintegrated.com/AN5868 . All files available for download are
available at the bottom of the page.
4. Extract the RD27V01_XX.ZIP file to a directory on your PC. The location is
arbitrary but the maximum path length limitation in Windows (260 characters)
should not be exceeded.

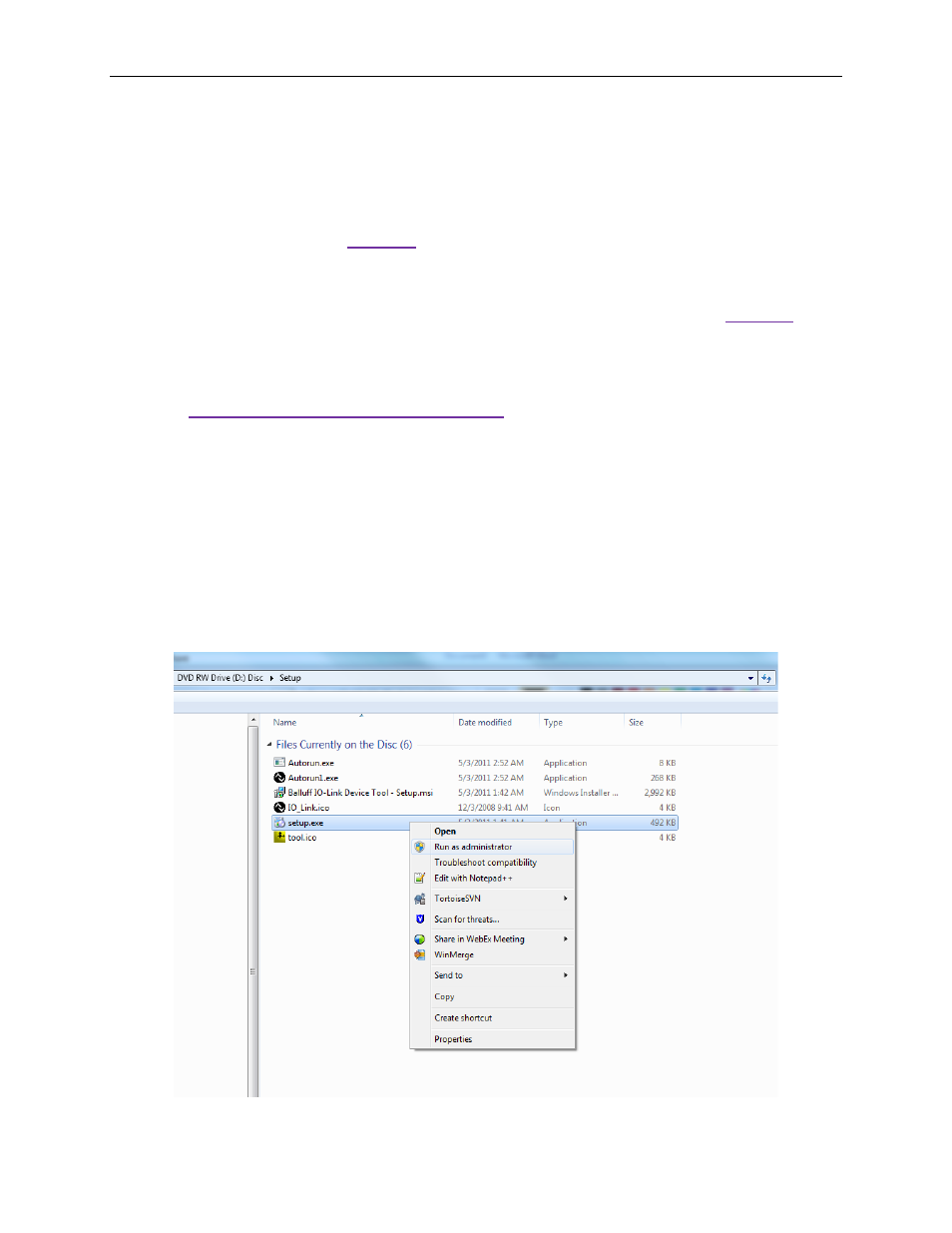

5. Install the Balluff IO-Link Device Tool. This tool comes with the purchase of the
Balluff USB IO-Link master (silver box with part number BNI USB-901-000-
A501). Run the setup.exe file using the Run as administrator mode.
