Carmel (MAXREFDES18#) ZedBoard Quick Start Guide
5
3. Included Files
The top level of the hardware design is a Xilinx ISE Project Navigator Project (.XISE) for
Xilinx ISE version 14.2. The Verilog-based top.v module provides FPGA/board net
connectivity, allows HDL interaction with peripherals, and instantiates the wrapper that
carries both the Zynq® Processing System and (I
2
C, SPI, GPIO, UART) soft peripherals
that interface to the Pmod ports. This is supplied as a Xilinx software development kit
(SDK) project that includes a demonstration software application to evaluate the Carmel
subsystem reference design. The lower level c-code driver routines are portable to the
user’s own software project.

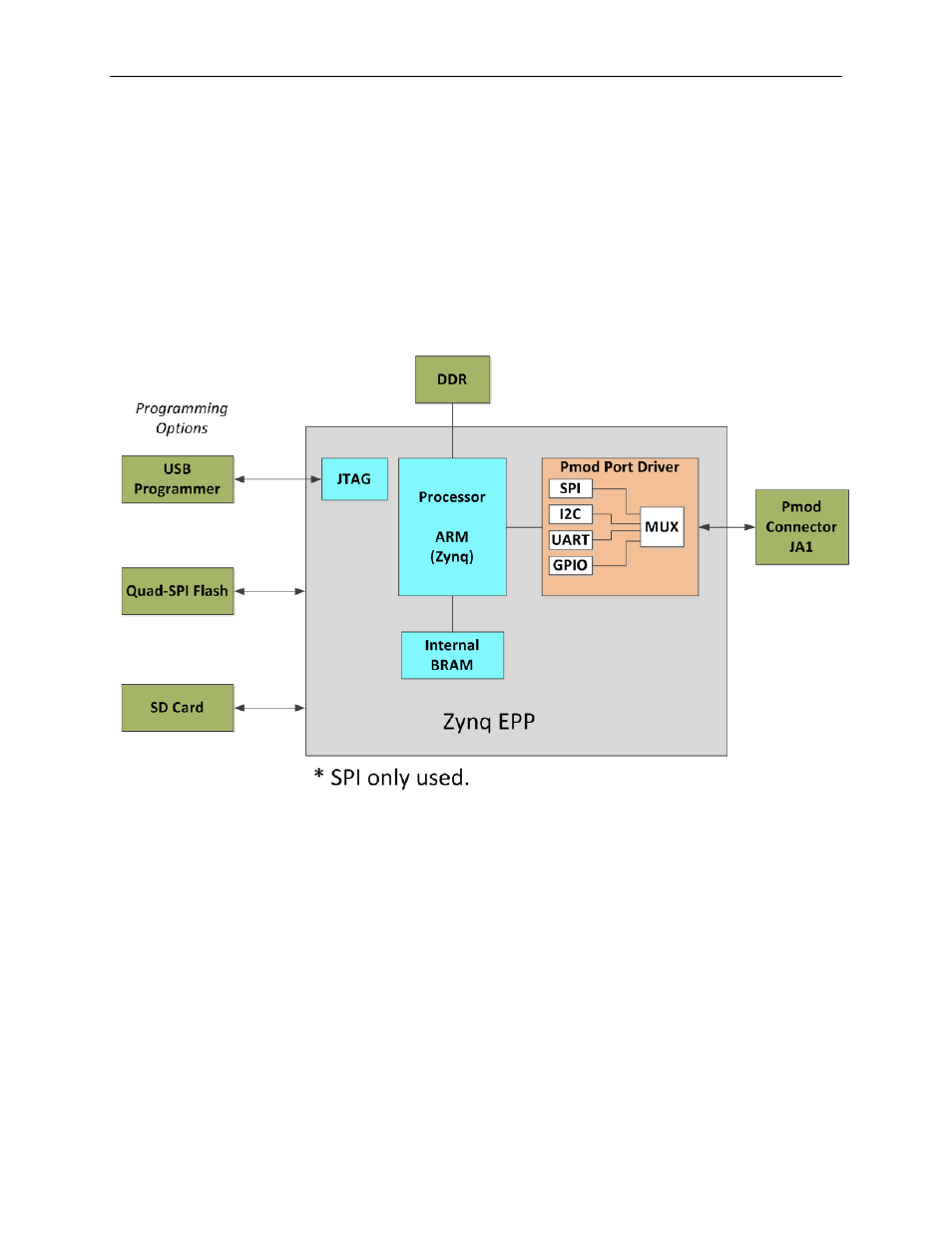

Figure 3. Block Diagram of FPGA Hardware Design
