Corona (MAXREFDES12#) ZedBoard Quick Start Guide
10

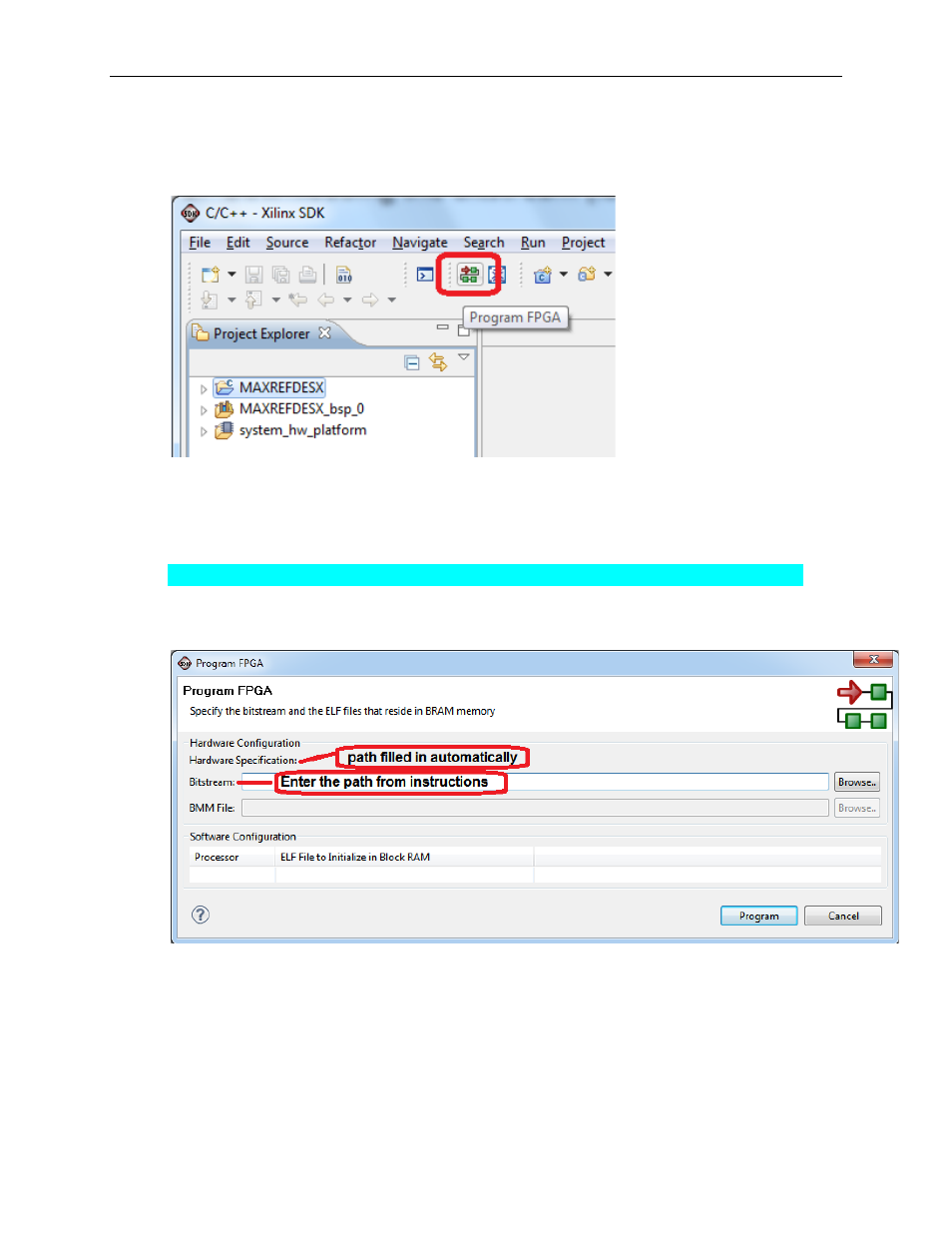

10. To download the bitstream (.BIT) file to the board, click on the Program FPGA
icon (which looks like a green chain of devices).
The Program FPGA dialog box appears. From here, an FPGA bitstream (.BIT)
file is selected. Be sure to select the .BIT file by using the paths below.
Bitstream:
C:\designs\maxim\RD12V01_00\RD12_ZED_V01_00\Design_Files\top.bit
Press Program.
It takes approximately 10 seconds to download the FPGA, then a message box
indicating FPGA configuration complete appears.
