Corona (MAXREFDES12#) Nexys 3 Quick Start Guide

10

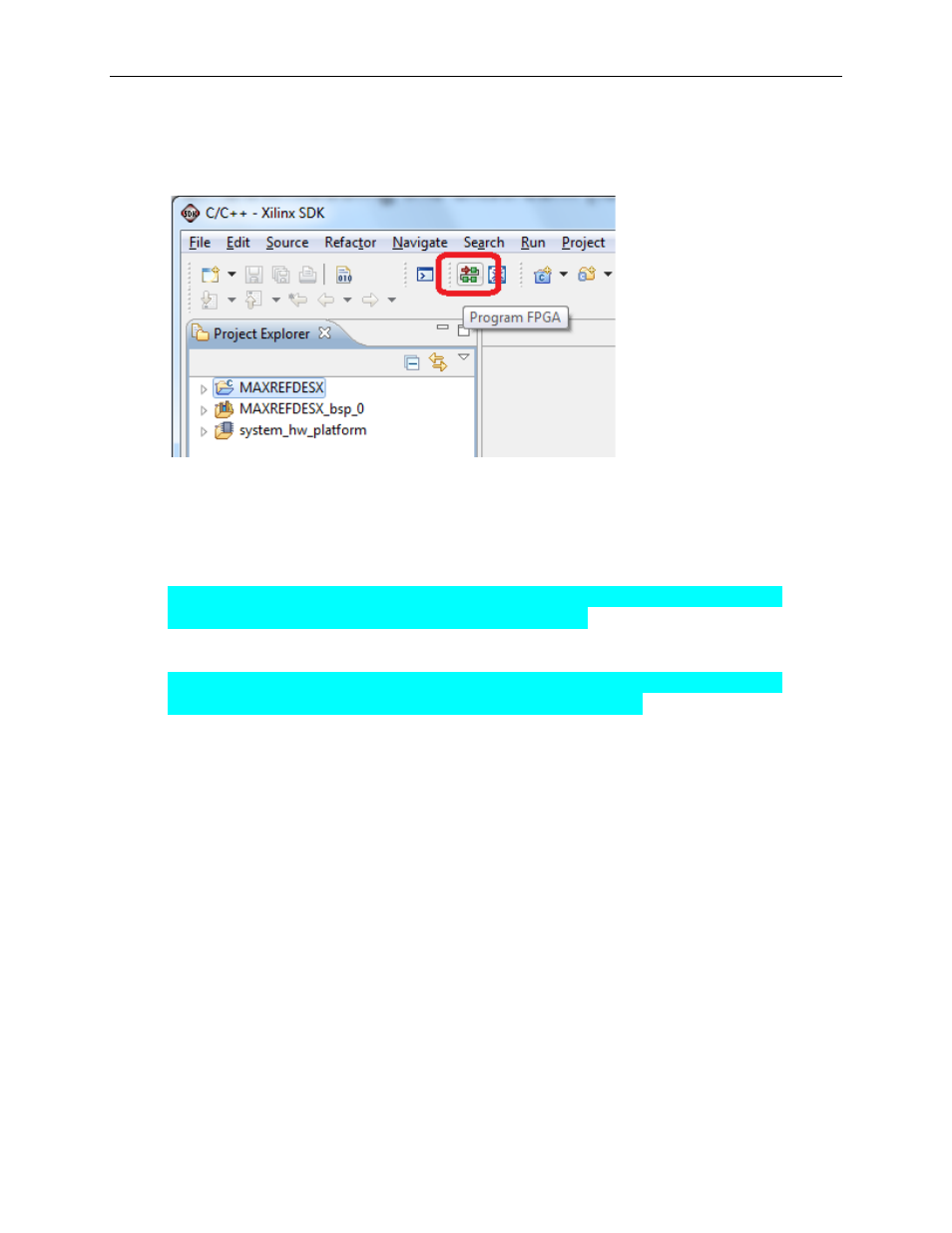

10. To download the bitstream (.BIT) file to the board, click on the Program FPGA

icon (which looks like a green chain of devices).


The Program FPGA dialog box appears. From here, an FPGA bitstream (.BIT)
file is selected as well as an FPGA BMM (.BMM) file. Be sure to select the .BIT
file and the .BMM by using the paths below.

Bitstream:
C:\designs\maxim\RD12V01_00\RD12_NEXYS3_V01_00\Design_Files\
sdkWorkspace\system_hw_platform\system.bit

BMM File:
C:\designs\maxim\RD12V01_00\RD12_NEXYS3_V01_00\Design_Files\
sdkWorkspace\system_hw_platform\system_bd.bmm
