6
Connecting 2 Analog Memory to 2
Pressure Points
Connect one of the remaining 3 connectors to the 10 pin header on
the Pressure Points that is marked “EXPND.” You will need to re-
move all 4 of the small black “jumpers” that are covering the pins of
this header before you attach the EXPAND CABLE. Maintain proper
orientation of the cable, keeping the Red Stripe DOWN. Connect
each Analog Memory to the Pressure Points with which you wish to
control it.
Using the provided CHAIN cable, connect the two Analog Memory
modules at the 10 pin header marked “CHAIN” at top left on back-
side of the module. Maintain proper orientation of the cable, keep-
ing the Red Stripe DOWN at both ends. Analog Memory(s) that are
not the that last in the CHAIN will need to have the jumper marked
“Close 4 Master” removed.
Please see the Pressure Points manual for details on proper jumper
settings for CHAINing Pressure Points, and follow those instructions.

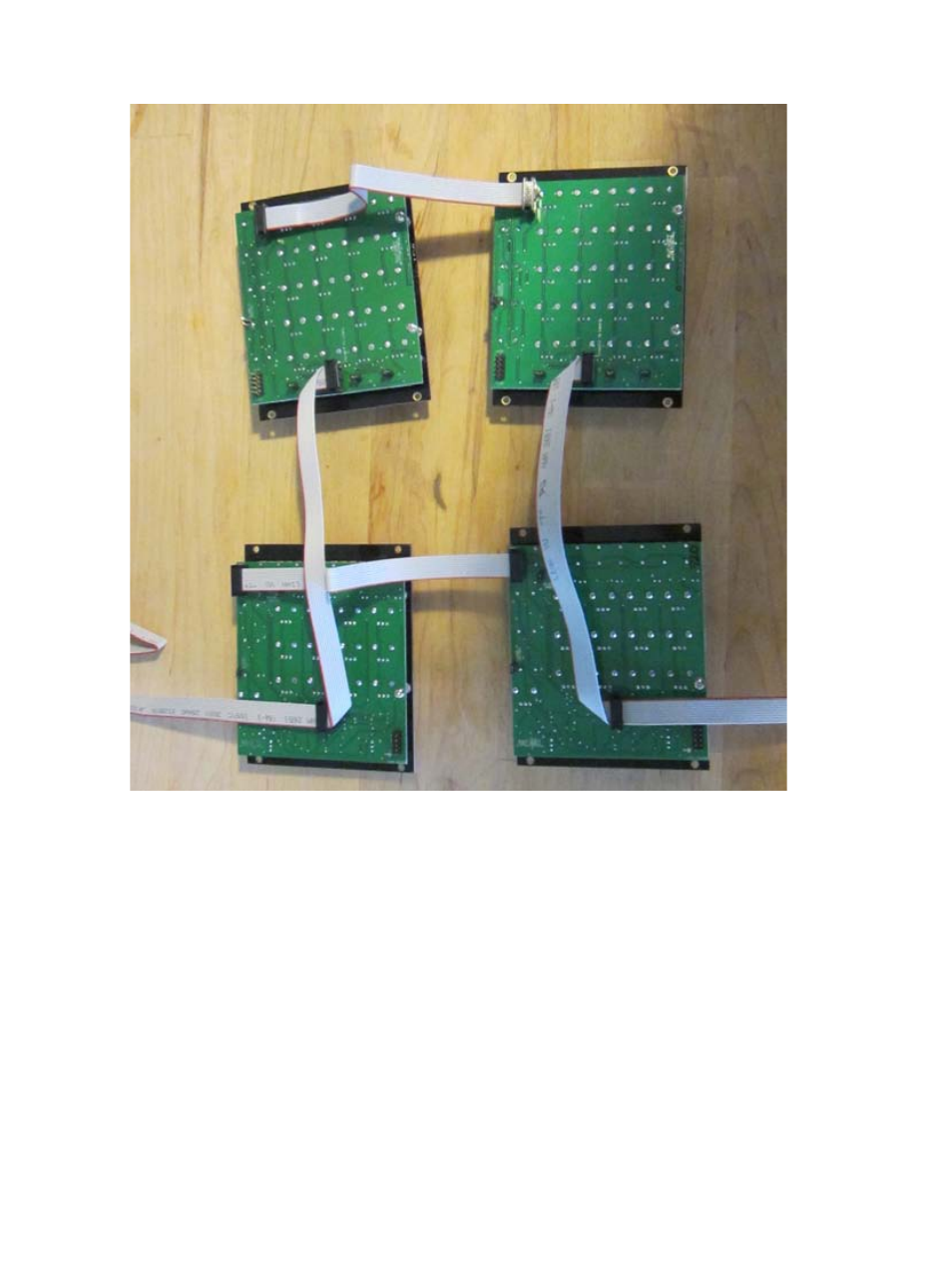

NOTE: Power Cables removed in photo for clarity.
