24
Vermont Castings, Majestic Products: DVR33
10004920
RN/RP and EN/EP Models
For units equipped with ‘HI/LO’ valves the flame
adjustment is accomplished by rotating the ‘HI/LO’
adjustments knob located near the center of the gas
control valve (Fig. 41 and Fig. 42).
Flame and Temperature Adjustment
Fig. 41 Flame adjustment knob for Honeywell Valve.
Fig. 42 Flame adjustment knob for SIT Valve.
Turn
counterclockwise
to decrease
flame height
Turn clockwise
to increase
flame height
Honeywell Valve
Turn
counterclockwise
to increase
flame height
Turn clockwise
to decrease
flame height
SIT Valve
The logs are fragile and should be
handled with care.
Keep the packaging material out of the
reach of children, and dispose of the
material in a safe manner.
During this procedure, refer to Fig. 40 for log
identification.
1. Remove the top louvre assembly.
2. Remove the window frame assembly. See “Window
Frame Assembly Removal” on page 23.
3. Fit the rear right log (A34) in place on the rear log
support. The hole in the underside of the log fits
over the pin on the right end of the support shelf.
4. Fit the front/rear left log (A33) in place on the rear
log support. The hole in the underside of the log fits
over the pin on the left end of the support shelf.
5. Fit the front right log (A35) in place, the top end of
the log with the hole in the underside aligning with
the knob on the rear right log (A34), and the other
end with the cut slot resting on the right side edge
of the front grate.
6. Fit the front center log (A36) on the center slot of
the front grate. The flat end of this log sets against
the back wall of the front grate plate.

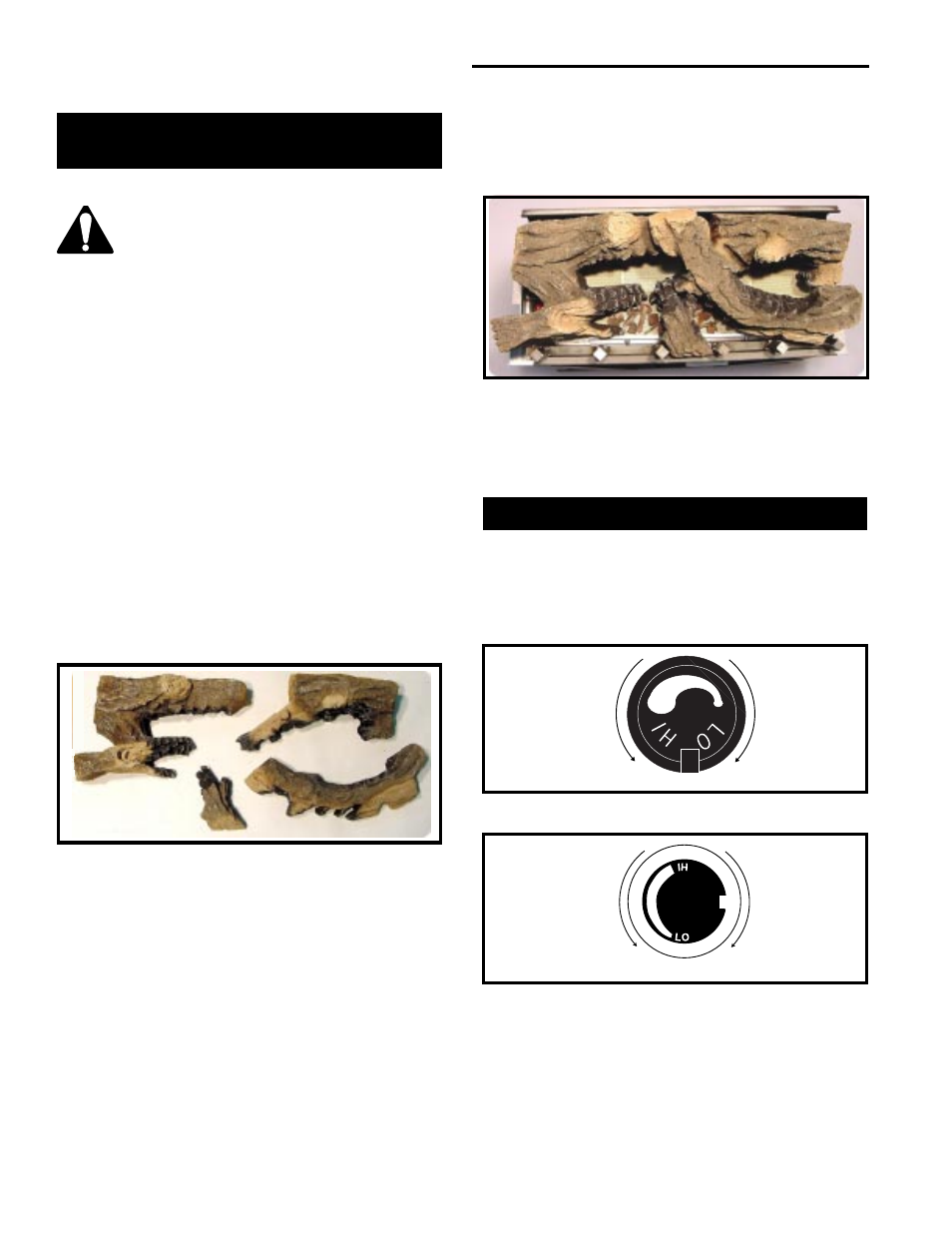

Installation of Logs
and Lava Rock Material
Fig. 40 DVR33 Log Set (top view)
The log set contains two types of lava rocks. Placing
these materials is best done after the logs have been
installed.
Glowing Lava Rock: (Part Number 57897) Remove
from the packaging and spread them over the burner
tiles in a random fashion to fill the space highlighted in
Fig 41.
NOTE: Glowing lava rock for DVR33 is only
allowed to be positioned at the front area
(radiant portion) of the burner housing
assembly.
Fig. 41 DVR33 Log Set Assembly.
Lava Rock: (Part Number 10001454) Remove from
packaging and spread over the sides of the burner
housing. Do not place this material on the burner
tiles.
A34
A33
A35
A36
