44

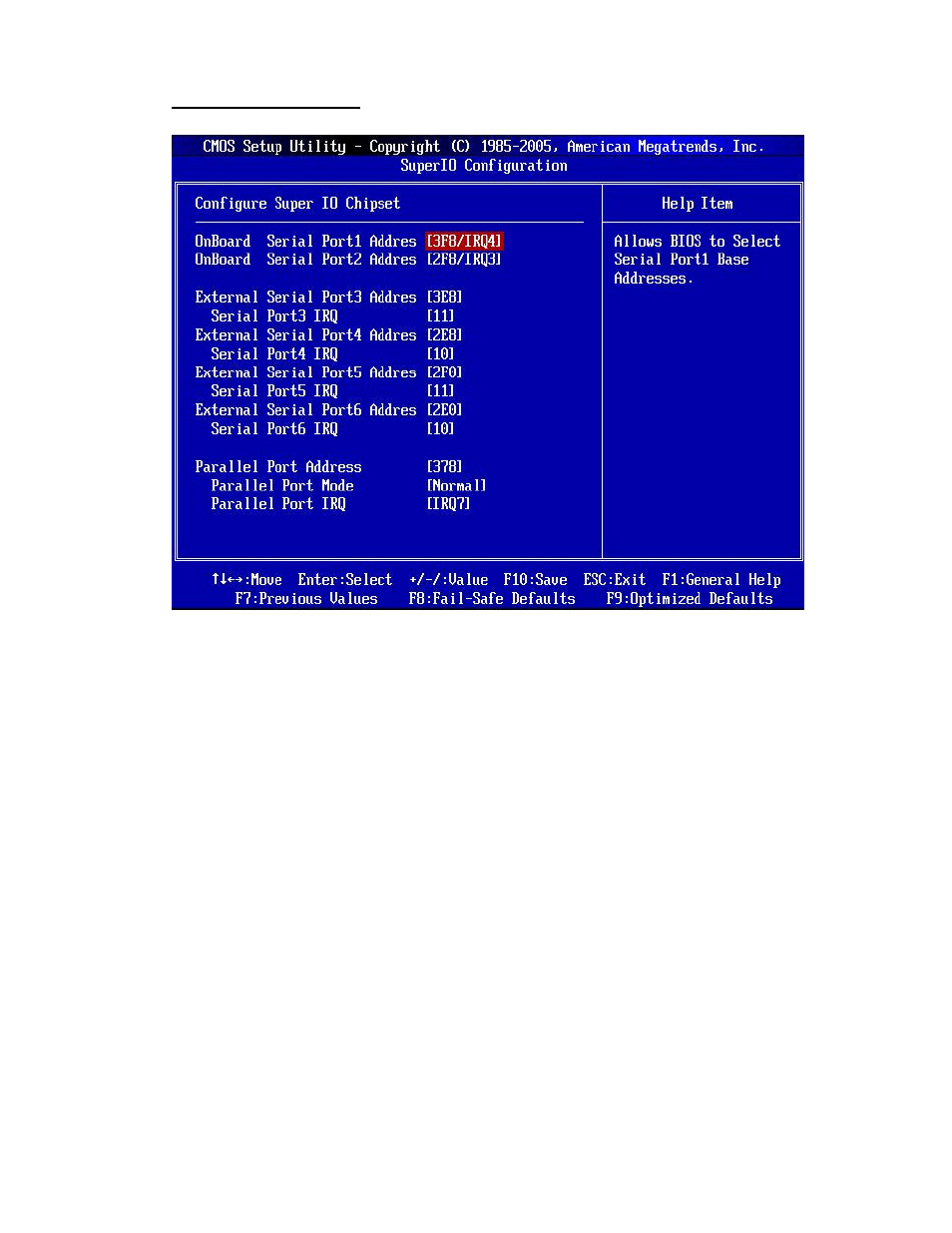

SuperIO Configuration
Configure Super IO Chipset :
Allow the user to set COM1 / COM2 / COM3 / COM4 / COM5 / COM6 / LPT
port IO address & IRQ settings
OnBoard Serial Port1 Address
Allow the user to select Serial Port1 Base Addresses / IRQ Settings
[ Disable ] : Disable Serial Port1
[ 3F8 / IRQ4 ] : Set base address 3F8 and interrupt IRQ4 to COM1 Port
( Default )
[ 3E8 / IRQ4 ] : Set base address 3E8 and interrupt IRQ4 to COM1 Port
[ 2E8 / IRQ3 ] : Set base address 2E8 and interrupt IRQ3 to COM1 Port
OnBoard Serial Port2 Address
Allow the user to select Serial Port2 Base Addresses / IRQ Settings
[ Disable ] : Disable Serial Port2
[ 2F8 / IRQ3 ] : Set base address 2F8 and interrupt IRQ3 to COM2 Port
( Default )
