Longshine COBRA15 User Manual
Page 42
COBRA15
42
Version: 1.0
2.4.3 i-Button reader

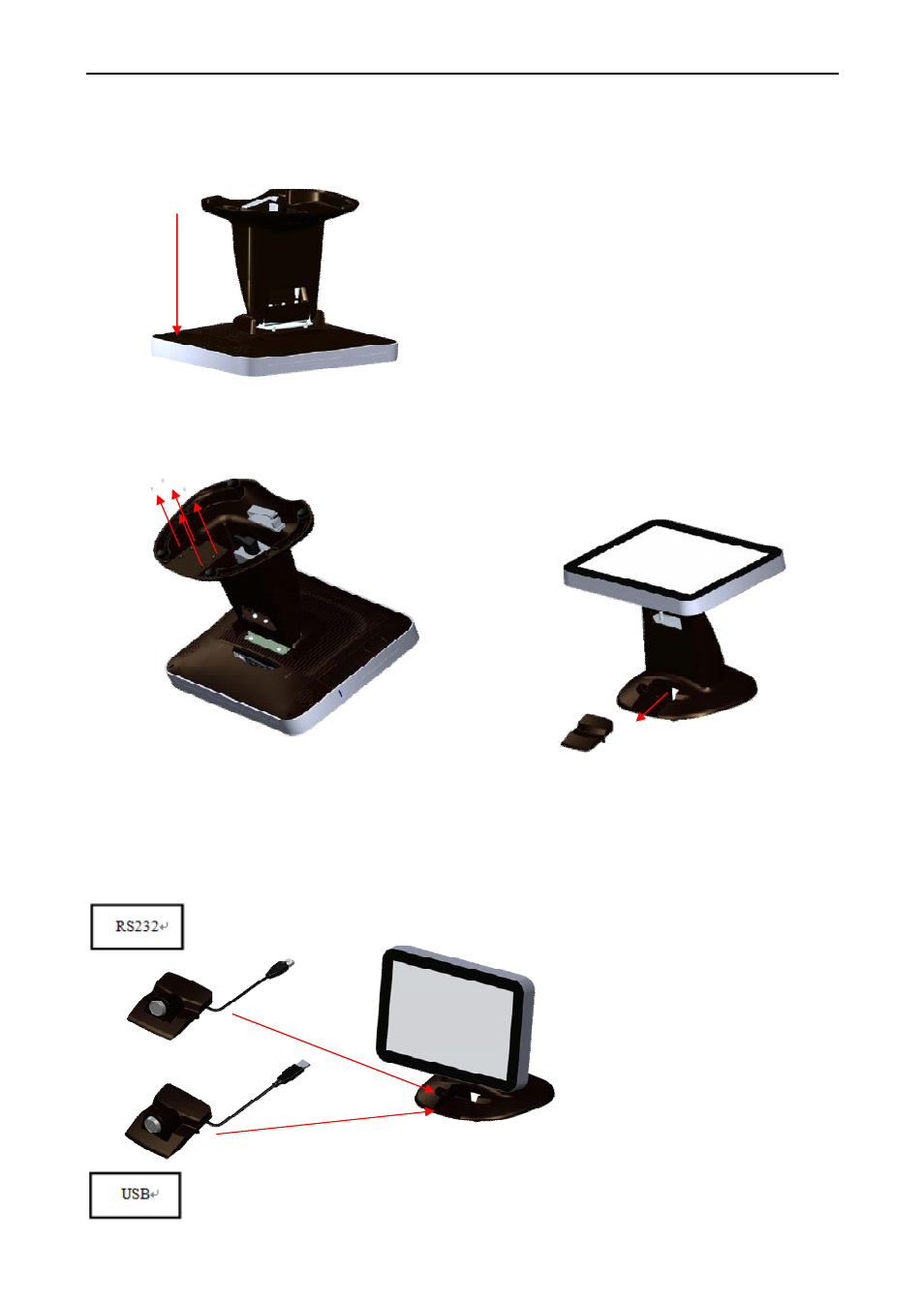

Step 1: Please position the terminal as shown below on a working table with “soft protective pad”.
Step 2: Please remove four screws indicated below.
Step 4: Please check the interface of i-Button before integration.
NOTE
: The device can choose either RJ-45 (RS232) as default or USB (optional). Please contact
with your device provider for correct interface.
Step 3: Please remove the peripheral cover
as shown below.
