Longshine COBRA15 User Manual
Page 39
COBRA15
39
Version: 1.0
2.4.2 2-Line VFD customer display

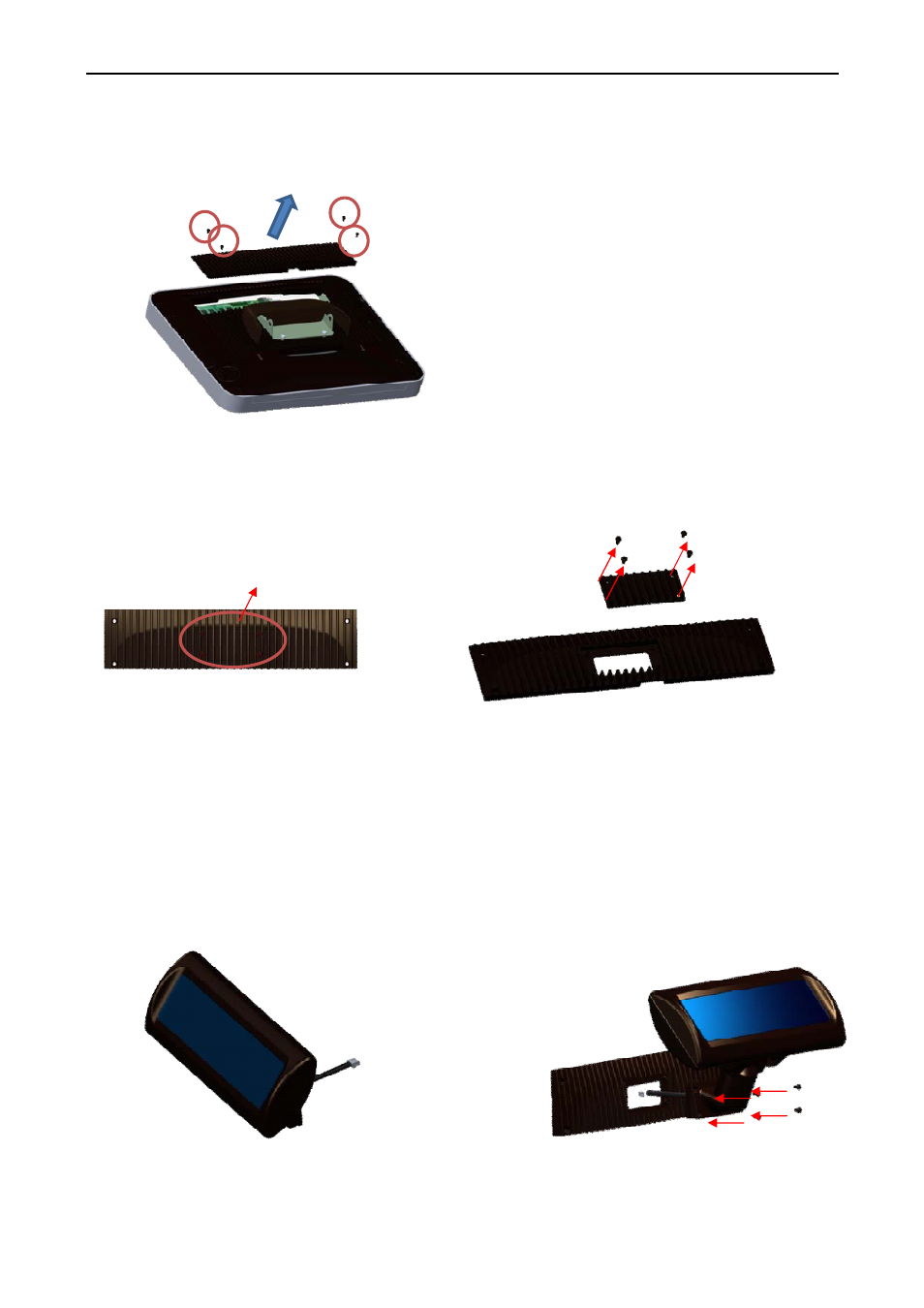

Step 1: Please remove four screws indicated below.
Step 2: Please remove four screws indicated below to release the display cover.
Step 3: Please check interface of VFD customer
display.
Step 4: Please fix VFD to function cover as
shown below.
Cable should be led through the alignment hole.
