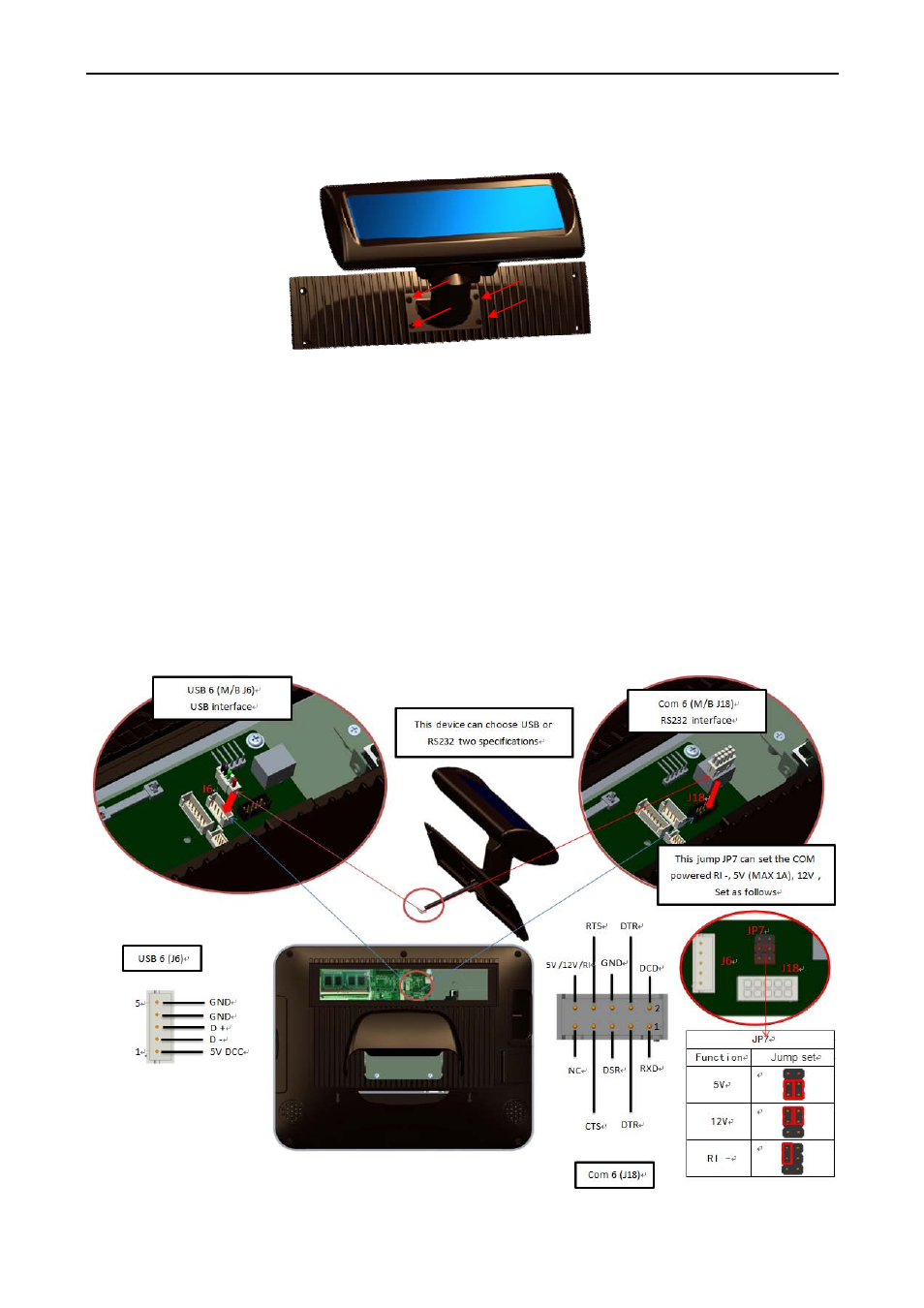

Step 5: Please screw four screws indicated below to fix VFD customer display on to function cover.
Step 6: Please refer to the follow drawing and adjust the jumper (JP7) on the motherboard to
provide +5V/ +12V power for VFD customer display.
NOTE
: The device can choose either RS232 (as default) or USB (optional). Please contact your
device provider for correct interface.
