COBRA15

29

Version: 1.0

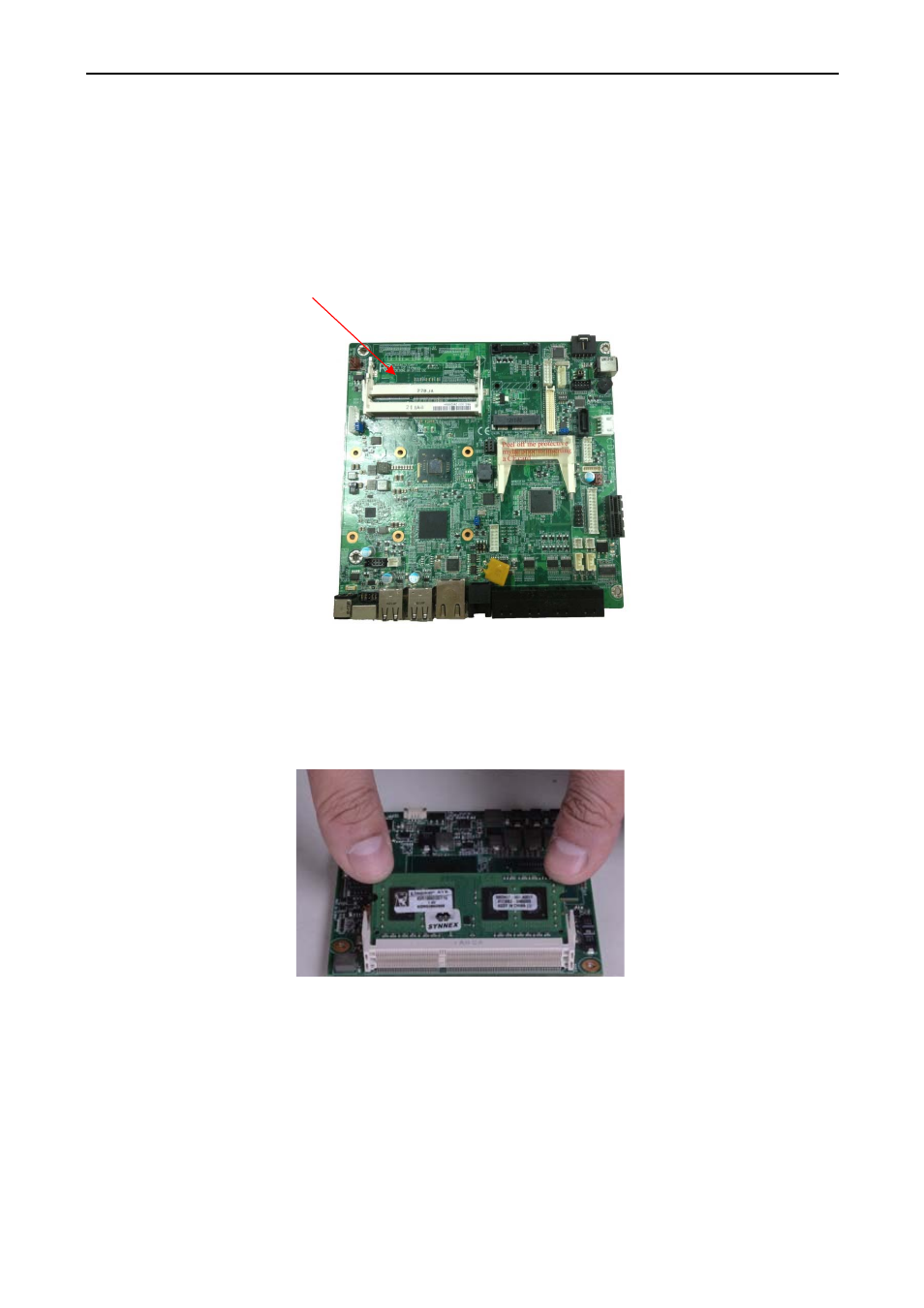

Please follow the instructions below to change memory on COBRA15.


1. Make sure that the terminal and all other peripherals which are connected to the terminal

have been powered down and unplugged.

2. Disconnect all power cords and cables.

3. Locate the SO-DIMM socket on the system board.

NOTE

the key on the socket. The key ensures the module can be plugged into the socket in only

one direction.






5. Grasping the module by its edges, align the module into the socket at an approximately 30

degrees on the socket. The contact fingers on the edge of the module will almost completely
disappear inside the socket.
