INSTALLING BIKE RACK, CON’T
4. Insert Screw Handle through hole on
Main Assembly and into threaded
block on Mounting Plate and tighten.
The last turn should line up one of
the two holes in the Screw Handle
with the hole in the Lock Plate to
allow for a padlock.
5. Secure Main Assembly to Stabilizing
Bracket with Nylon Strap. This strap
cinches all components together to
assist in stabilizing the Bike Rack.

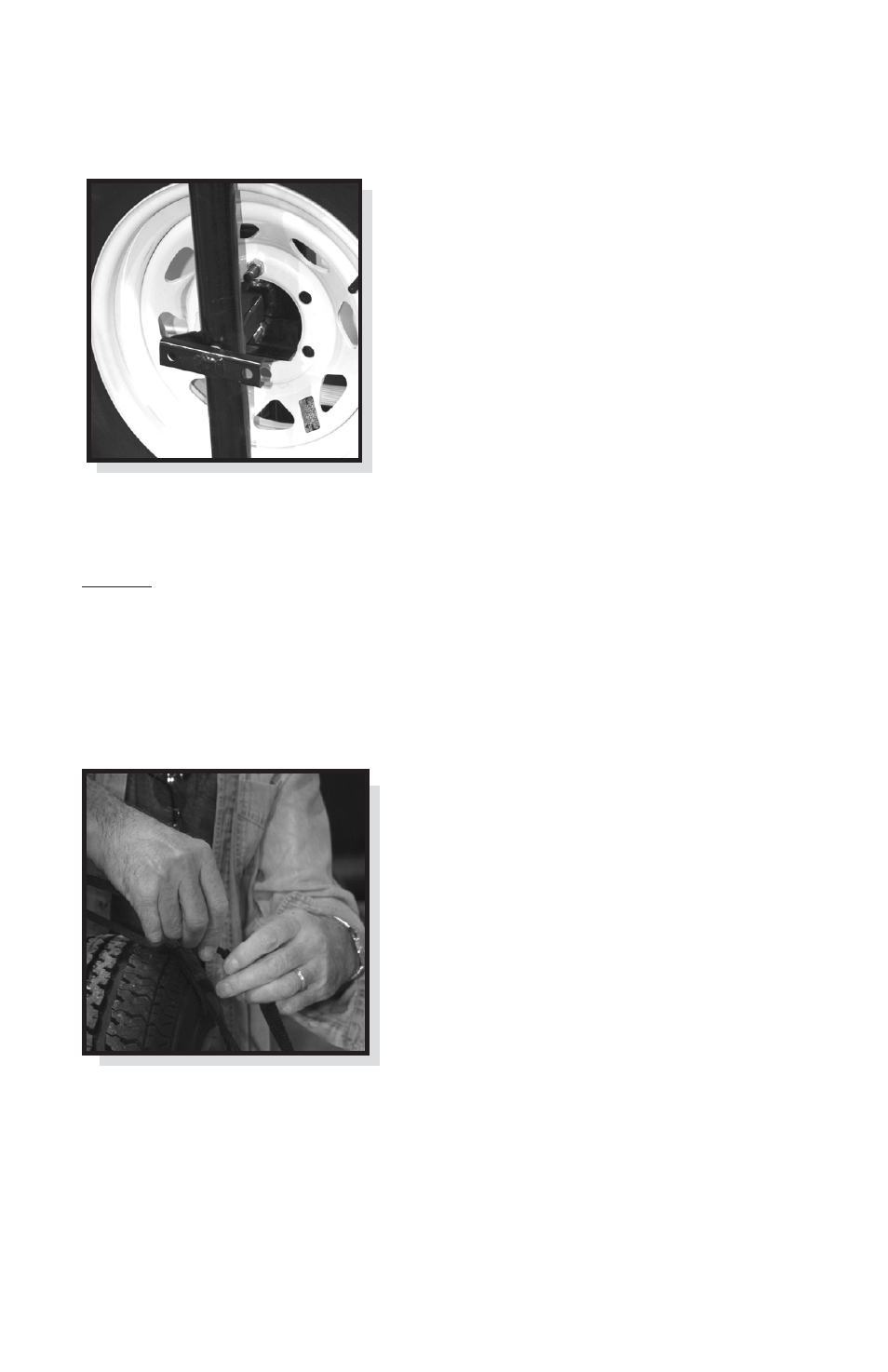

Fig. 11
Fig. 12
NOTE: A padlock must be engaged on the Lippert Bike Rack prior to
travel. Failure to lock the Bike Rack may result in property damage,
serious injury or death as well as voiding any and all warranty claims.
