IN-WALL™ Slide-out Owner's Manual

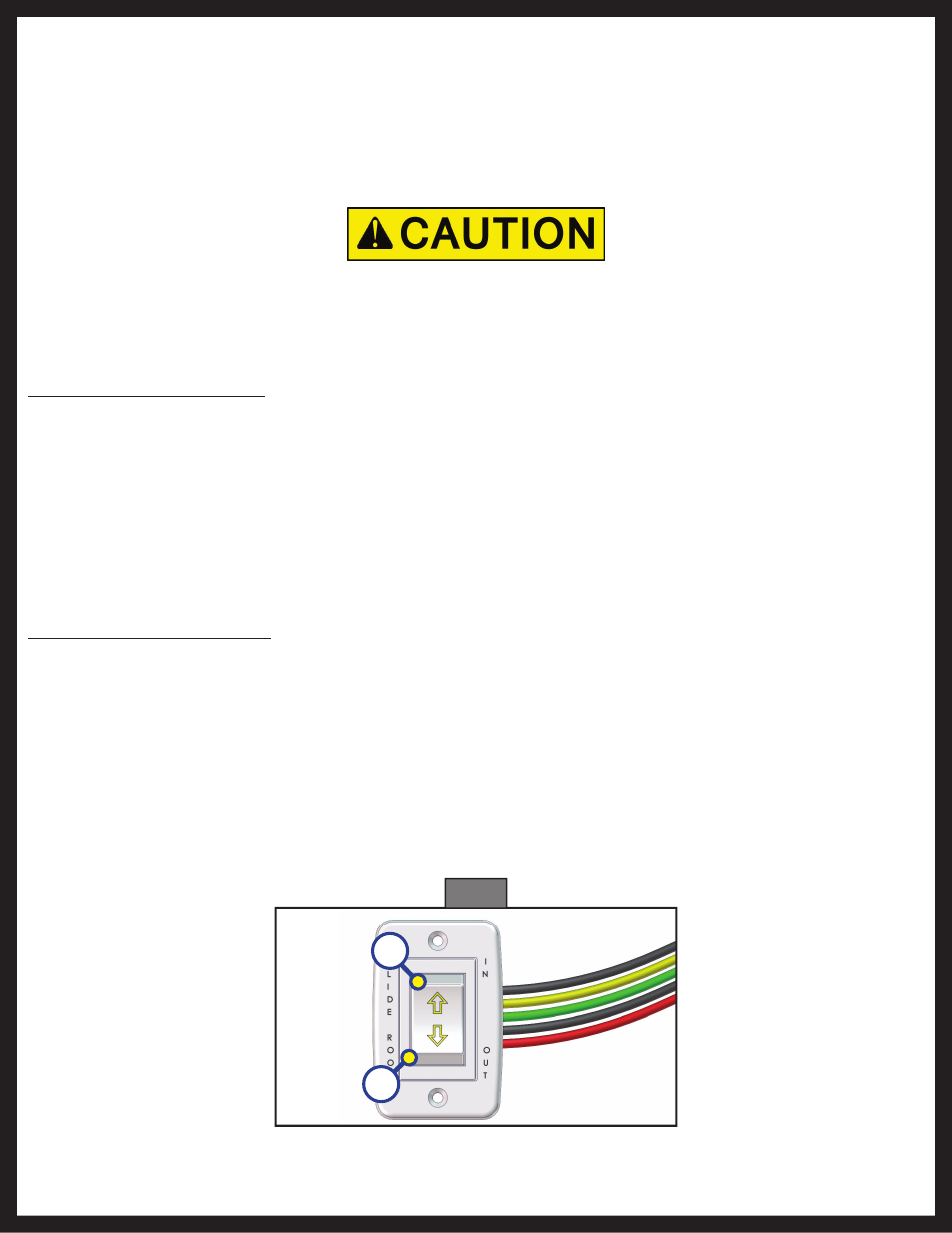

Fig. 1

Prior to Operation

1. Park the coach on the most level surface available.

2. Actuate the leveling or stabilizing systems to ensure coach will not move during operation of slide-out

system.

3. Be sure battery is fully charged.

4. Be sure to keep all persons and pets clear of slide-out system during operation.
NOTE: Install transit bars (if so equipped) on the slide-out room during storage and transportation.

Always make sure that the slide-out room path is clear of people and objects before and during

operation of the slide-out. Always keep away from the gear racks when the room is being operated.

Operation
Extending Slide-out Room

1. Level the unit.

2. Verify the battery is fully charged and hooked up to the electrical system.

3. Remove the transit bars (if so equipped).

4. Press and hold the IN/OUT switch (Fig. 1B) in the OUT position until the room is fully extended and

stops moving.

NOTE: It is important to continue to press the slide-out switch for a few seconds after the room is fully

extended until the motor shuts off. The control will sense that the room has stopped and will shut

off the motor after a few seconds.

5. Release the switch, which will lock the room into position.

Retracting Slide-out Room

1. Verify the battery is fully charged and hooked-up to the electrical system.

2. Press and hold the IN/OUT switch (Fig. 1A) in the IN position until the room is fully retracted and stops

moving.

NOTE: It is important to continue to press the slide-out switch for a few seconds after the room is fully

retracted until the motor shuts off. The control will sense that the room has stopped and will shut

off the motor after a few seconds.

3. Release the switch, which will lock the room into position.

4. Install the transit bars (if so equipped).
