IN-WALL™ Slide-out Owner's Manual

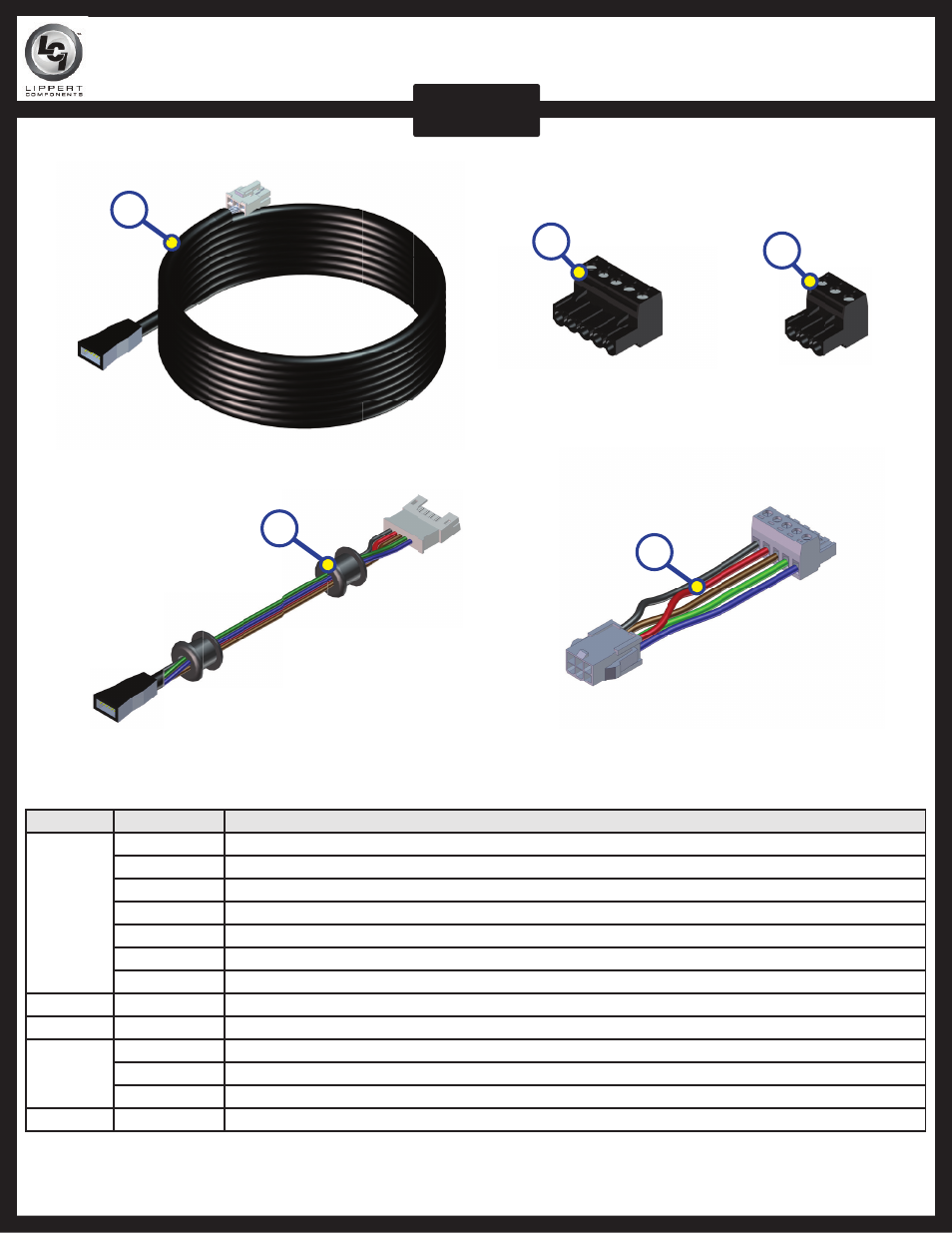

IN-WALL™ SLIDE-OUT COMPONENTS

SLIDE-OUTS

A

D

E

Callout

Part #

Description

A

238744

5 ft. Controller to Motor Harness

238990

10 ft. Controller to Motor Harness

247768

15 ft. Controller to Motor Harness

229755

20 ft. Controller to Motor Harness

238991

25 ft. Controller to Motor Harness

229756

30 ft. Controller to Motor Harness

238992

35 ft. Controller to Motor Harness

B

229758

Harness Connectors 5 Wires

C

229759

Harness Connectors 3 Wires

D

241834

5 ft. Interconnect Harness

241835

6 ft. Interconnect Harness

241836

8 ft. Interconnect Harness

E

258760

Slide Controller 6" Pigtail Harness (For use with B and C-1 Controllers with (A) harness)

B

C
