Lippert Components Hydraulic Slideout And Hydraulic Landing Gear (hlg) System User Manual
Page 18

18
SYNCHRONIZING ROOM TRAVEL
The Lippert Electric Slideout System room travel (both sides of the room
traveling the same distance) can be adjusted with specially designed
synchronizing bracket mounted on the passive slide tube. The passive slide tube
is the one that is not powered. The active slide tube is the one that has the
cylinder attached. If one side of the room fails to seal adjust as follows:
1. Loosen bolts (Fig. 11a) on top of the passive slide tube (Fig. 11b)
2. Push or pull room (on the passive side) to align with the active side.

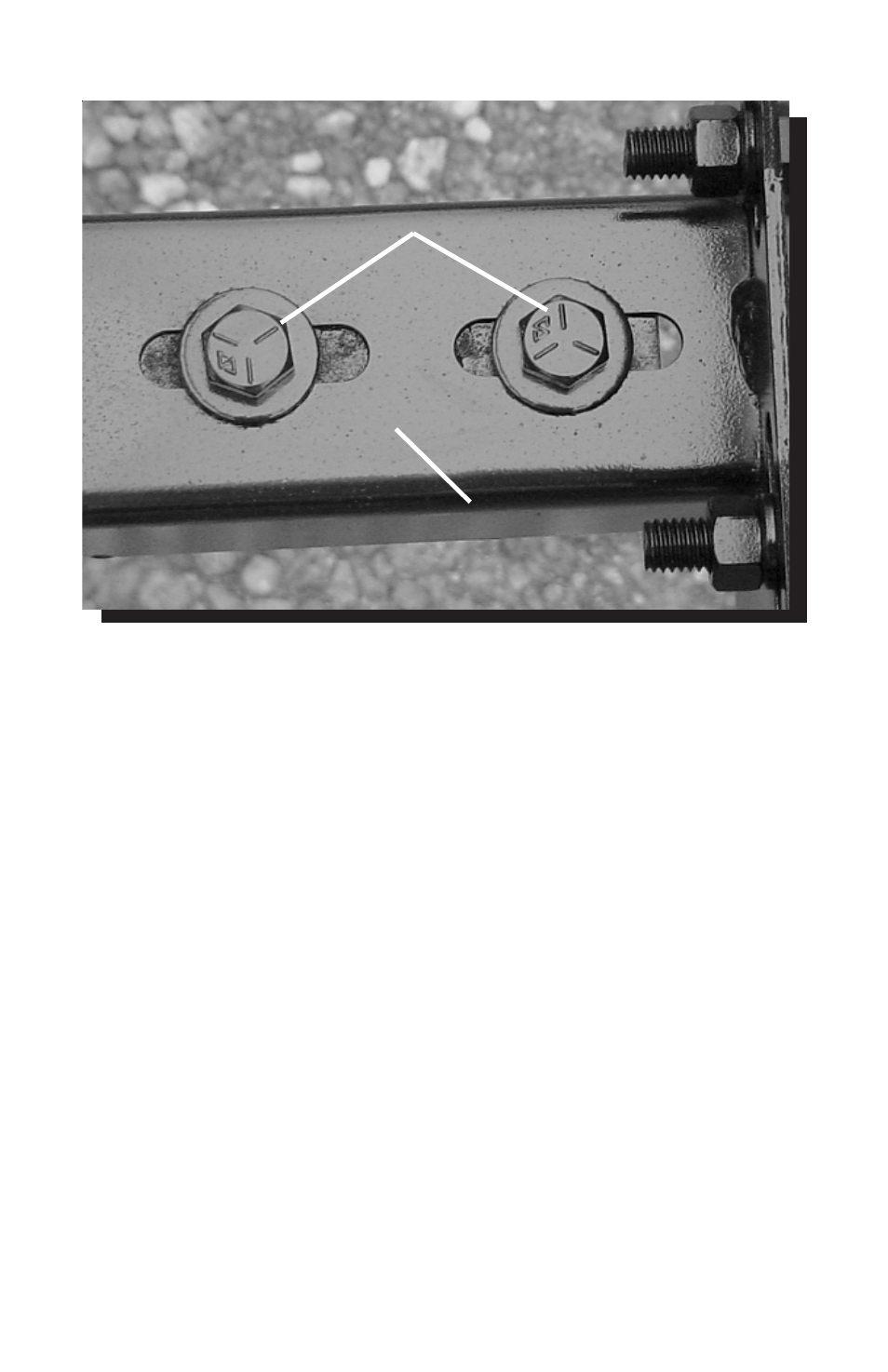

Fig. 11
11a
11b
