Level-Up® Motorhome Leveling Troubleshooting Guide
Introduction
The Level-Up ® Motorhome Leveling is a 4-point automatic leveling system. Jacks work in like-side pairs to
safely and quickly level the coach.
Components
A
B
C
D
F
G
H
J
I
K
E
Callout Description
A Up Arrow - Scrolls up through the menu on LCD.
B Down Arrow - Scrolls down through the menu on LCD.
C Enter - Activates modes and procedures indicated on LCD.
D Retract - Places leveling system into retract mode.
E LCD Display - Displays procedures and results.
F Auto Level - Places leveling system into auto level mode.
G Front Button - Extends only both front jacks in manual mode.
H Left Button - Extends only both left leveling jacks in manual mode.
I Right Button - Extends only both right leveling jacks in manual mode.
J Rear Button - Extends only both rear leveling jacks in manual mode.
K Power Button - Turns leveling system on and off.
Menu selections include (Only accessible using Up and Down Arrows):
1. Manual Mode - Allows for manual control.
2. Auto Retract - All hydraulic jacks.
NOTE: Auto Retract can also be engaged by pressing and holding the Retract button for 3 seconds.
3. Slope:
I. Front to back in degrees
II. Left to right in degrees
4. Battery Voltage

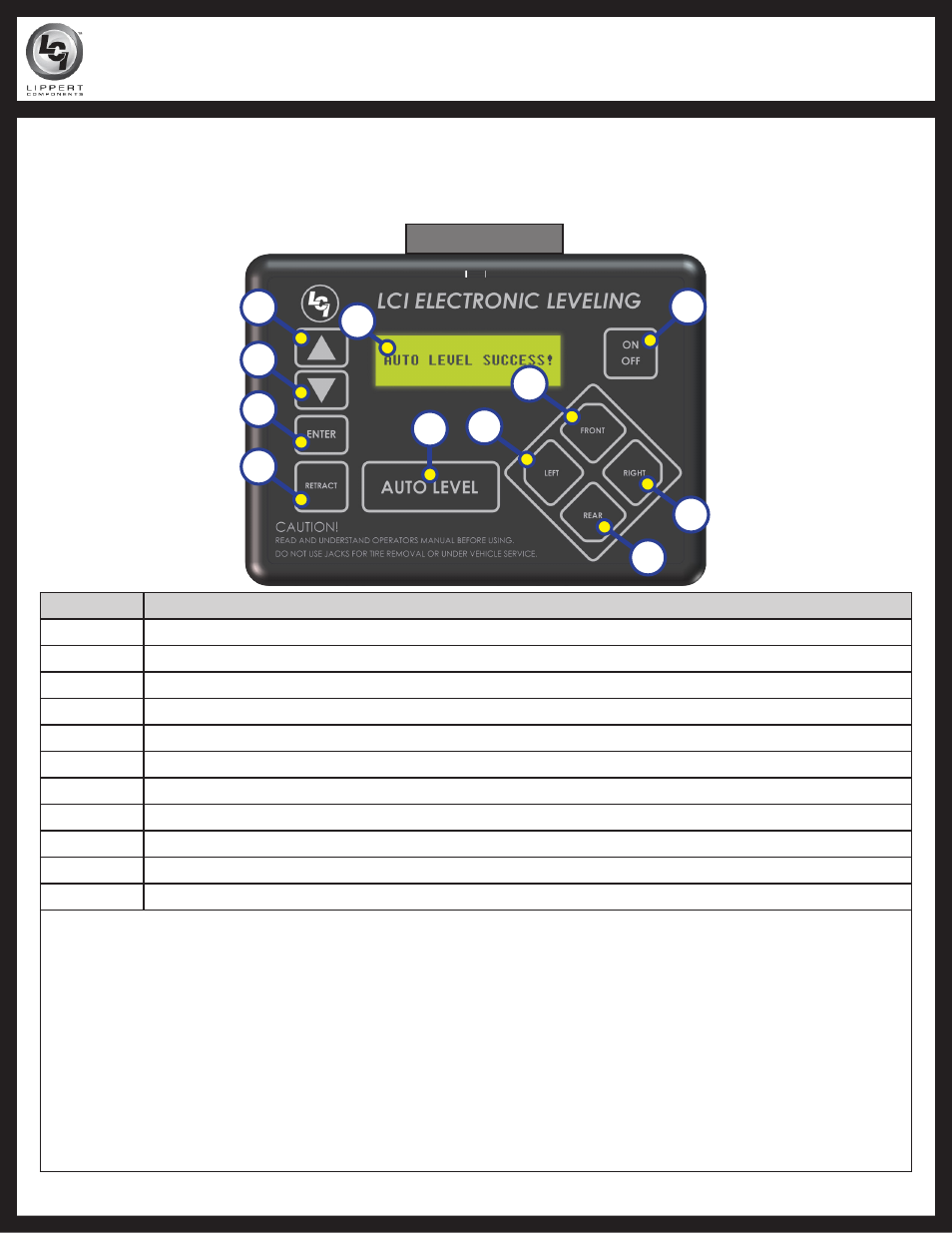

Fig. 1 - Touchpad
