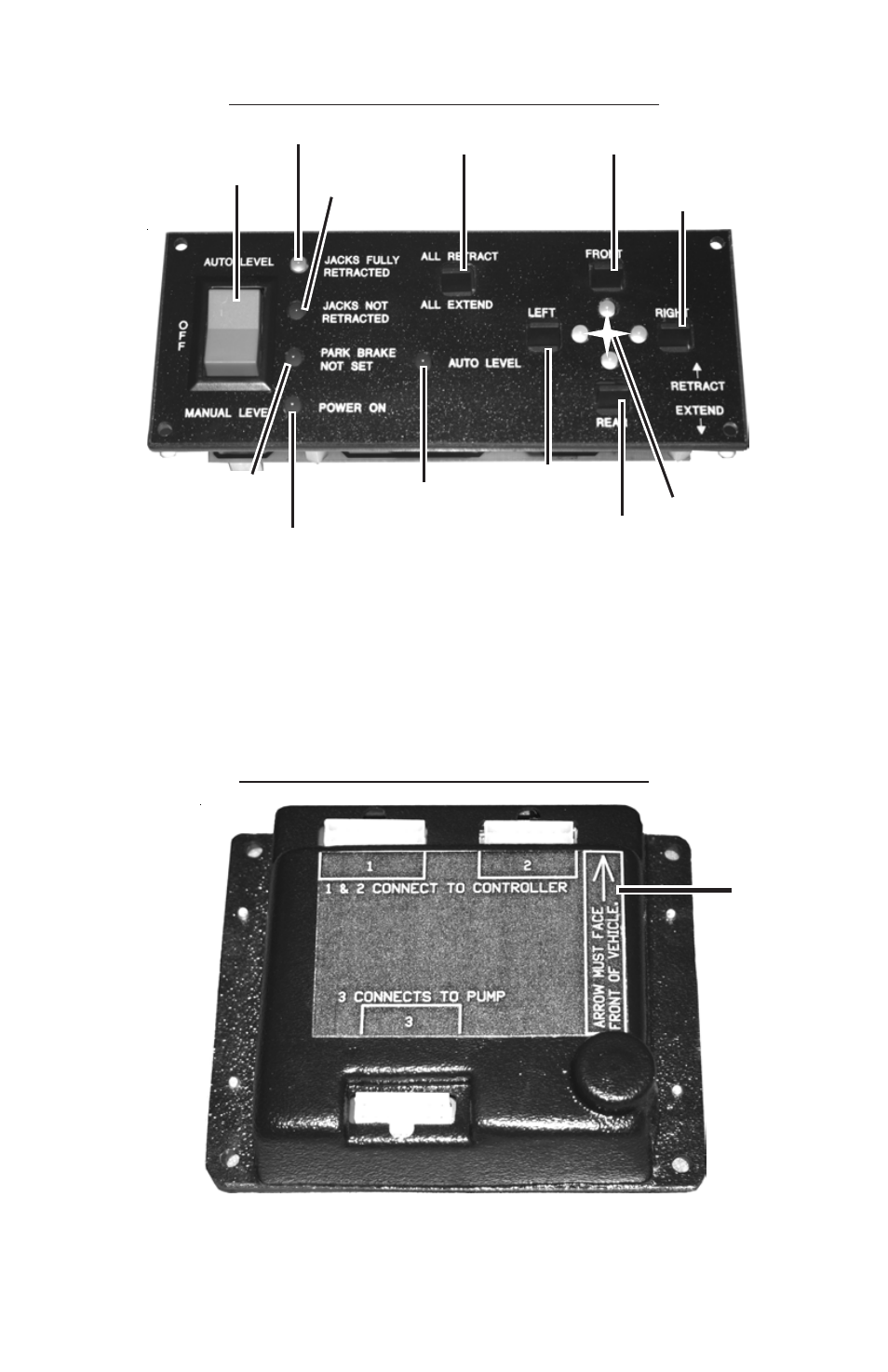

Automatic Leveling Control Panel

A

B

C

D

E

F

K

J

I

H

G

A - On/Off & Auto/Man. Oper. Switch
B - JACKS FULLY RETRACTED Light
C - JACKS NOT RETRACTED Light
D - ALL RETRACT/ALL EXTEND Switch
E - FRONT Jack Switch
F - RIGHT Jack Switch

G - PARK BRAKE NOT SET Light
H - POWER ON Light
I - AUTO LEVEL Indicator Light
J - LEFT Jack Switch
K - REAR Jack Switch
L - Level Indicator Lights

L

Automatic Leveling Control Box

Automatic Leveling Control Box is located up by the steering column on a level, horizontal
surface. Figure 2 shows Control Box in face up position. Control Box must be mounted
face-up and arrow must be pointed toward the front of the coach Fig. 2A.

Fig. 1

Fig. 2

A
