Rev: 01.30.2015 Page 7
Ground Control 3.0 OEM Installation Manual
Installation - Controller
NoTE: Prior to starting this portion of the installation, double check that all of the harnesses are properly
and securely connected to the rear jacks, landing gear, and rear sensor.

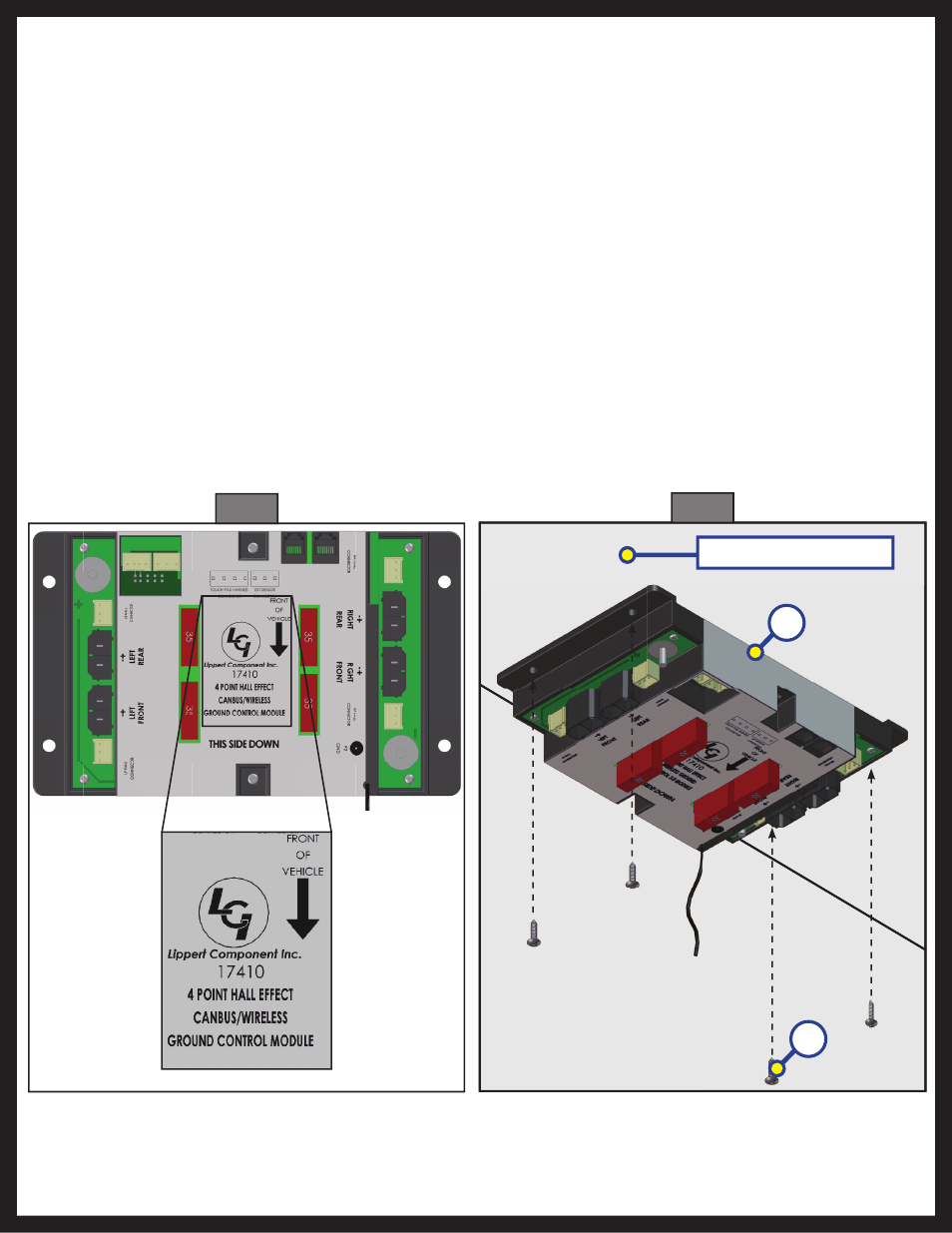

1. Measure the ceiling of the compartment where the controller will be placed and mark the center point
on the ceiling. The controller MUST be positioned directly in the center of the unit with the arrow on
the label of the controller facing the front of the unit (Fig. 7).
NoTE: Some 6-point controllers do not have orientation arrows for the front of the unit. When installing
those controllers, ensure that the port labeled "LEFT FRONT" is pointing to the left-hand front of the
unit. This will ensure proper orientation and function of the controller.
2. Using four #8 x 1” wood screws (Fig. 8B), attach the controller (Fig. 8A) to the ceiling of the
compartment, centered over the marked centerline of the compartment.
3. Attach the power and ground harnesses to the corresponding posts on the controller and then
connect them to the correct posts on the house battery.
4. Connect all jack harnesses to the appropriate connectors on the controller.
Compartment Ceiling
A
B
Fig. 7 Fig. 8
