Rev: 02.11.2014 Touch Audio Elite Owners Manual
Page 4 of 12
Wiring Diagram
The unit is designed for 12V DC with a negative ground. The sub woofer and automatic antenna have a separate
power supply. Be sure to connect the color coded wires according to the wiring diagram. Incorrect connections
can cause the unit to malfunction or damage the vehicle's electronic systems. Be sure to connect the speaker (-) to
speaker (-) terminal. Never connect the left and right channel speaker cables to the wrong side or to the vehicle's
body. To avoid overheating do not block vents or radiating panel.
A
B
C
Q
P
O
N
M
L
K
D
E
F
G
H
I
J

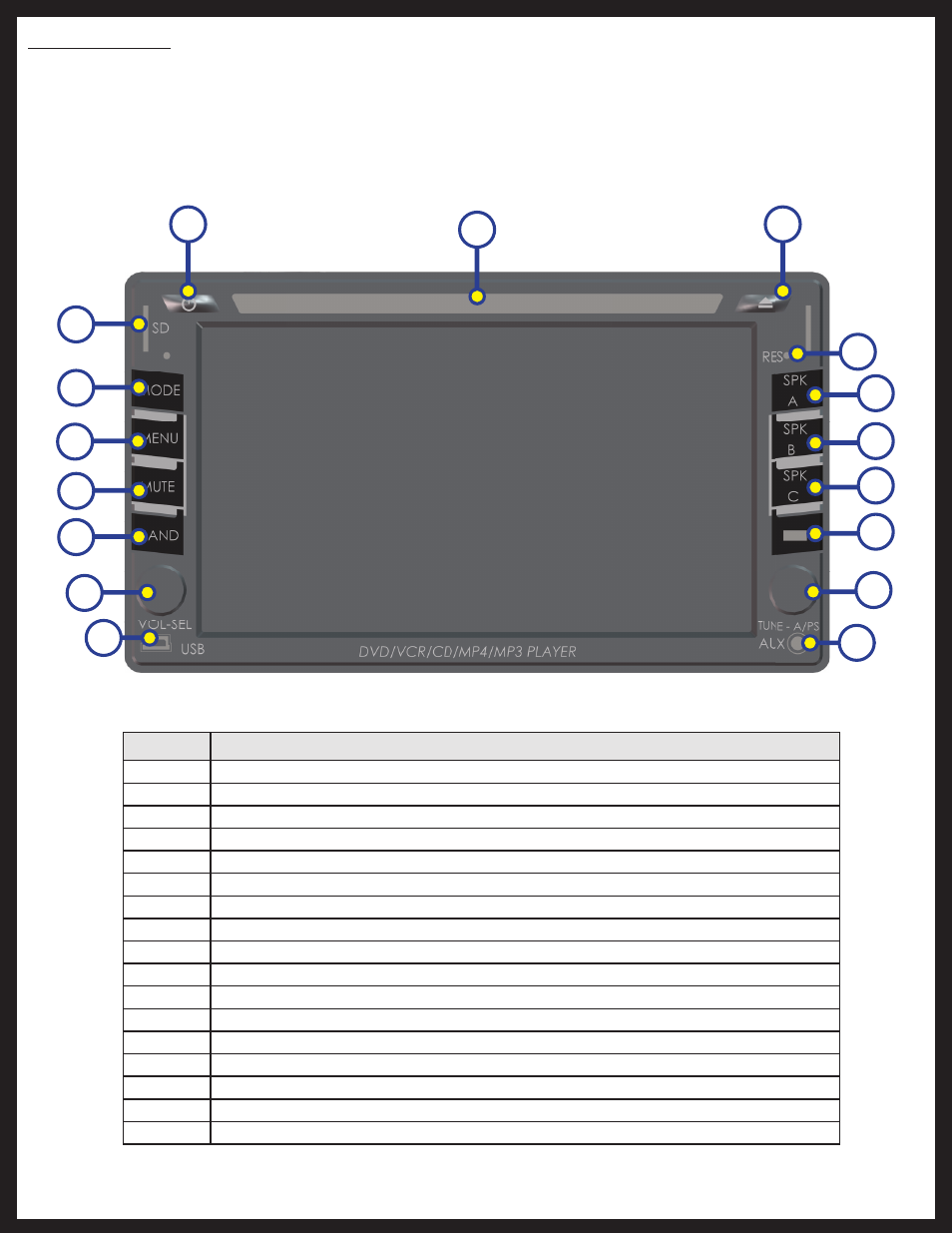

Callout Description
A Power
B Disc Slot
C Eject Button
D Reset Button
E SPK A Button
F SPK B Button
G SPK C Button
H Remote Sensor
I Tune Dial
J Aux Audio/ AV IN Jack
K USB Jack
L Volume Dial
M Band Button
N Mute Button
O Menu Button
P Mode Button
Q SD Card Jack
