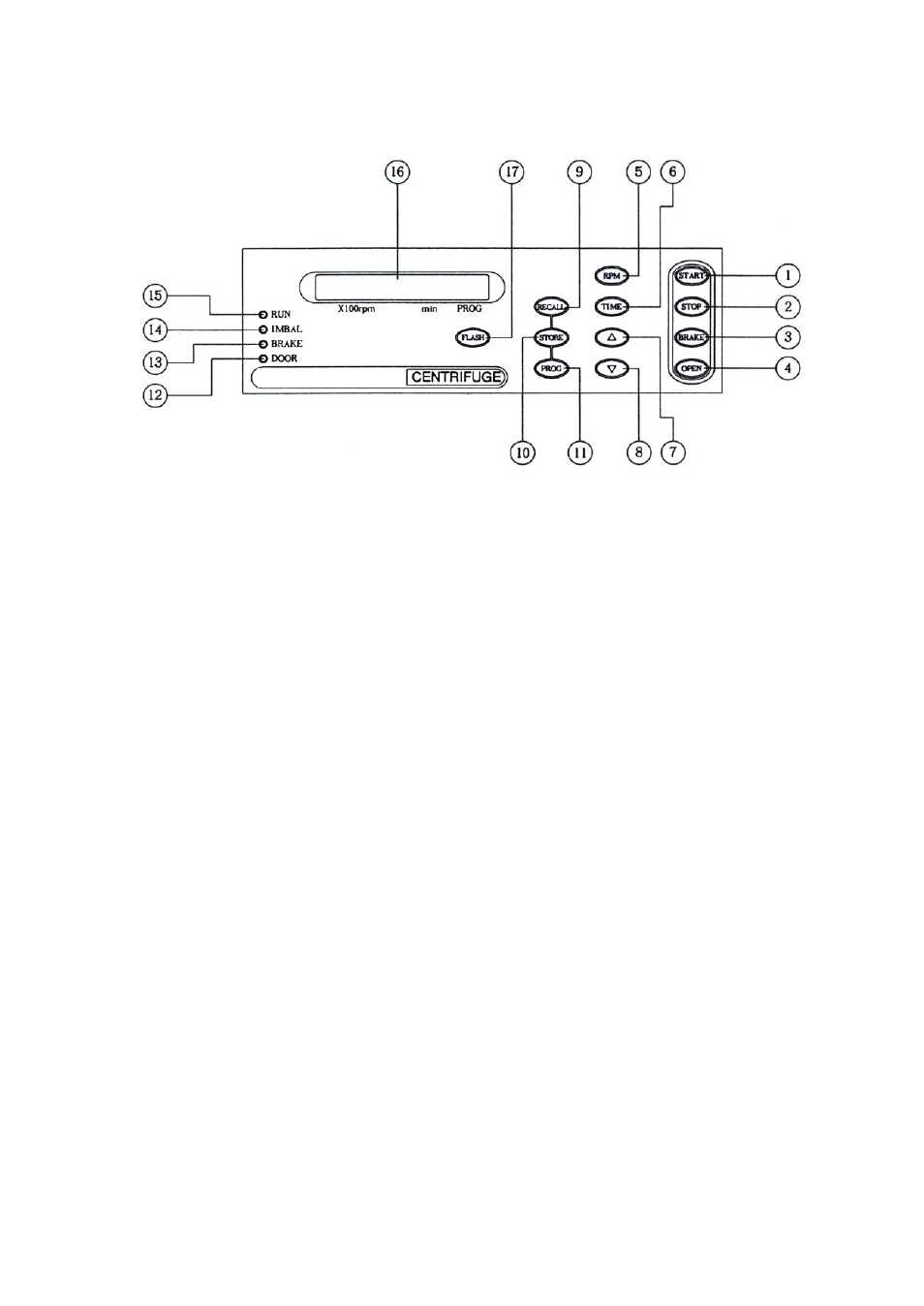

4. Operation Panel:
(01) START: After setting time and speed, press it and rotor rotates immediately. .
(02) STOP: For emergency stop.
(03) BRAKE: It is with auto-braking function, when presetting time is due.
(04) OPEN: It is used at speed under 100rpm.
(05) RPM: Press【RPM】(flash), adjust ▲ or ▼ then press “RPM” to finish it.
(06) TIME: Press【TIME】(flash), adjust ▲ or ▼ then press “TIME” to finish it.
(07) ▲ INCREASE: to add speed or time.
(08) ▼ DECREASE: to reduce speed or time.
(09) RECALL: to display settled speed and time.
(10) STORE: to remember settled speed and time.
After setting speed and time, press【STORE】twice. If you need presetting function,
press 【STORE】first then press【PROG】to select demand figure then press【STORE】.
(11) PROG: to display speed and time.
Press【RECALL】(flash) then press “PROG” to select demand figure, then press
【RECALL】again to confirm.
(12) DOOR LAMP: when cover is open, it lights up.
(13) BRAKE LAMP: when it lights up, it will decrease speed automatically.
(14) IMBAL: when it lights up, it is imbalanced on rotor and stop running. You have to
press【OPEN】to open cover and check problem.
(15) RUN: it lights up during rotation.
(16) DISPLAY: to show speed, time and settled figure.
(17) Transient centrifugal function: it can reach specified speed in transient time without
speed and time limited.
