7. Machine
Check:
a. Check motor brush and PC board: please open cover then dismantle rotor and loosen
5 screws at the baseboard and take apart the body and baseboard. Then you can
check both easily.
b.

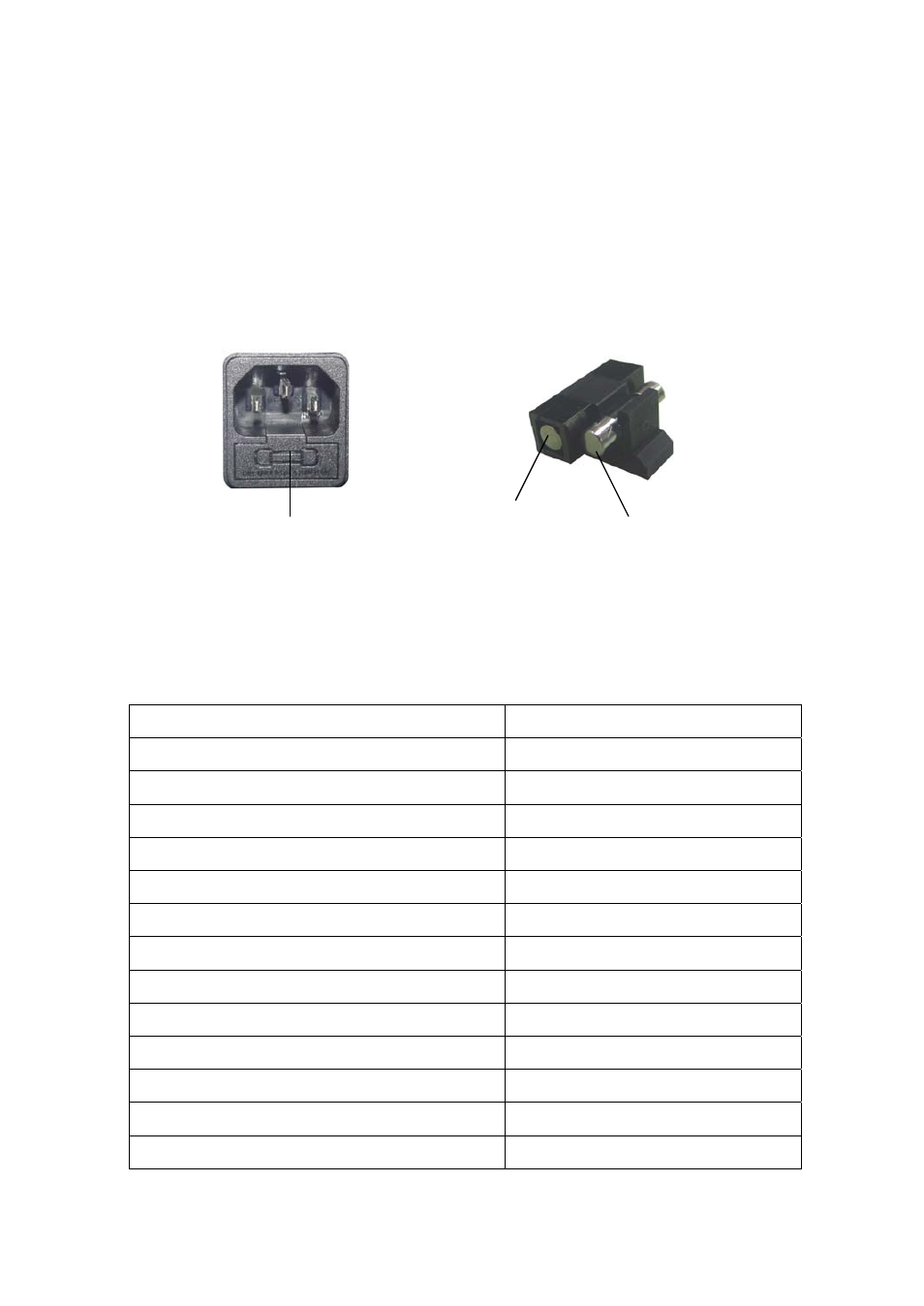

Fuse is under the power plug, please take off power cord and use “一” type of screw
driver to open it then check if fuse burnt or not. There is one reserved fuse available
attached inside .
Reserved fuse
Fuse position
Fuse in use
(Ⅵ)
PARTS LIST
ITEMS QUANTITY
MOTOR 1
ROTOR 1
SPEED SENSOR
1
CARBON BRUSH
2
PC BOARD
1
KEY BOARD
1
FILTER CAPACITY
1
BRAKE RESISTANCE
1
POWER SWITCH
1
SOLENOID 1
FUSE 6A
2
LID MICRO SWITCH
1
TRANSFORMER 1
