Page 20: Description
Rev. 00
GW2045 – GW1060 Manual
Pag. 19 di 43

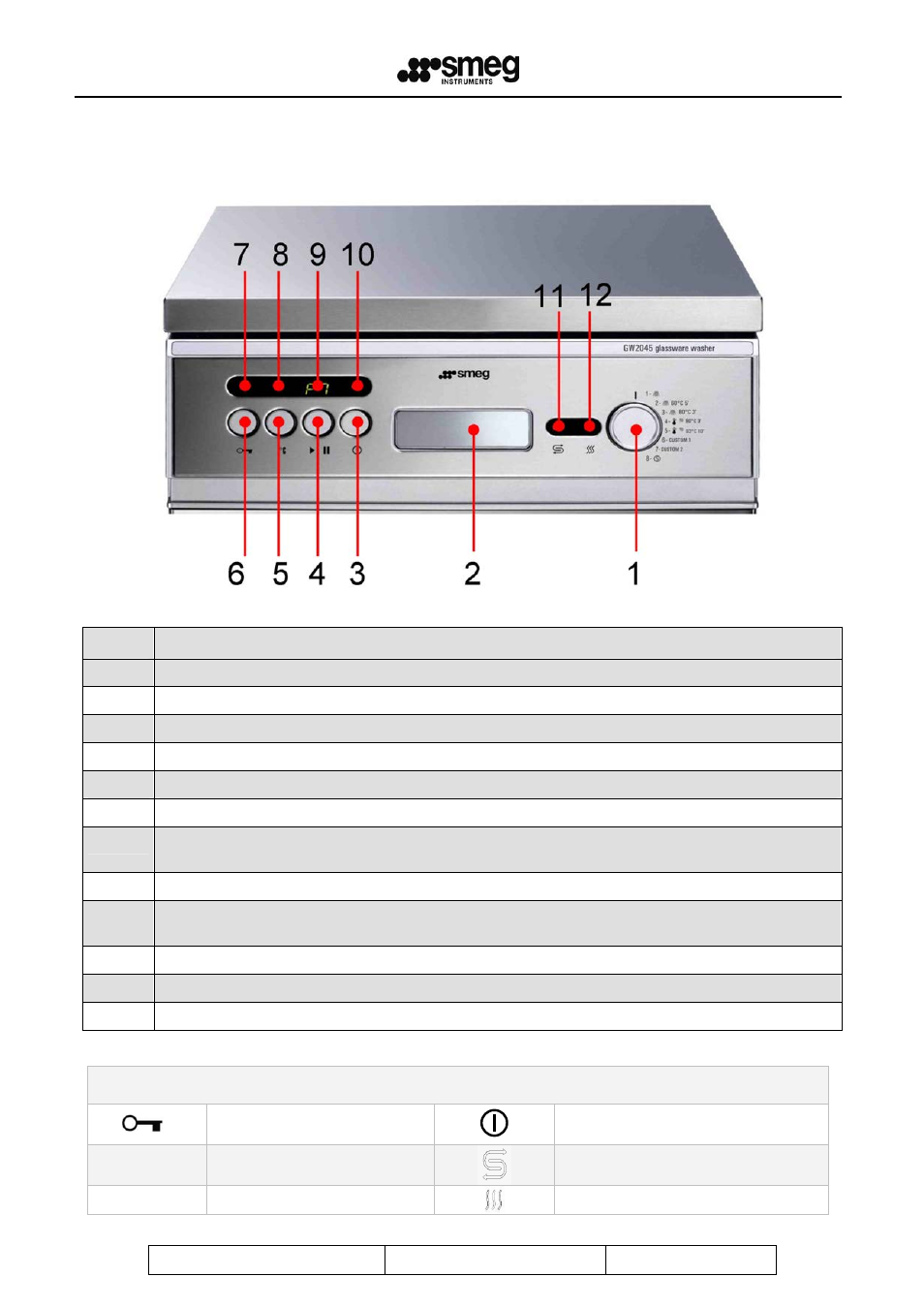

6. DESCRIPTION OF CONTROLS
6.1. MAIN
PANEL
All the controls and indicators of the glassware washer are positioned on the front panel.
ID
DESCRIPTION
1
WASHING PROGRAMME SELECTOR
2
RECESSED HANDLE TO OPEN the DOOR
3
ON/OFF KEY
4
START/PAUSE KEY
5
TEMPERATURE DISPLAY KEY
6
DOOR UNLOCKING KEY
7
DEMINERALISED WATER ATTACHMENT LIGHT (turned on if demineralised water attachment
active)
8
TEMPERATURE DISPLAY INDICATOR LIGHT
9
CYCLE INFORMATION DISPLAY (alternates programme/temperature, if light 8 is active, with
programme/phase, if light 8 is turned off)
10
“POWER ON” INDICATOR LIGHT
11
“LACK OF SALT” INDICATOR LIGHT
12
"HEATING ON" INDICATOR LIGHT
SIGNS ON THE FRONT OF THE MACHINE
Door unlocking
ON / OFF
°C
Temperature
Salt Lack
► ll
START / PAUSE
Heating element on
