Pennant Pool Heater Page 5

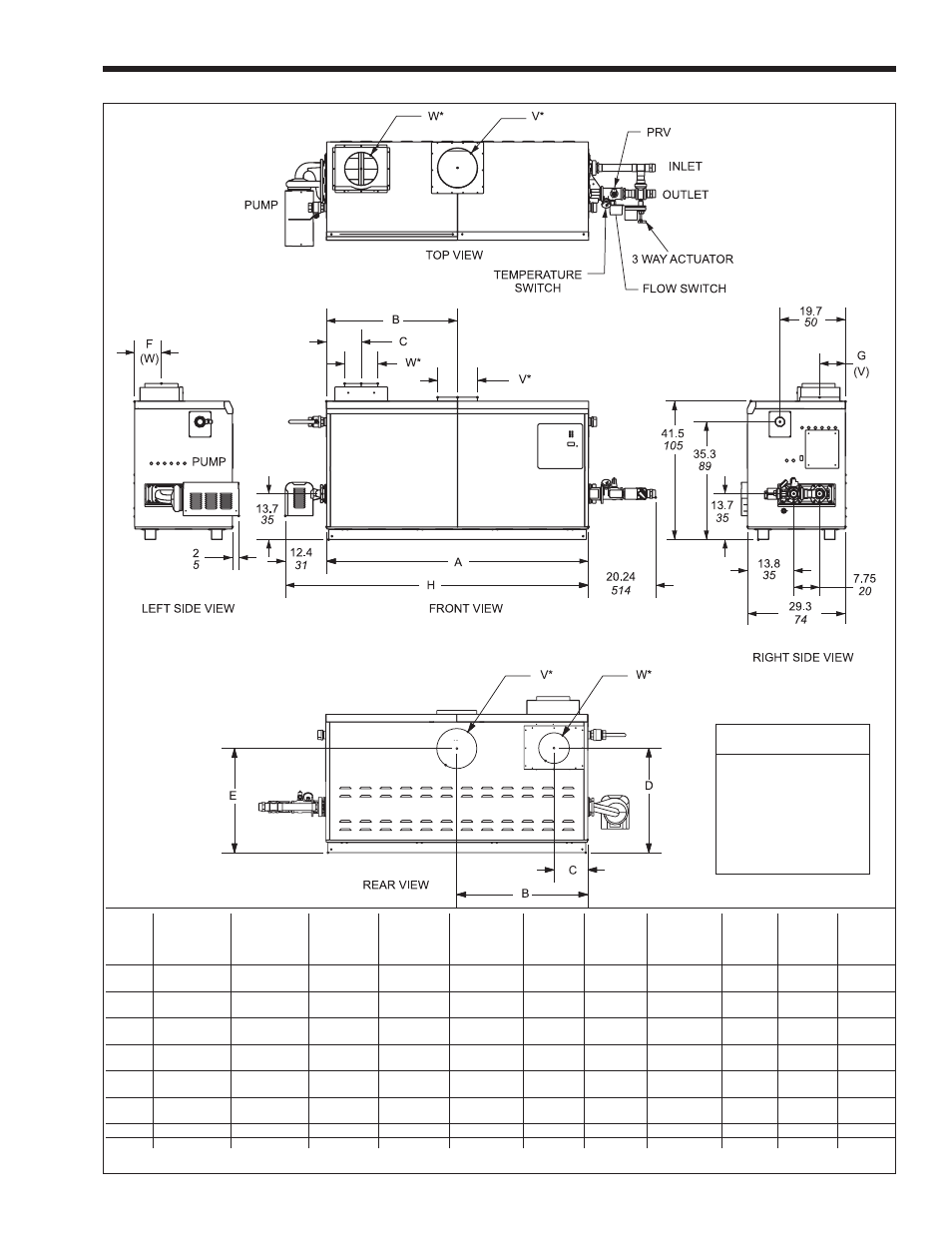

Figure 1. Dimensional Data.
AIR VENT HORIZ.
CONN. CONN. VENT
SIZE A B C D E F G H W* V* PIPE
500 33½ 85 15¾ 40 5¾ 15 29¾ 76 32¾ 83 7¾ 20 8¾ 22 46 117 6 15 8 20 6 15
750 45½ 116 21¾ 55 5¾ 15 29¾ 76 32¾ 83 7¾ 20 8¾ 22 58 147 6 15 10 25 8 20
1000 57½ 146 28¾ 73 5¾ 15 29¾ 76 32¾ 83 7¾ 20 7 18 70 178 8 20 10 25 8 20
1250 68 172 34 86 10 1 /
8
26 30¾ 78 29½ 75 8¾ 22 8¾ 22 80 203 8 20 12 30 8 20
1500 78½ 199 39¾ 101 10 1 /
8
26 30¾ 78 29½ 75 8¾ 22 8¾ 22 91 231 8 20 12 30 8 20
1750 89 226 44½ 113 10 1 /
8
26 30¾ 78 29½ 75 8¾ 22 8¾ 22 101 256 8 20 14 36 8 20
2000 99½ 253 49¾ 126 10 1 /
8
26 30¾ 78 29½ 75 8¾ 22 8¾ 22 112 284 12 30 14 36 12 30
*Air and vent connections may be on top or back of the Pennant, and are field convertible. Dimensions in inches cm.
Shipping Weight
Size lbs. kg
500 480 218
750 560 254
1000 670 304
1250 730 331
1500 815 370
1750 880 400
Dimensions shown in
inches cm
