2.0 Enclosure Mounting
The easiest method for marking the location of the mounting holes for drilling is to hold the
enclosure against the mounting surface and then use a pencil to mark the mounting hole locations
against the surface to which the enclosure is to be mounted. If this is not practical, Figure 2 is a
layout drawing of the mounting hole locations.
NOTE: Figure 2 provides the measurements for the mounting hole locations. Figure 2 is not an
actual size drawing and cannot be used as a drilling template.

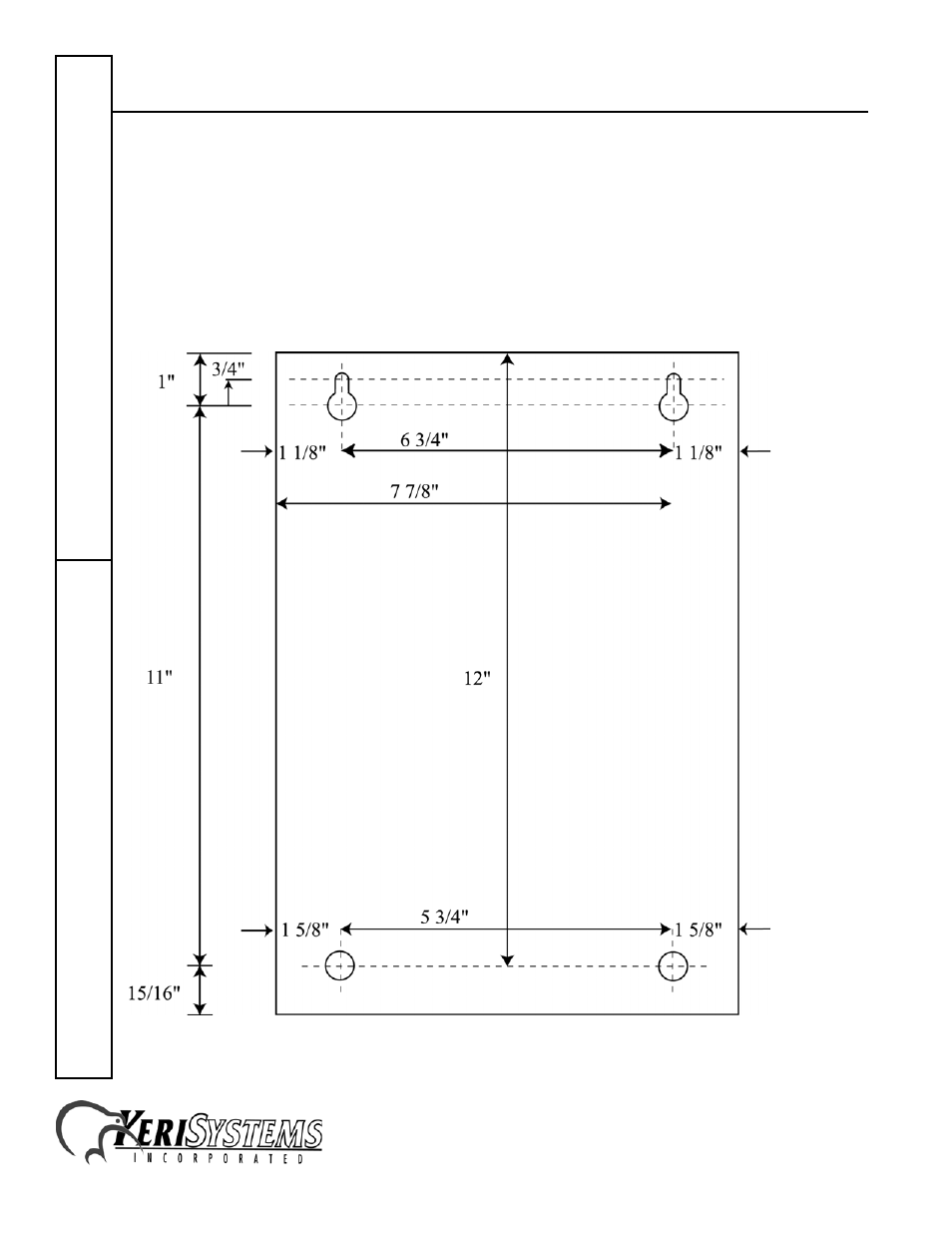

Figure 2: Enclosure Mounting Holes
