2
WARNING: IT IS STRONGLY RECOMMENDED THAT YOU PERIODICALLY CHECK ALL BOLTS FOR PROPER TORQUE!!!
Tools/Items Required:
 Metric Allen Set (5/6 mm for the top cap bolt, 3 mm for the pivot bolt, and 2 mm for the insert bolts)
 Torque wrench
 **GARMIN Forerunner® Quick Release Kit (required for Forerunner® 310XT and 910XT owners)**

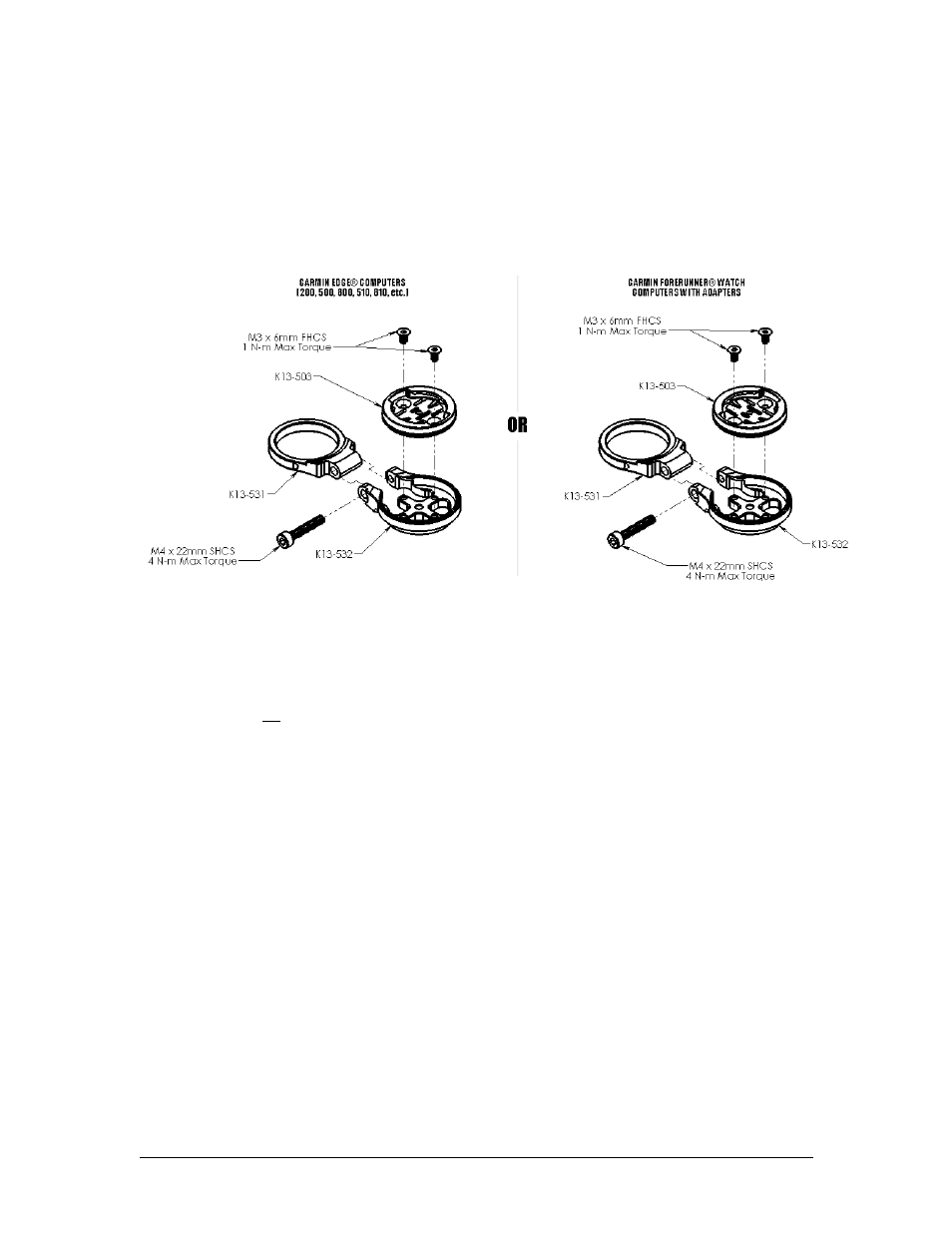

Mount Installation:
1. Ensure the stem and handlebars are installed, aligned, and torqued according to manufacturer’s recommendations.
2. Remove the top cap:

IF A SPACER IS PRESENT ABOVE THE STEM, replace the spacer with the K13-530.

IF NO SPACER IS PRESENT ABOVE THE STEM, visually confirm adequate bolt thread length for the
addition of a 5mm thickness of the mount.
3. Install the mount on top of the stem.
4. Install, but do not fully tighten, the top cap.
5. Set the mount to your desired position
6. Carefully tighten the top cap bolt according to manufacturer’s recommendations for the headset.
7. IF you will be using a GARMIN Forerunner® 310XT and 910XT please proceed to "Insert Adjustment", otherwise
installation is complete.
