K-Edge K13-201 User Manual
Page 3
5.

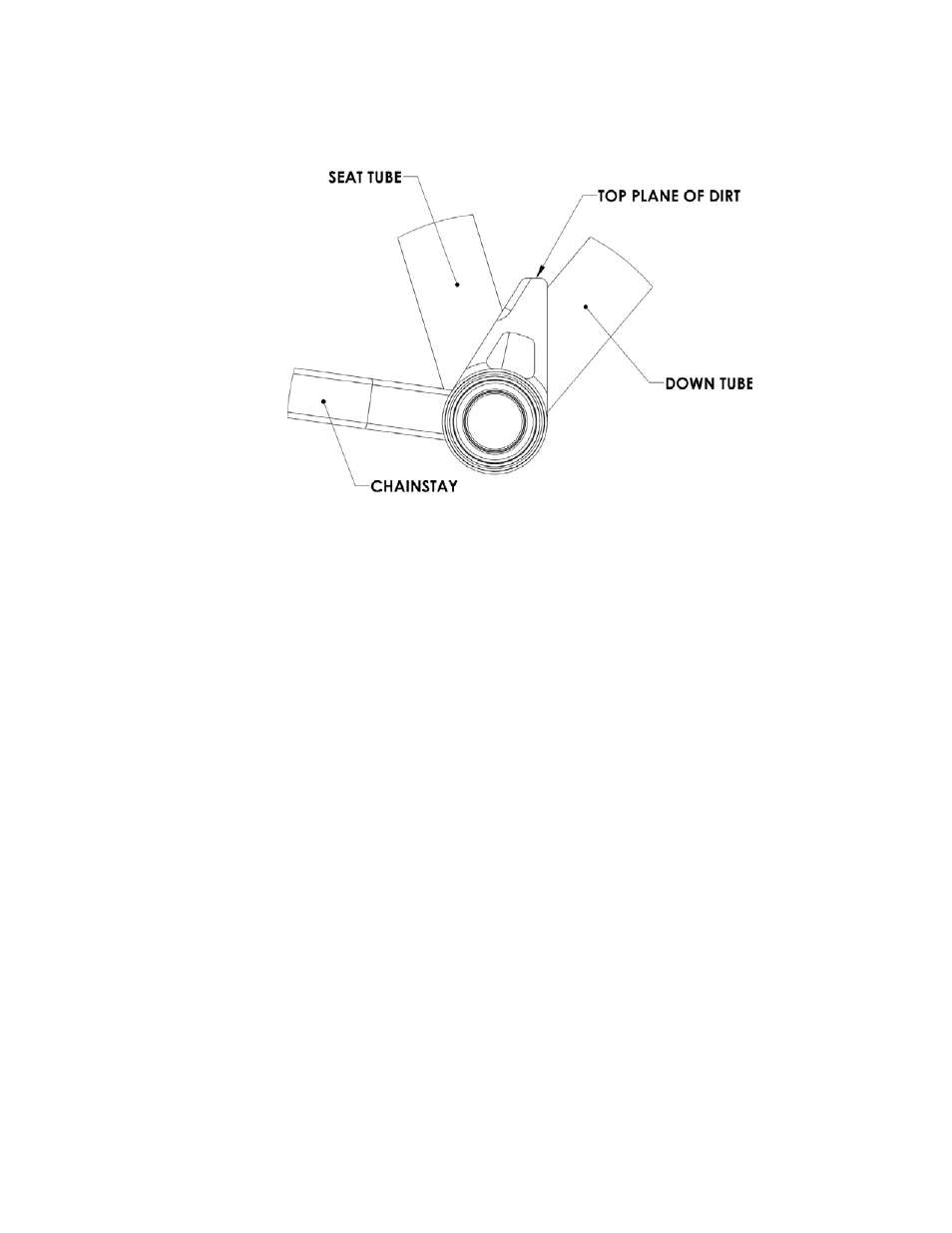

Position the Dirt 3 angle either halfway between down-tube and seat-tube of frame OR to where the top plane of the pad is
parallel to the ground when the bike is on its wheels. See image below:
6.
Check to ensure clearance between front derailleur cage and Dirt 3 and adjust accordingly.
7.
Torque the driveside (right side) bottom bracket cup per manufacturer's recommendations while maintaining the angle of the
Dirt 3.
8.
Adjust position as close as possible (without touching/rubbing) to the chain while on the smallest chainring and largest cog, the
default position for the Dirt 3.
9.
Check that all components are secure and ride.
