Parts Included:
 K13-201:

1x Dirt 3 Chain Catcher
Tools/Items Required:
 Manufacturer's Instructions with torque specs for Crankset and Bottom Bracket
 Bottom Bracket Tool
 Torque Wrench
Installation Steps:
1. Remove crankset per manufacturer's recommendations.
2. Remove driveside (right side) bottom bracket cup.

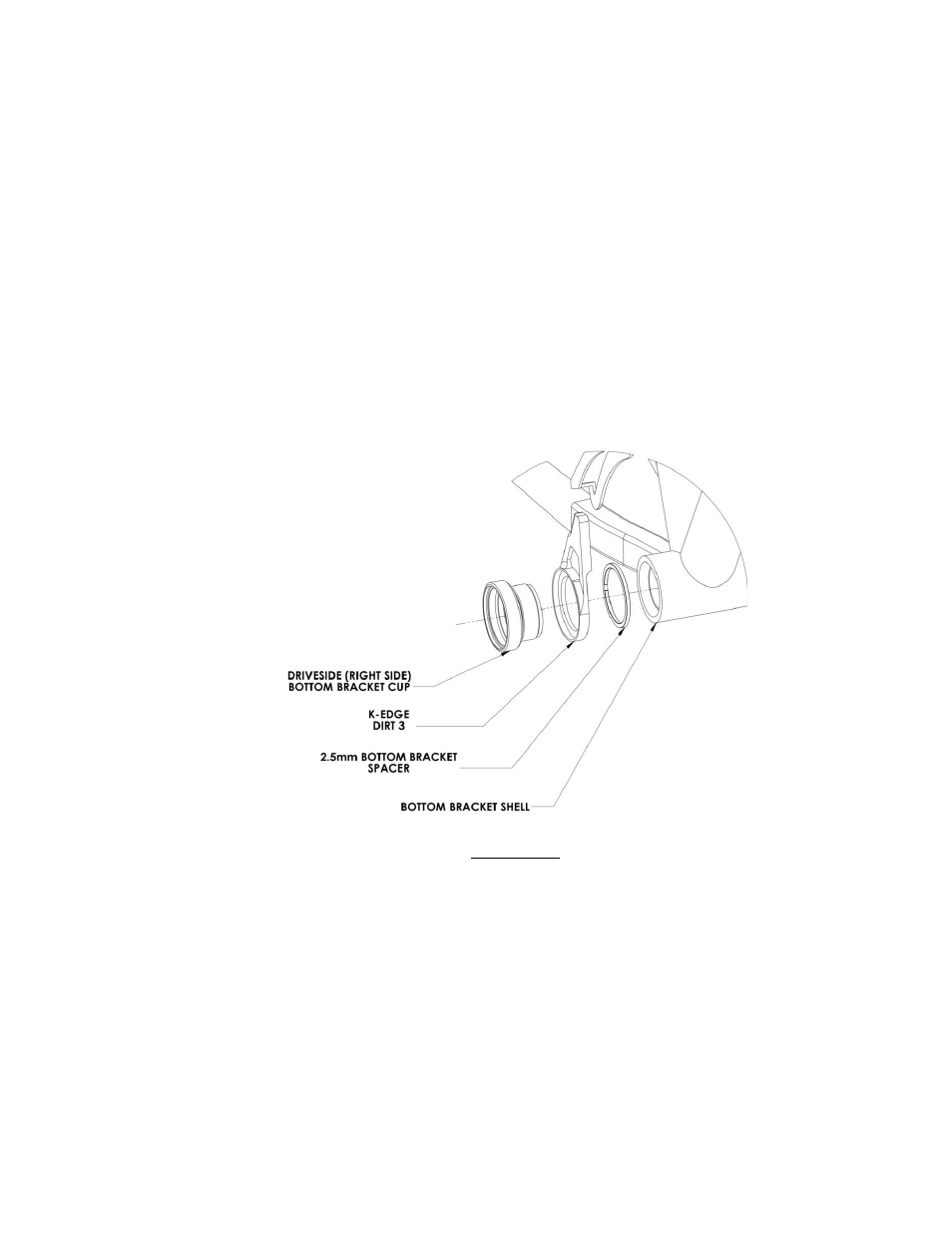

3. Replace 2.5mm spacer (normally reserved for an 'E-Type' front derailleur) with the Dirt 3. Install components
in accordance to the image below:
4. Reinstall driveside (right side) bottom bracket cup and hand-tighten only.
