POWER DOOR LOCK WIRING

3 PIN DOOR LOCK PLUG:
PIN 1: GREEN:
(-) Negative pulse for LOCK
PIN 2: RED: +12V Coil Power for external relays TERM 86.
PIN 3: BLUE: (-) Negative pulse for UNLOCK

COMMON DOOR LOCK TYPES:
Negative Trigger (-):
Many Imports, Late Model Ford & General Motors
Positive Trigger (+): Many GM, Chrysler/Dodge/Plymouth models:
Reverse Polarity: Many Ford/Lincoln/Mercury, Dodge/Chrysler/Plymouth,

and some GM Full-size Trucks

Single Wire Systems: Late /Chrysler/Dodge/Plymouth models:

95-UP Stratus, Cirrus, Breeze, 96-UP Caravan
Voyager, Town & Country; 90-97 Ford Probe; Mazda

Semi Automatic: Older Saab and Volvo, Isuzu, Hyundai
Electric Vacuum: Many mid 1980’s through mid 1990’s European makes


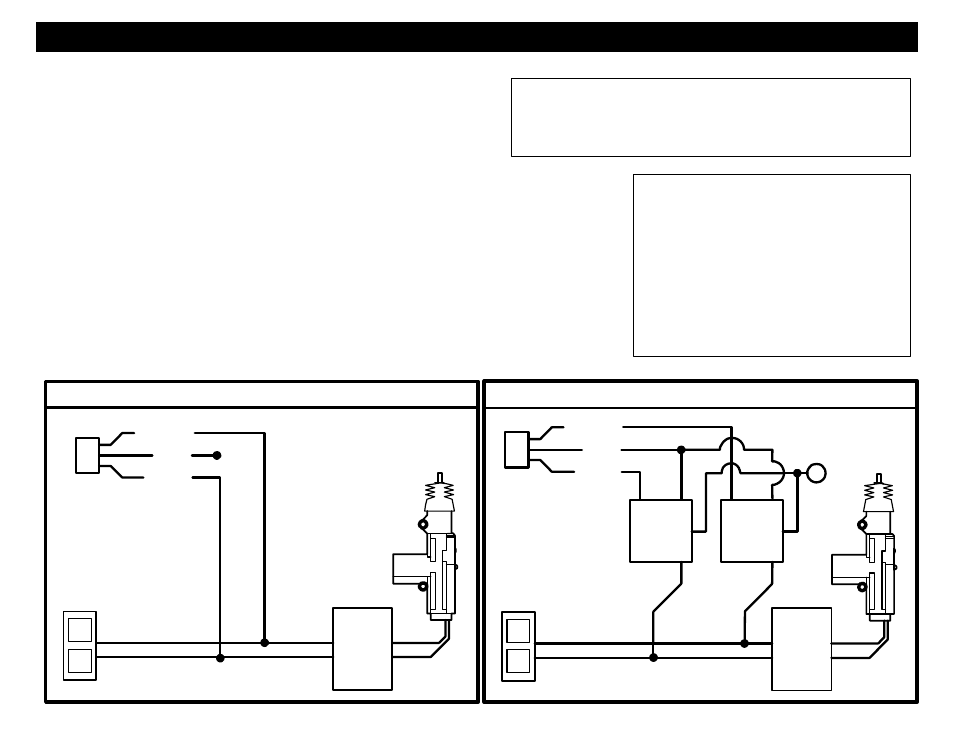

NEGATIVE TRIGGER DOORLOCK WIRING

POSITIVE TRIGGER DOORLOCK WIRING

GREEN

GREEN

FUSED

RED

+12V

RED

BLUE

+

BLUE

86

85

86

85

87

87

30

87A

30

87A

FACTORY

FACTORY

L

L

POWER

POWER

LOCKING

LOCKING

UL

UL

RELAYS

RELAYS

Crimestopper Doorlock Accessories:
CS-6600DLM:
Dual-relay plug-in
module for Reverse Polarity, Positive,
or Aftermarket Motors.
CS-6500DLI: Plug-in pulse inverter that
converts the Negative outputs of the
system to Positive type for Positive
Door Lock systems.
CS-610S1: Aftermarket door lock
actuator (motor).

DETERMINING DOOR LOCK TYPE: We recommend
determining the type of locking system the vehicle has before
connecting any wires. Incorrect connection will result in
damage to the remote start and/or vehicle locking system.
