Page 4
WIRING INSTRUCTIONS

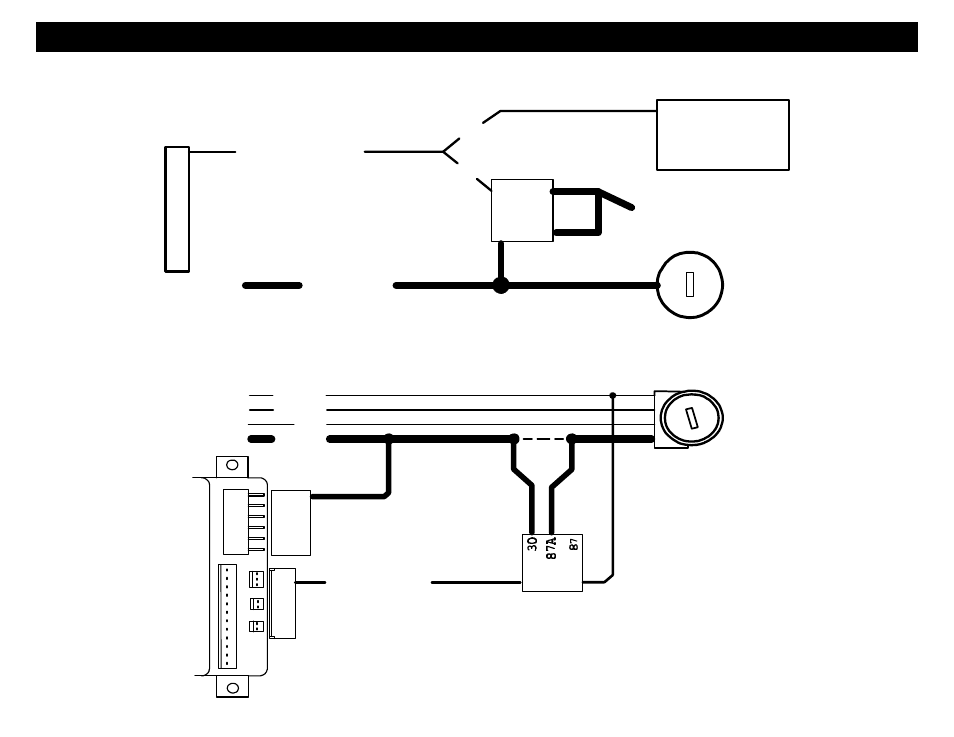

PIN 4: YELLOW/BLACK FOR NEGATIVE IGNITION OUTPUT:
YELLOW/BLACK
85
86
30
87
3rd IGN
(If needed)
IGN SW.
OR
ANTI-THEFT/
MODULE
+12V CONSTANT
OR
TRANSPONDER
PIN 4: YELLOW/BLACK: FOR ANTI-GRIND/STARTER DISABLE OUTPUT: (Relay not included)
TO
IGN 2
MOTOR
ACC
START
CUT
BROWN
YELLOW/BLACK
86
85
MAKE CERTAIN TO CONNECT "BROWN" START OUTPUT WIRE TO
MOTOR SIDE OF ANTI-GRIND/START DISABLE RELAY.
IGN 1
