Control Panel (6)
Refer to section 2.2 Operation Panel.
DC jack
(7)
Connect Charger for recharging battery.
MSR Slot (Optional)
(8)
Swipe magnetic stripe.
IC Card Slot (Optional)
(9)
Insert IC card.

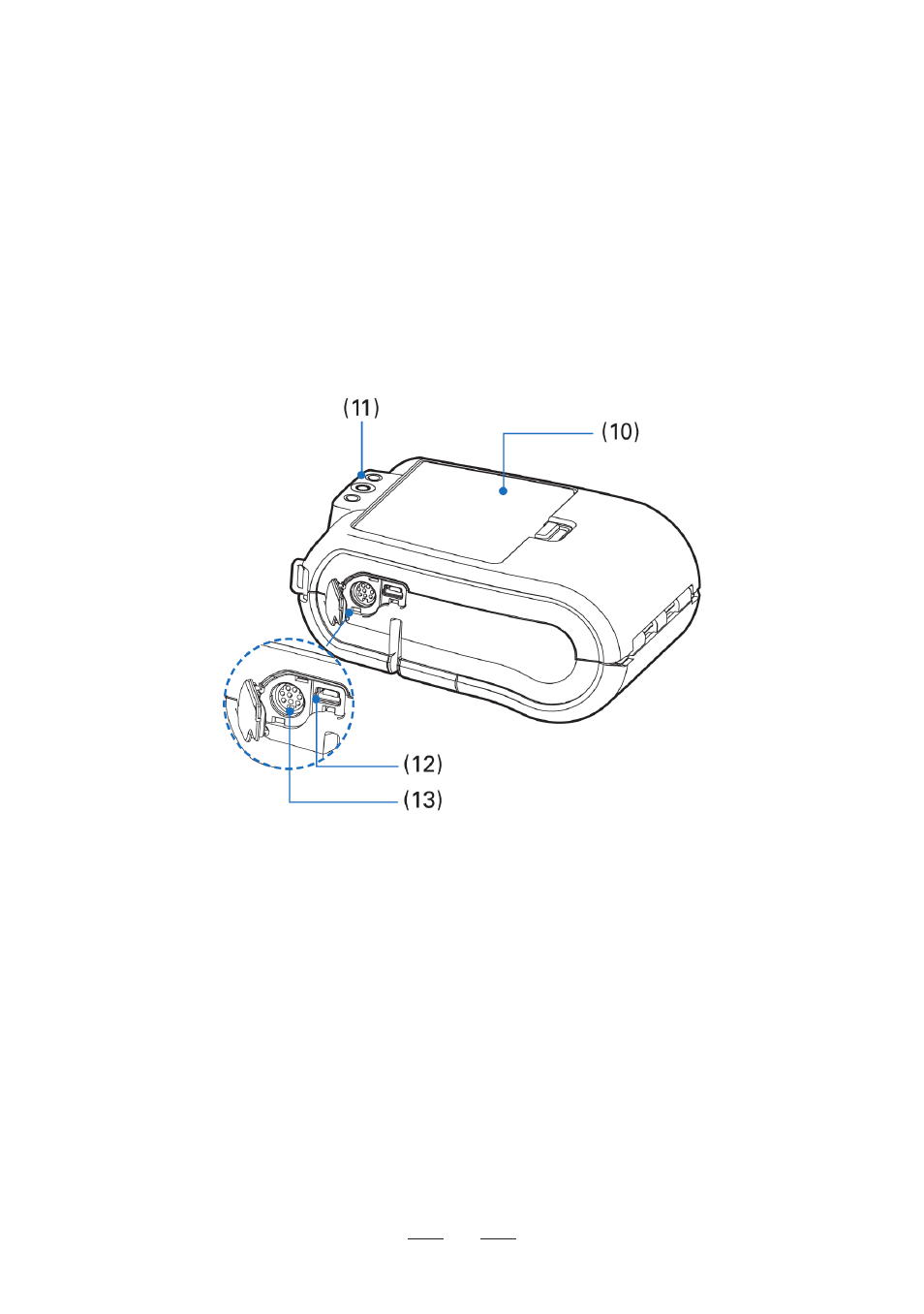

Battery (10)
Refer to section 3.3 Installing Battery to 3.5 Removing Battery
(with Belt Clip).
Belt Clip Hole
(11)
Refer to section 3.2 Installing Belt Clip.
USB Port (Mini B connector)
(12)
For USB cable connection to host.
Serial port
(13)
For serial cable connection to host.
