15
20

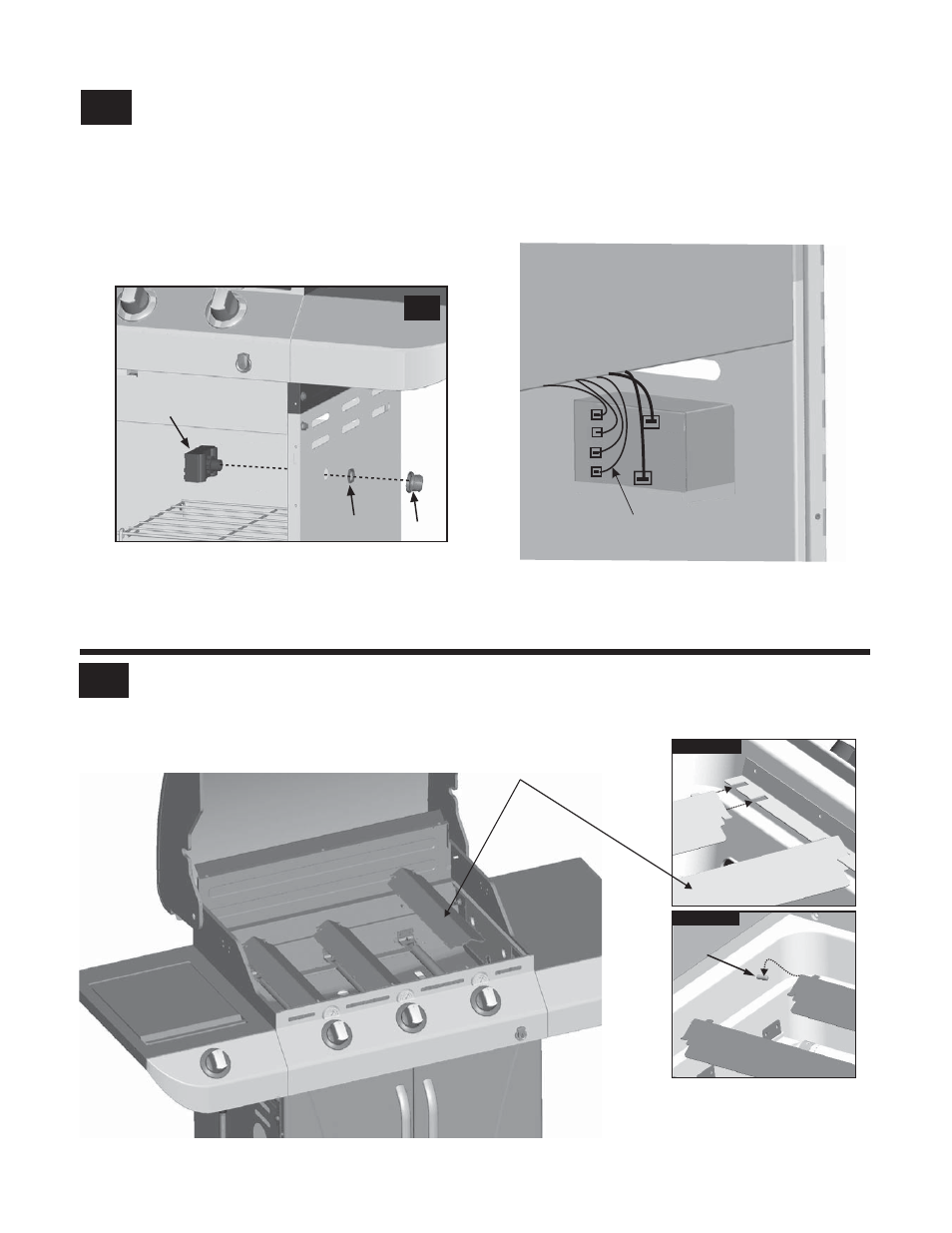

Install flame tamers by sliding one end of each flame tamer into slots at front of firebox and resting opposite end on pins in
back of firebox.
Back of firebox
Front of firebox
Note: Some parts omitted for
clarity of illustration
Flame tamers
Pin
14
Connect each of the wires from the main burner electrodes, and sideburner electrode into the back of the Electronic Ignition
Module.
T otal (4) connections.
Connect the two wires(A and B) from the switch wiring harness into the back of the Electronic Ignition Module.
NOTE: Switch terminals are larger than electrode terminals and should only be installed in location shown as A,B.
Wire
1
4
3
2
A
B
Total (2) connections.
Release the cap and nut from electronic ignition module. Attach electronic ignition module to the cart right side panel with
the nut and cap, shown A.
ignition module
Electronic
Right side panel
A
Cap Nut
