13

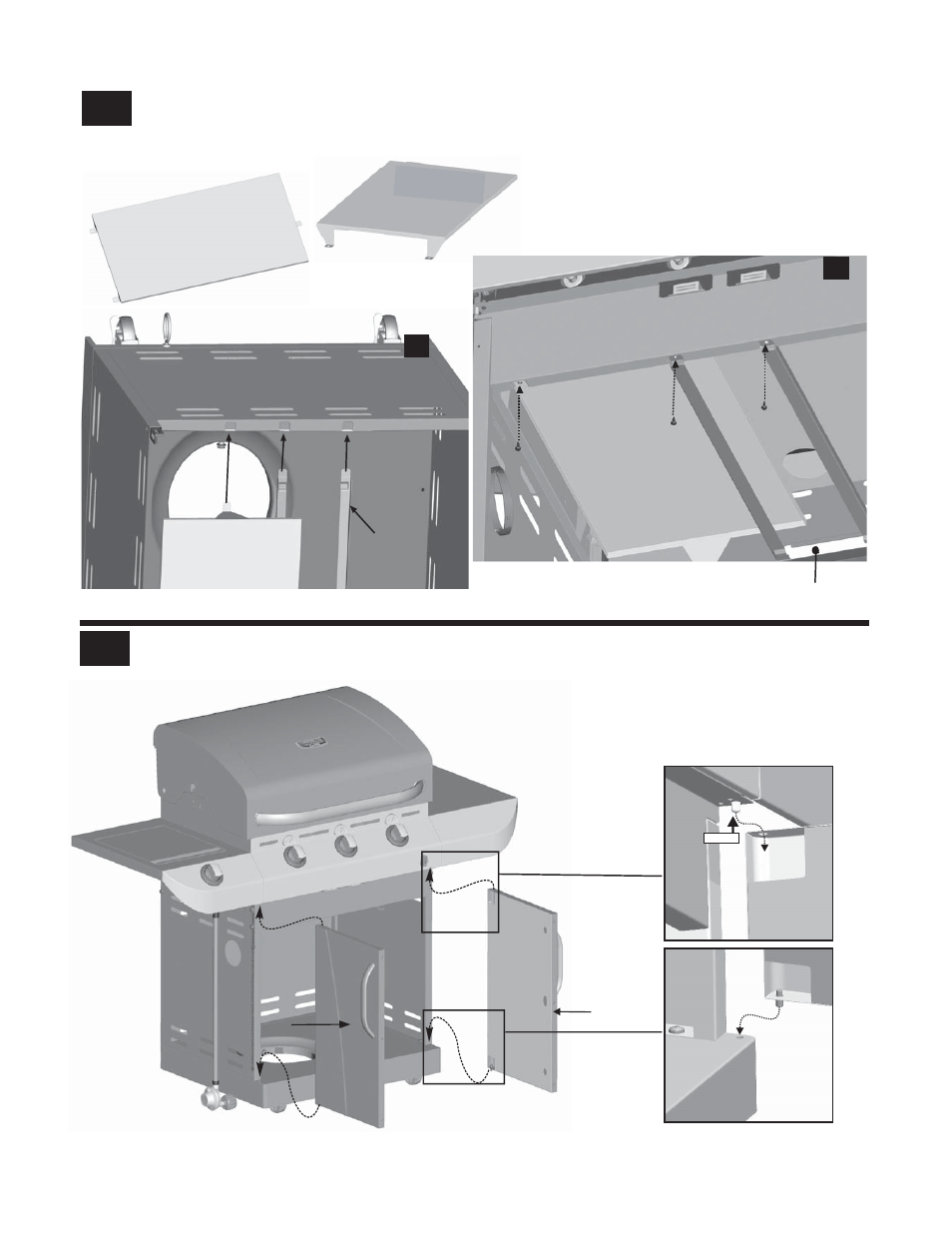

Insert hinge pin on bottom of doors into hole in bottom shelf. Press upper hinge pin in front brace, align hinge hole on top of
door, and release hinge pin into door.
Hinge pin
on bottom
of door
Top of
door
PRESS
19
Left door
Right door
*This side UP
Tank heat shield
12
Inside of cart, insert rear shield tab into left slot on upper of lower back panel.
Attach front shield tabs under front brace and attach right and
Insert left and right grease tray rails into slots
left rails under front brace with three #8x3/8” self-tapping screws, shown B.
Rear
Front
Tank heat shield
Tank heat shield
Cart lower back panel
Right rail
Left rail
Front Brace
Right rail
Left rail
#8x3/8”
self-tapping screw
Grease tray opening
beneath grease tray opening in upper back panel, shown A.
for clarity of illustration
Note: some parts omitted
A
B
