Shut power off by unplugging the power supply (Figure 2-4), and remove the card with the Rod
as follows:
1. Remove the Rear Panel Cover to access the Ejector Rod as indicated in Figure 3-2.
Rear Panel Cover
Ejector Rod Hole
For Card Removal
Rear Panel
Card Ejector Rod

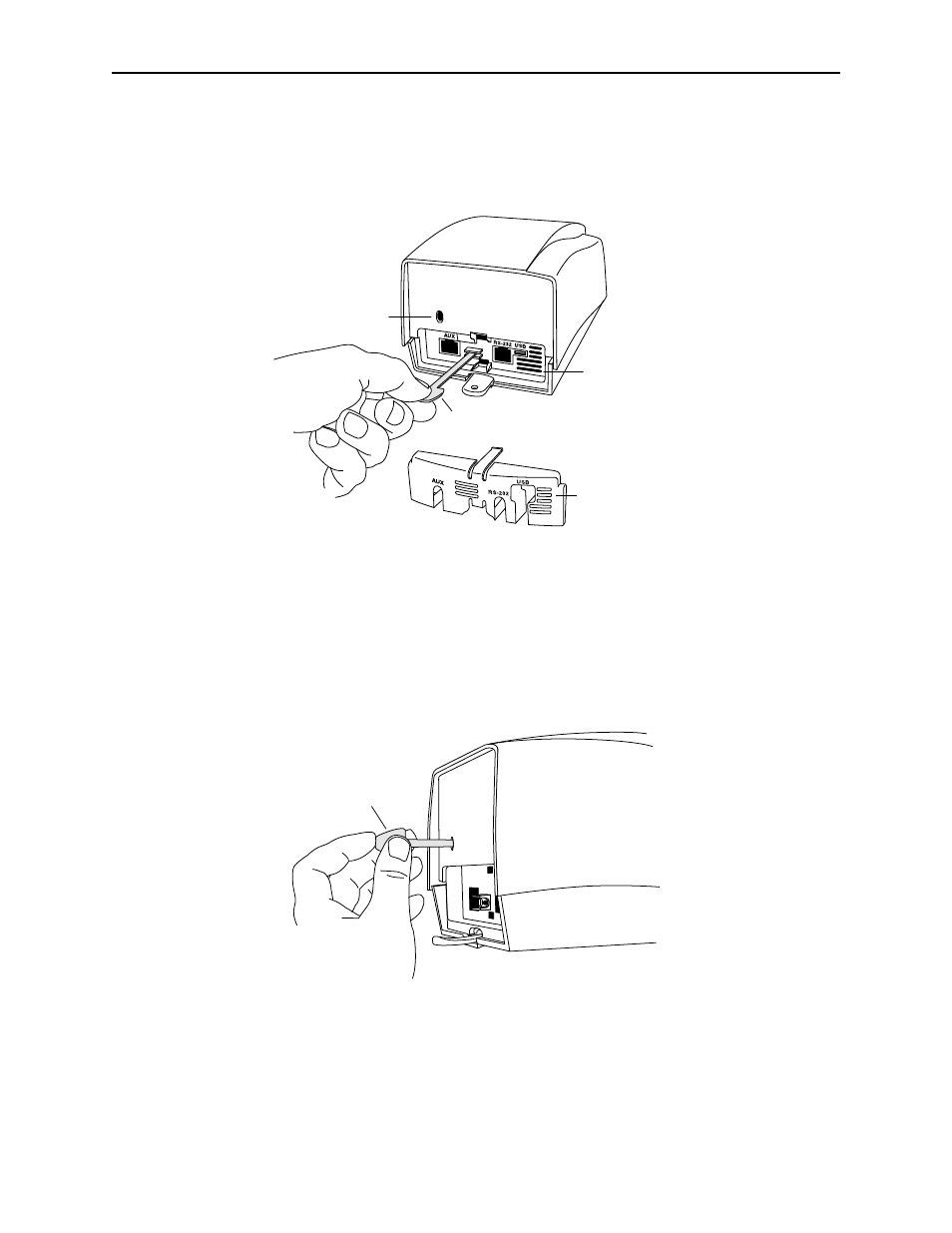

Figure 3-2. Ejector Rod Removal from Storage
2. Look into the Hole for Card Removal in the back of the unit, shown in Figure 3-2, to see the
jammed card. This will indicate the approximate position where the notch on the Ejector Rod
will be positioned with respect to the card.
3. Insert the Rod into the Hole for Card Removal, as shown in Figure 3-3 and push the Rod until
the card appears in the slot at the front of the unit.
AUX
Card Ejector Rod
Figure 3-3. Card Removal
4. Manually remove the card when it appears in the slot in the front of the unit.
5. Reconnect the power cord.
