Section 2. Installation

15

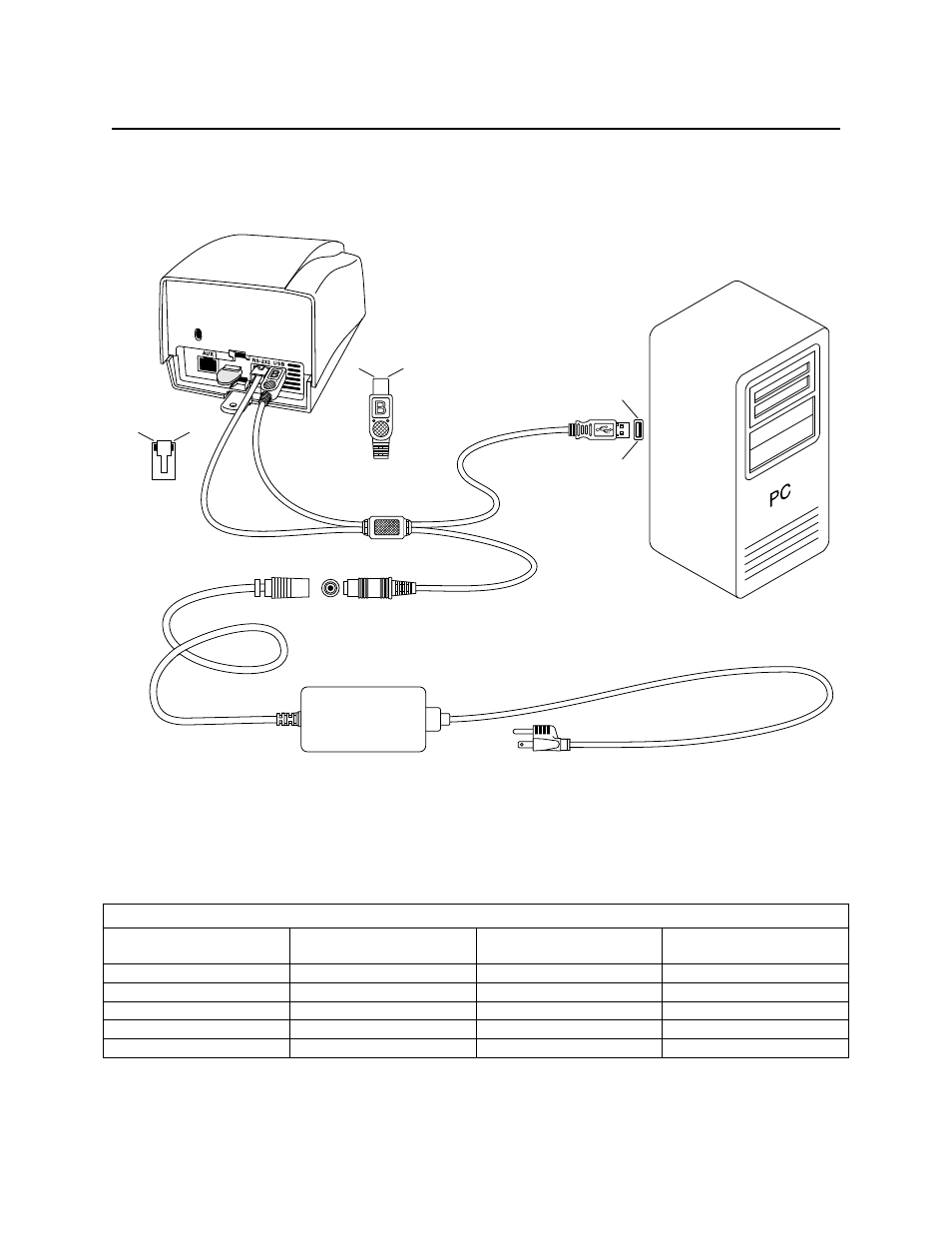

Cable connections for the USB are Shown in Figure 2-5, and the pin lists are shown in Table 2-2
and Table 2-3.

IntelliStripe 380

Back Panel

P1

P4

P2

P3

Pin 4

Pin 1

Pin 1

Pin 5

Pin 1

Pin 10

Power Supply (with cable)

P/N 64300091

Cable

P/N 16051422

North American 110V

Power Cord P/N 71100001


Figure 2-5. Cable Connections - USB


Table 2-2. Cable Connections – USB Signal

CONNECTOR WIRE

P1

USB Type A Plug

Signal Name

Wire Color

P2

Mini USB Type B Plug

1 V

Bus

Red 1

2 D-

White

2

3 D+

Green

3

4 Gnd

Black 5

Shell (Braid Shield)

Shell (Braid Shield)
