IntelliStripe 380
14
Cable
P/N 16051417
To PC
Power Supply (with cable)
P/N 64300091
North American 110V
Power Cord P/N 71100001

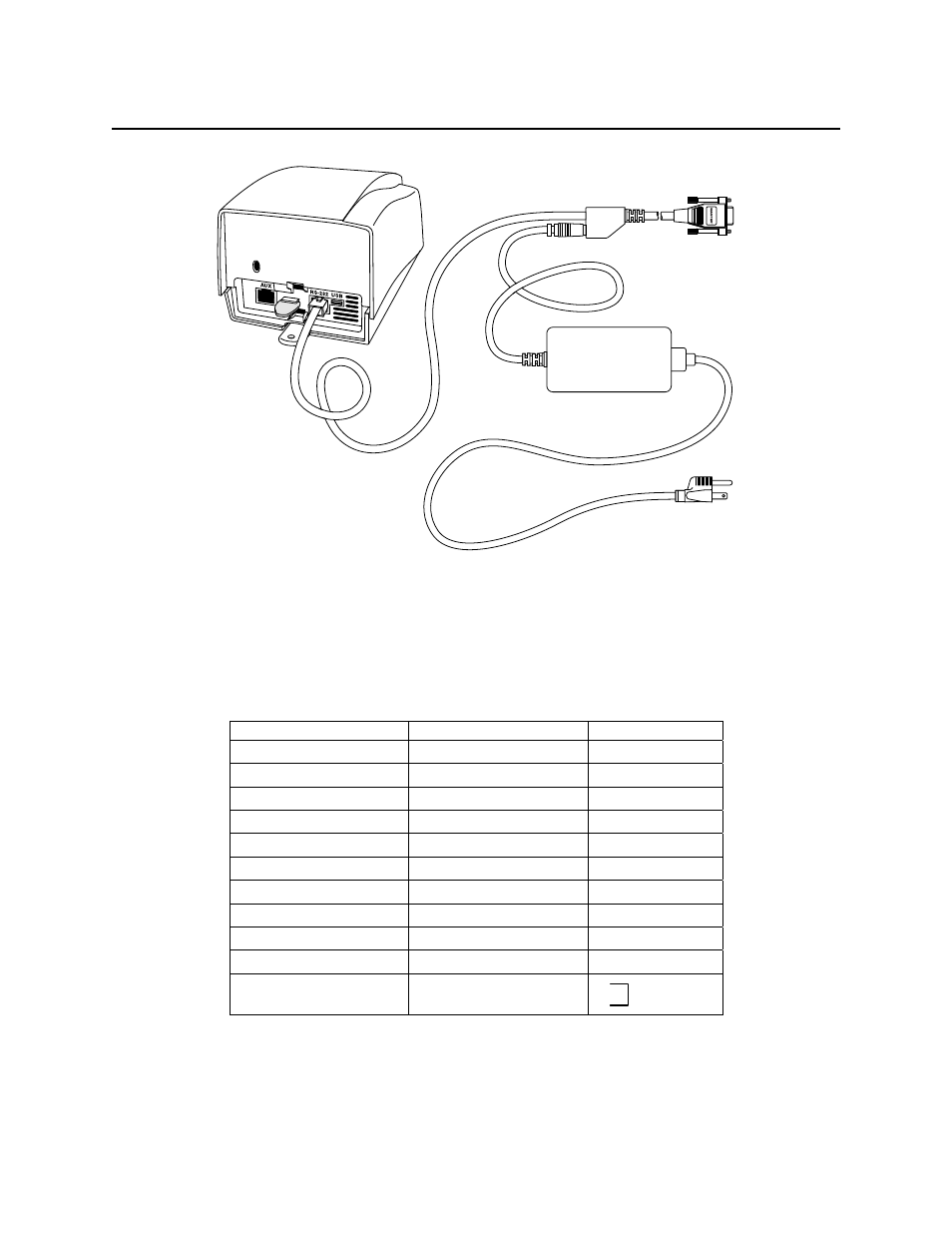

Figure 2-4. Cable Connections - RS-232
Table 2-1 lists the pins for the host cable P/N 16051417.
Table 2-1. Pin List for IntelliStripe 380 to Host PC Cable P/N 16051417
10P10C RJ Plug 2.5mm Power Jack DB-9 Female
1 PWR GND SHELL GND
2 +12 CENTER PIN +12
3 TXD 2 RXD
4 CTS 7 RTS
5 SIG GND 5 GND
6 PWR GND SHELL GND
7 RTS 8 CTS
8 +12 CENTER PIN +12
9 RXD 3 TXD
10 +12 CENTER PIN +12
4 DTR
6 DSR
