© 2005 Jaypro Sports Equipment JSL-Inst005 Rev B 09-06-2005 4 of 10
1. Beam Oriented Parallel with Load Bar & Mats
General Description:
Mat storage system mounted to a single flange beam. Beam is directly overhead and
parallel with hoist system load bar & mats in the stored position.
a. Beam must extend past the main drive system enclosure and/or winch locations. If this is not
the case then you cannot install the Matlok on this system as designed. Contact Jaypro directly
for more information.

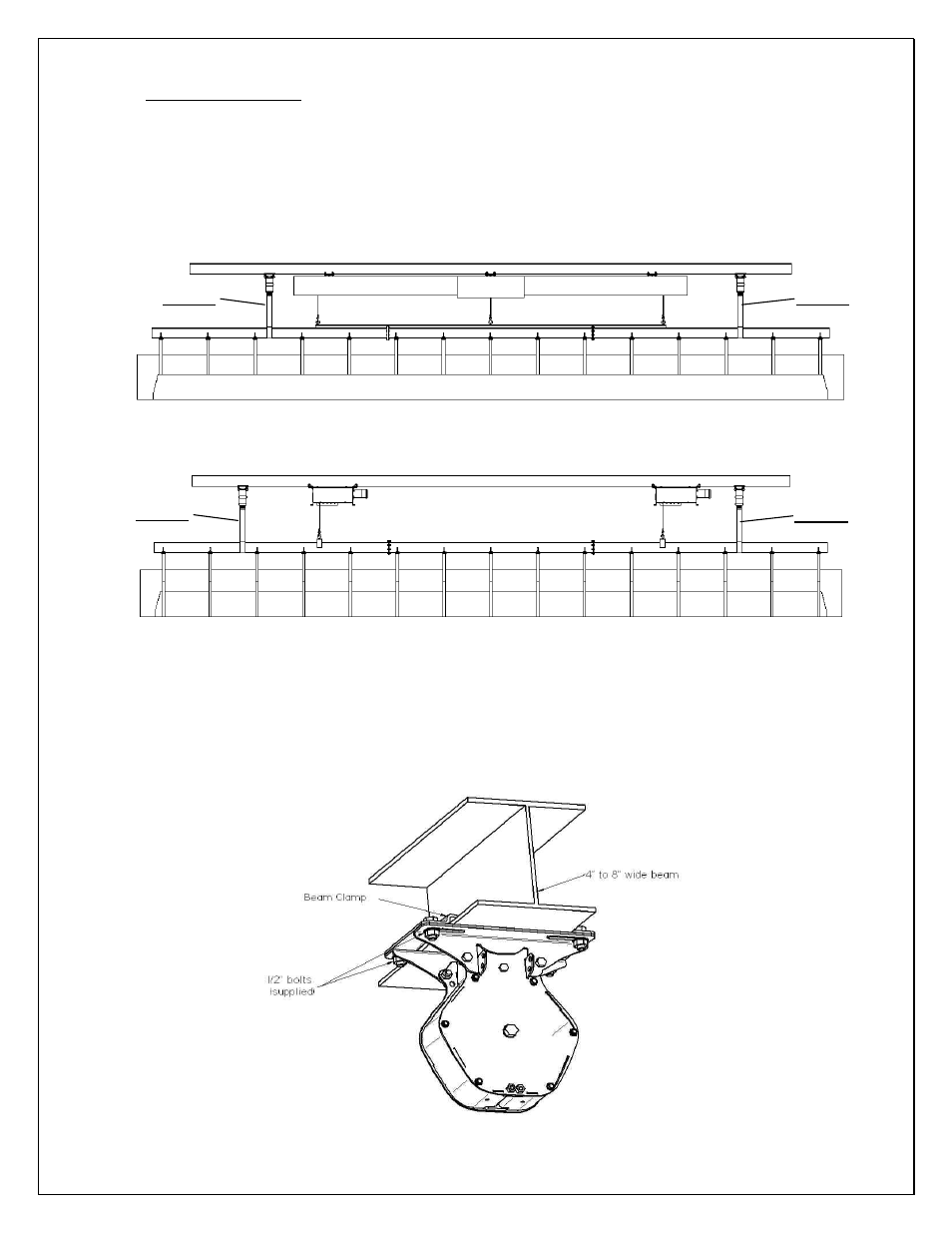

Figure 3: Enclosed Drive Style Hoist on Single Parallel Beam
Figure 4: Double Winch Style Hoist on Single Parallel Beam
b. Matlok installed as shown in image below. Beam flange must be between 3 ½” and 8 ¼” in
width, and no more than ½” thick. For any other size beam contact Jaypro directly (Note: an
expansion kit may have been ordered and therefore supplied with the Matloks. If this is the
case, consult installation drawings included with that kit for further instructions).
Figure 5: Matlok Fall Arrester on Parallel Beam
Matlok Matlok
Matlok Matlok
