e) Install Guardrail Panels:
1) Install the back center panels (26) between the rear support posts as shown in Detail 5B.
2) Install both back end panels (27) as shown. Attach one corner post (25) to the end of
each end panel, using the hardware shown in Detail 5C.
3) Working forward, install the three side panels between the side support posts (24) on
each side as shown. Adjust the position of the side support posts as needed.

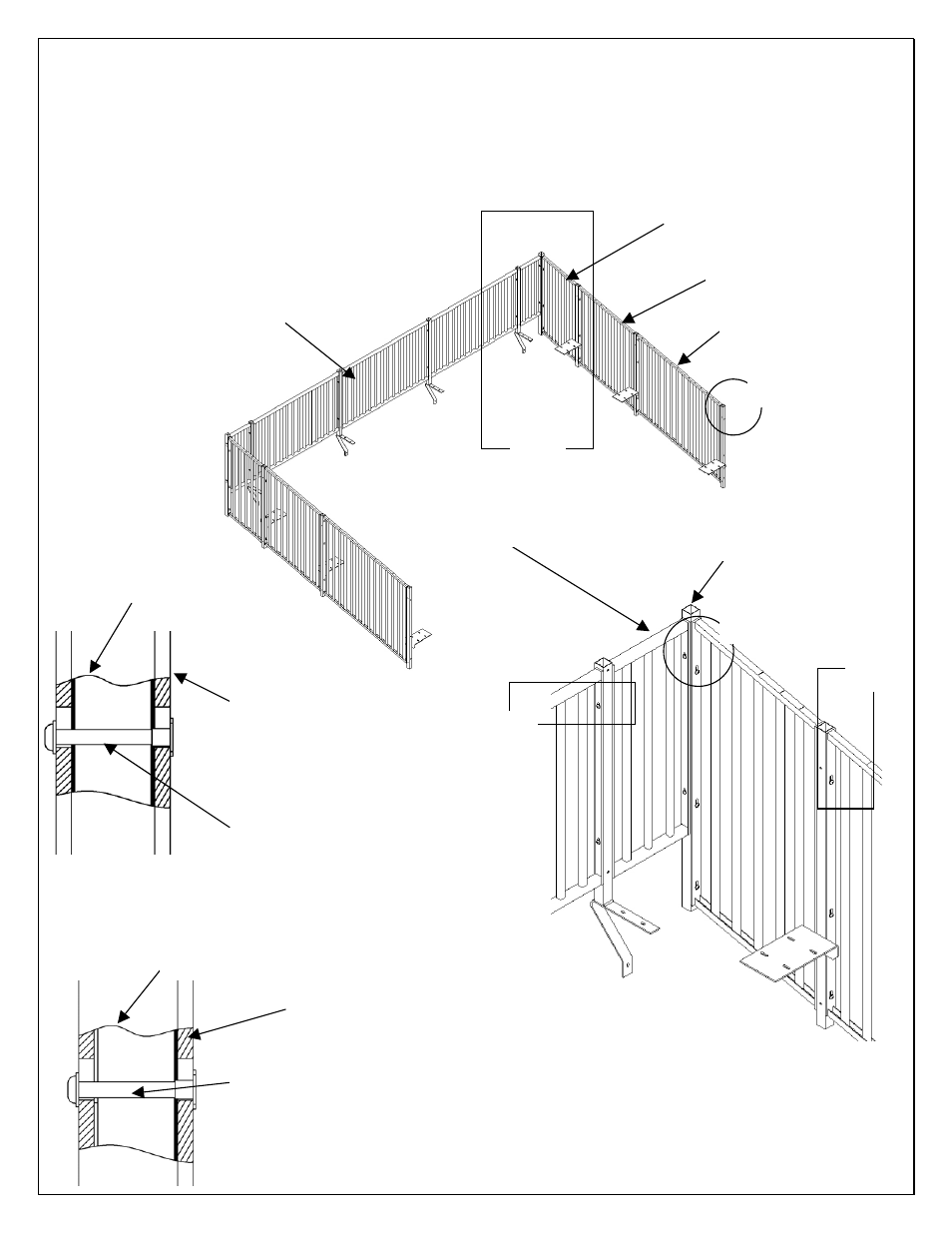

5A
DETAIL 5A
5B
5C
5B
5C
DETAIL 5B
DETAIL 5C
3/8”-16 x 2-1/4” BUTTON HD CAP SCREW, SS (19)
3/8” SAE FLAT WASHER, SS (21)
3/8”-16 SLAB BASE TEE NUT, SS (22)
GUARDRAIL BACK PANEL (26)
GUARDRAIL BACK
END PANEL (27)
CORNER POST (25)
3/8”-16 x 2-3/4” BUTTON HD CAP SCREW, SS (20)
3/8” SAE FLAT WASHER, SS (21)
3/8”-16 SLAB BASE TEE NUT, SS (22)
TYP GUARDRAIL END PLATE
CORNER POST (25) AND
FRONT SIDE SUPPORT
POST (24)
SIDE SUPPORT POST (24)
TYP GUARDRAIL
BACK TO BACK
GUARDRAIL MIDDLE
SIDE PANEL (29)
GUARDRAIL FRONT
SIDE PANEL (30)
GUARDRAIL REAR SIDE
PANEL (28)
