Unit Style Description Face of Bank Minimum Block Height
ST24 Stationary 24" - 48" 18'
ST46 Stationary 49" - 72" Face of Bank + 10'-6"
ST68 Stationary 73" - 96" Face of Bank + 10'-6"
ST812 Stationary 97" - 144" Face of Bank + 10'-6"
Figure 2: Minimum Wall Height Table
f. The wall surface that the backstop structure is attached to must be capable of supporting the
backstop and the forces applied when it is in play. Concrete block, brick, or solid concrete
walls are ideal. If your walls are any other material please contact Jaypro Sports for suggested
attachment methods (also see ‘Anchor Management’ section later in this manual).

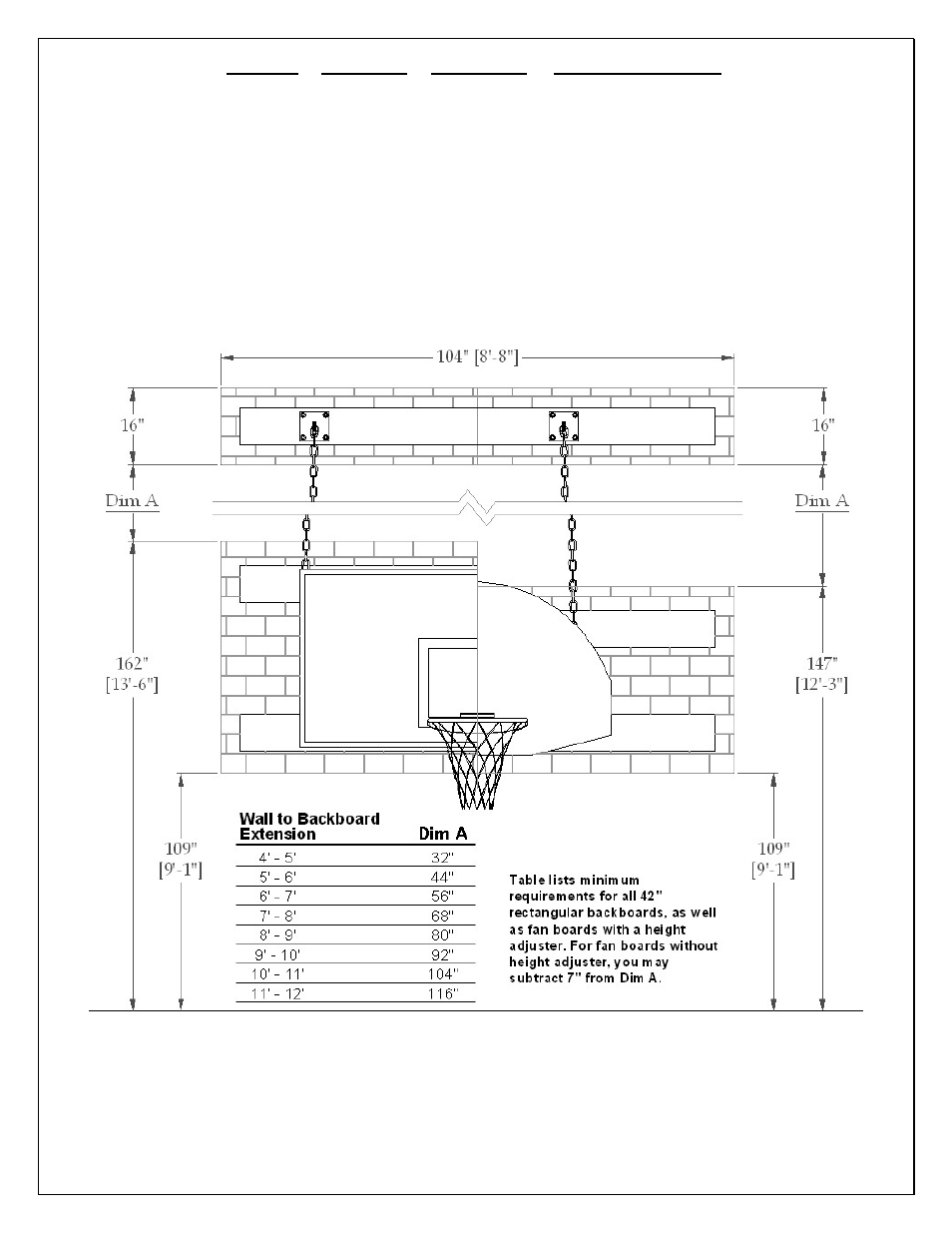

g. Determine location of top wood member so that support chains are optimally kept at 45°. The
diagram below shows attachment heights for all wall structure.
Figure 3: Attachment Heights
