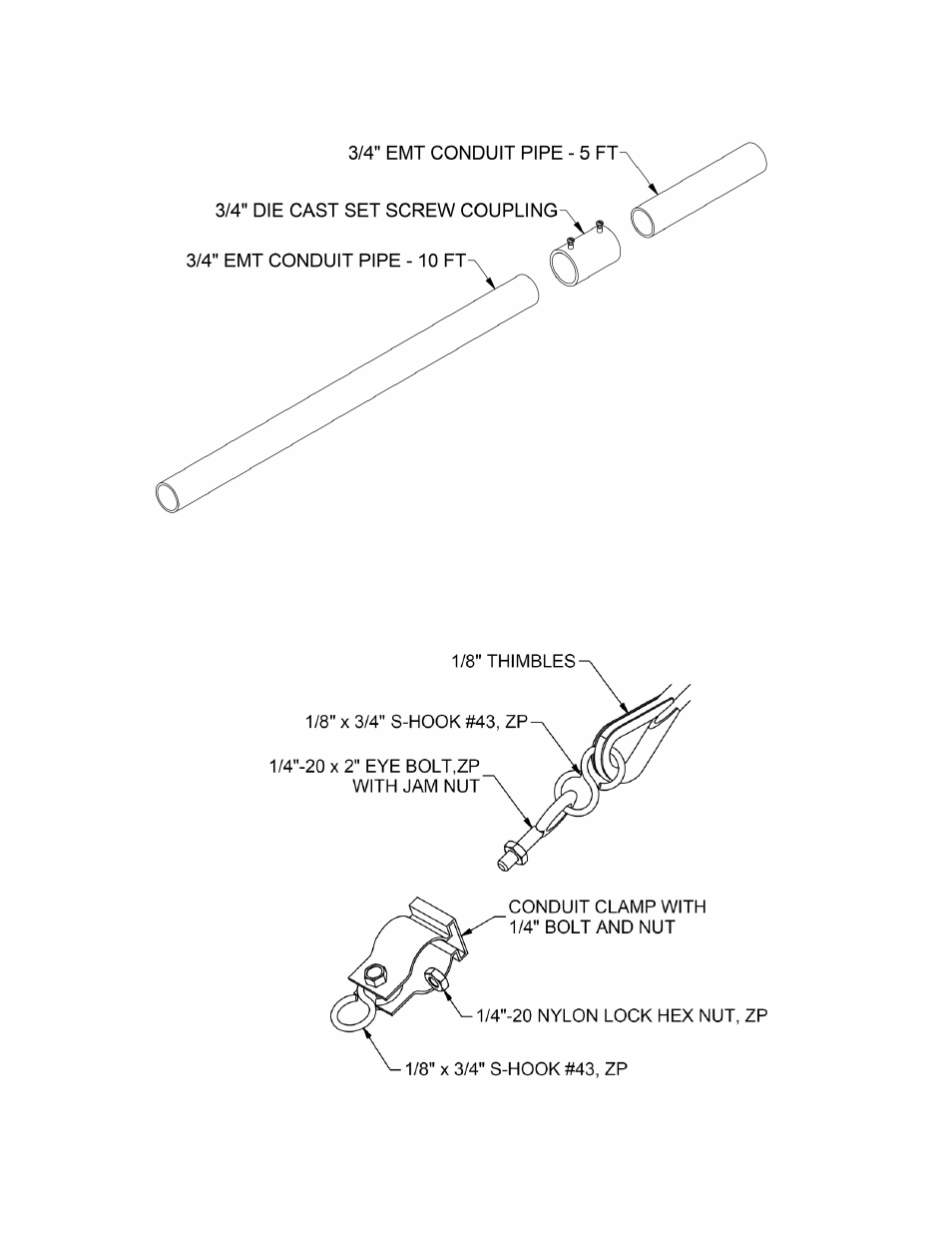

1. Attach the 5 FT on to the 10 FT conduit pipe, as shown in Figure 9.
Figure 9: Assemble Pipe
2. Assemble the pipe clamps, as shown in Figure 10. Securely tighten the jam nut on the
eyebolt. Close off one end of the S-Hook and place it on the hanger clamp screw. Slide the
clamps onto the conduit pipe, maintaining the same spacing as the support cables. Tighten
the screws holding the clamps in place.
Figure 10: Assemble Clamp Fittings
