SETUP INSTRUCTIONS (continued)
Connecting the system to other types of pump (with different type of thread or no
thread):
The Ozone & Saltwater System can also be adapted to other filter pumps with different thread or
those without a thread on the connection.
Connection to 1-1/2” (38mm) hose with clamp:
1. Connect the connector hose (8) to the filter pump outlet connection with a large hose clamp.
Tighten
securely.
Connecting the system to other types of pool
After you have connected the Ozone & Saltwater System to the pump, connect it to the pool.
This is depicted in Drawings #1.
Following are the common connection types:
Connection to 1-1/2” (38mm) connectors without thread:
1. Connect the adaptor A (1) to the Ozone & Saltwater System outlet. Tighten securely.
2. With the adaptor A (1) fixed to the Ozone & Saltwater System outlet, connect the water
return hose to the adaptor, using a large hose clamp.

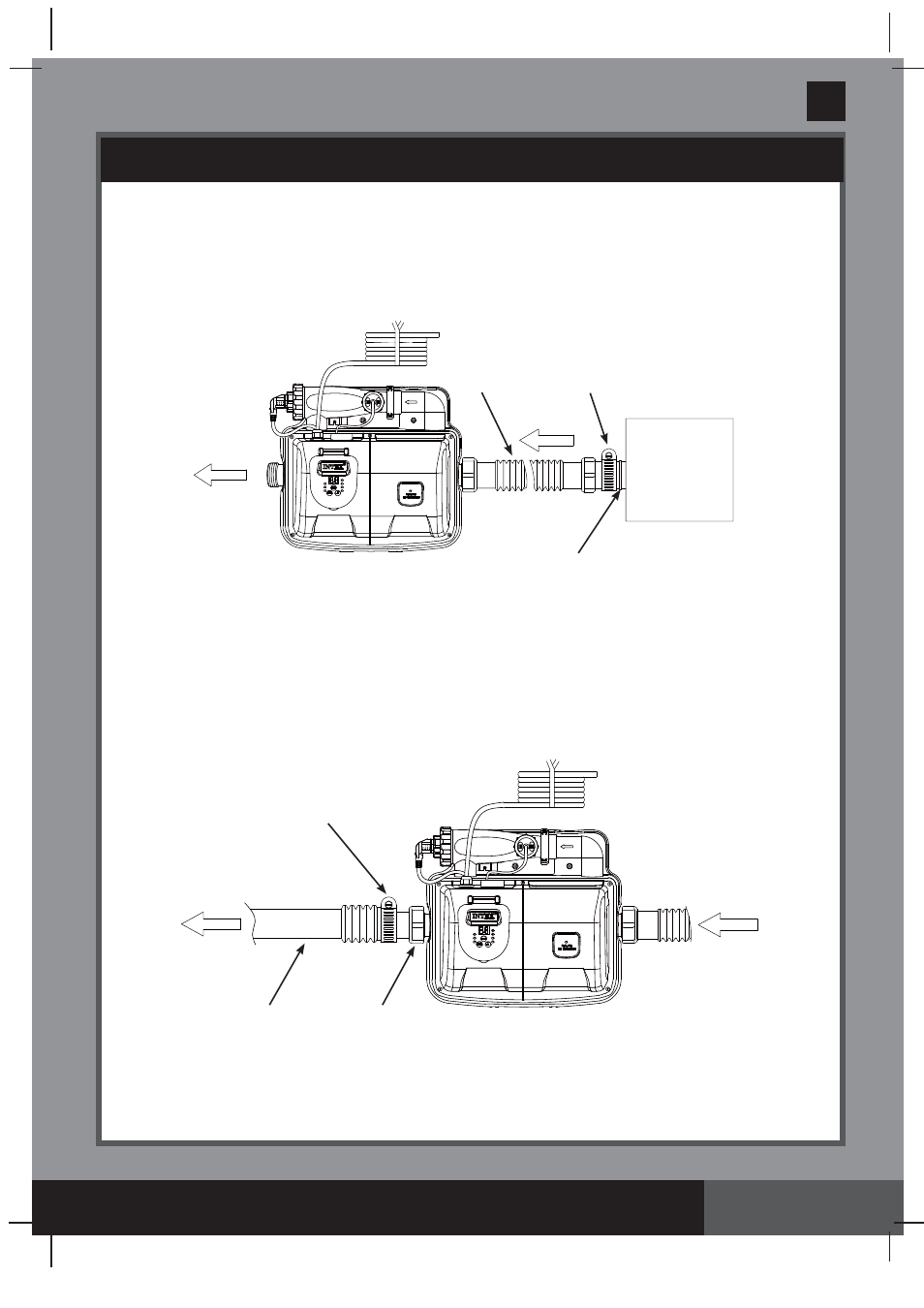

8
LARGE HOSE
CLAMP
FILTER PUMP
ID 1-1/2” (38mm)
CONNECTION
OZONE & SALTWATER
SYSTEM
1 ID 1-1/2” (38mm)
HOSE
OZONE & SALTWATER
SYSTEM
LARGE HOSE CLAMP
