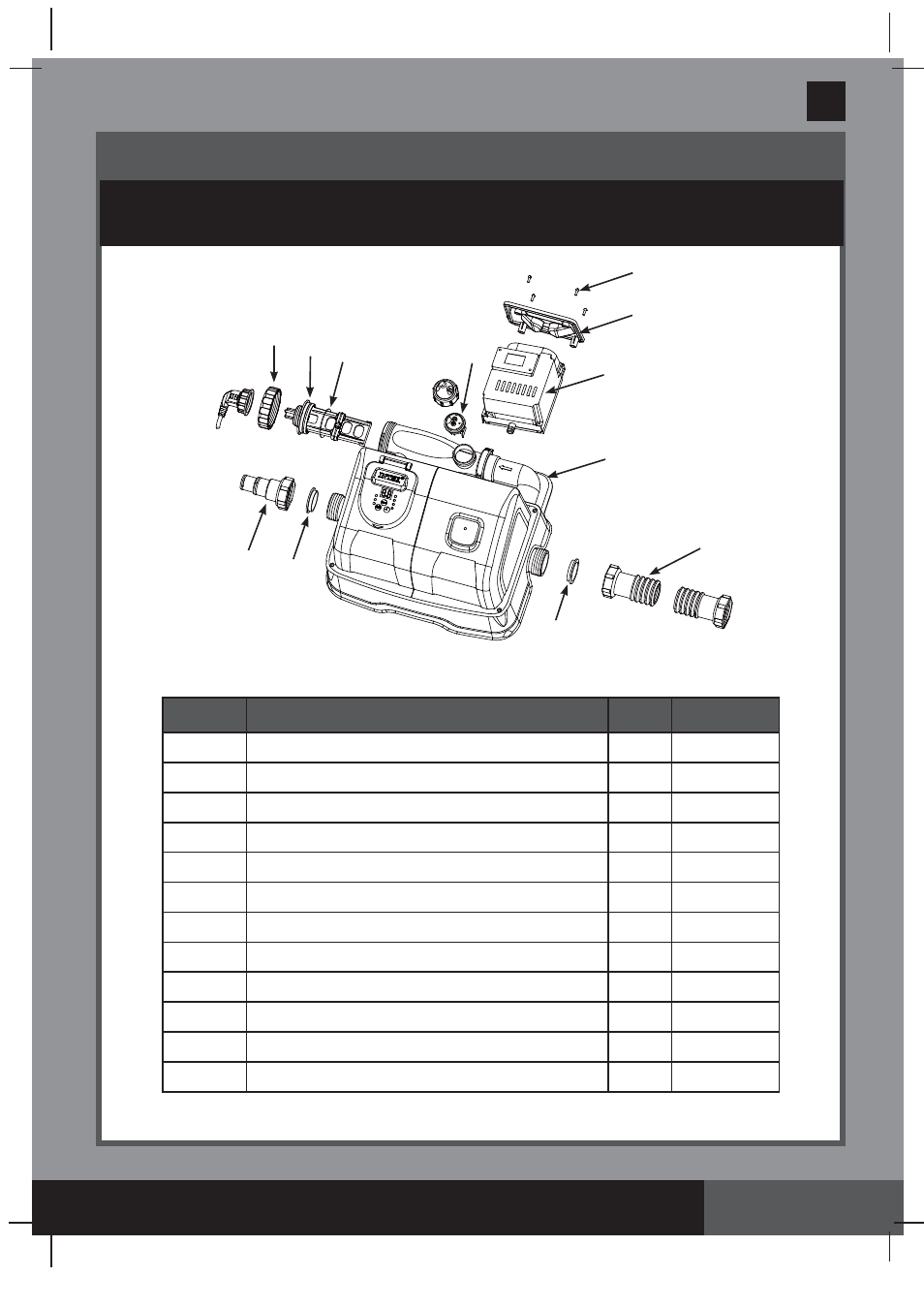

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
1
6
7
4
9
8
2
3
2
5
10
11
When ordering parts, be sure to quote the model number and part numbers.
REF. NO.
DESCRIPTION
QTY.
SPARE
PART NO.
1
ADAPTOR A WITH THREADED COLLAR (OPTIONAL)
1
10849
2
L-SHAPE O-RING
2
11228
3
SCREW
4
11677
4
TITANIUM ELECTRODE NUT
1
11432
5
TITANIUM ELECTRODE
1
11374
6
O-RING ON TITANIUM PLATES
1
11515
7
FLOW SENSOR
1
11460
8
CONNECTOR HOSE WITH THREADED FITTINGS
1
10493
9
OZONE GENERATOR ASSEMBLY
1
11561
10
ELECTRONIC CONTROL STATION
1
11563EG
11
OZONE ASSEMBLY COVER PANEL
1
11652
12
CHLORINE TEST STRIPS
1
19635
