SETUP INSTRUCTIONS
1. Assemble the above-ground-pool (AGP) and its filter pump according to their installation
instructions.
2. Take the Ozone & Saltwater System and its accessories out of the packaging.
3. Place the Ozone & Saltwater System in line after the filter pump.
4. Connect the connector hose (8) to the Ozone & Saltwater System inlet.
Connecting the system to pump and pool with 1-1/2” (38mm) connections/hoses,
install as follows:

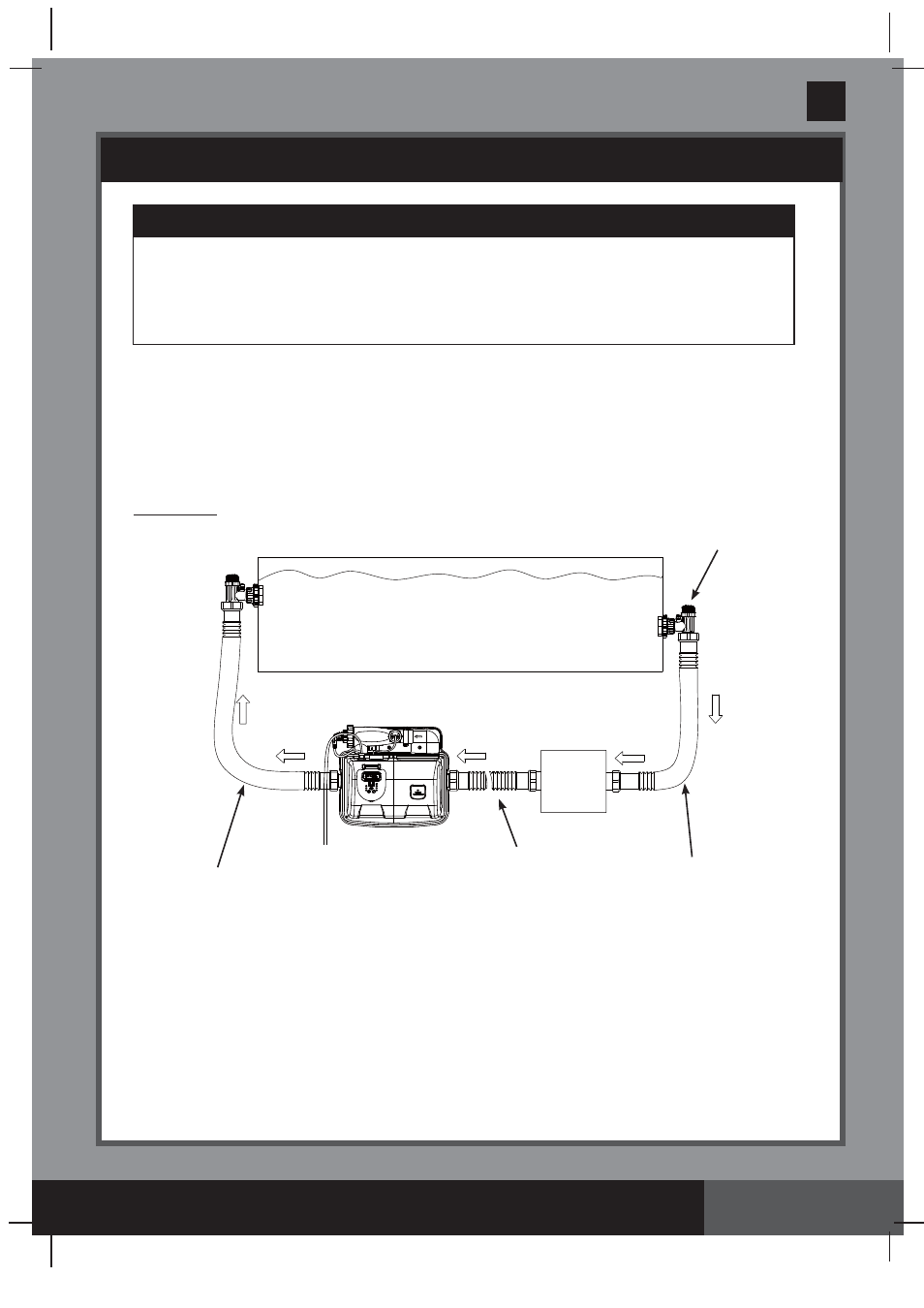

Drawing #1
IMPORTANT
• The Ozone & Saltwater System requires a separate filter pump [1500~4000 gph
(5680~15140 lph)] to drive the water and function properly.
• The Ozone & Saltwater System must be installed as the last piece of pool equipment
in the water return line to the pool as displayed in Drawing #1. This location extends
the life of the titanium plates.
8
FILTER
PUMP
ID 1-1/2” (38mm)
HOSE
ID 1-1/2” (38mm)
HOSE
OZONE &
SALTWATER
SYSTEM
SWIMMING POOL
WATER TO
POOL
PLUNGER
VALVE
WATER
FROM POOL
1. Go directly to step 2 if your pool is empty. If your above-ground-pool is filled with water, close
the plunger valves before installing the Ozone & Saltwater System.
2. Disconnect the water return hose from the filter pump connection and connect it to the Ozone
& Saltwater System outlet.
3. Connect the connector hose (8) to the filter pump outlet connection.
4. Open the plunger valves to allow the water to flow.
