SAVE THESE INSTRUCTIONS Page 9

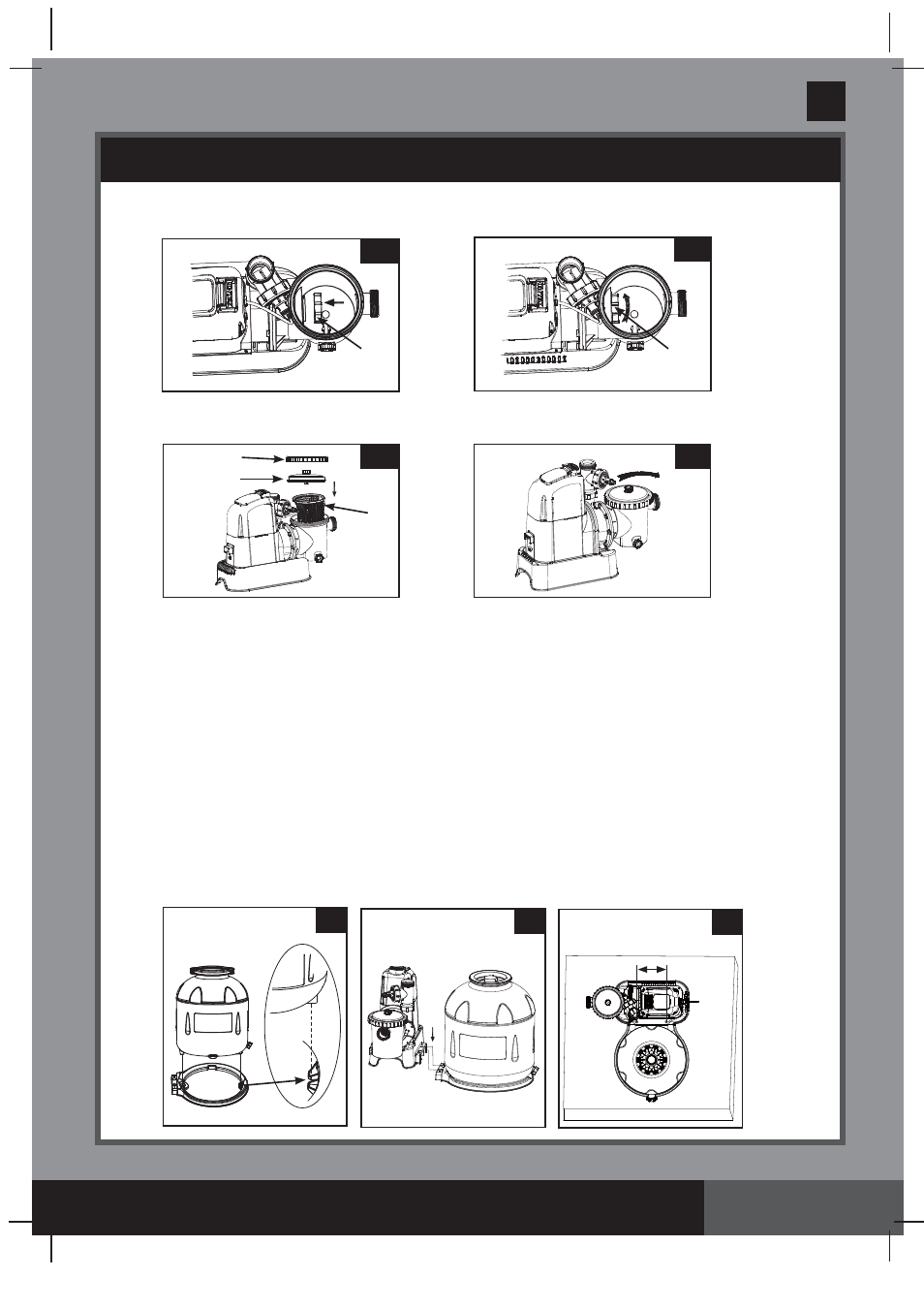

4. In a clockwise motion screw filter housing nut (17) onto the motor water inlet (See
drawings 12.1 & 12.2).
5. Replace the basket (16) and leaf trap cover (14) back to the pre-filter housing (See
drawings 13.1 & 13.2).
SETUP INSTRUCTIONS (continued)
Sand tank installation:
1. Place the tank support base at the selected location.
2. Place the tank on the tank support base (See drawing 14.1).
3. Connect the motor pre-filtering assembly unit to the tank support base (See drawing 14.2).
NOTE: Ensure the pre-filter housing water inlet hose connection is facing towards the pool.
IMPORTANT: Some countries, especially in the European community, require the
product to be secured to the ground or to a base in a permanent upright position.
Check your local authorities to determine if there is a regulation in your area
regarding above-the-ground swimming pool filter-pumps. If yes, then the product can
be mounted to a platform using the two holes located in the base. See drawing 14.3.
The product can be mounted on a cement base or onto a wooden platform to prevent
accidental falling over.
• For model CS20110: The mounting holes are 6.4 mm in diameter and
spaced 115 mm apart.
For model CS15110: The mounting holes are 6.4 mm in diameter and
spaced 115 mm apart.
• Use two bolts and lock nuts with a maximum of 6.4 mm in diameter.
13.1 13.2
14.1 14.2 14.3
16
14
12.2 12.1
17
17
41
Model CS20110: 115 mm
Model CS15110: 115 mm
