SAVE THESE INSTRUCTIONS Page 6
The strainer grid prevents large objects from jamming and/or damaging the filter pump. If
your pool has an inflatable top ring, install the strainer, nozzle and plunger valve before
inflating the pool liner top ring. The part numbers here onward refer to the parts depicted
in the Parts List section of this manual. To install, do the following:
1. In a counter-clockwise motion unscrew plunger valve
union from the threaded strainer connector (33) (see
drawing 1). Be careful not to lose the step rubber
washer (30). Place the plunger valve on the ground in
a safe place.
2. In a counter-clockwise motion unscrew the strainer nut
(31) from the threaded connector (33). Leave the flat
washer (32) on the connector (33).
3. Install the strainer and plunger valve at the lower
position of pool outlet (marked "+"). From the inside of
the pool liner insert the connector (33) into one of the
pre-cut holes with the washer remaining on the
connector to be placed against the inside of the liner
wall.
4. Before assembly, lubricate the threads with a petroleum
jelly. With the flat side of the strainer nut (31) facing
the outside wall of the liner in a clockwise motion screw
the strainer nut (31) back onto the threaded connector
(33) (see drawing 2).
5. Finger tighten the strainer nut (31) onto the threaded
connector
(33).
6. Grasp the plunger valve assembly. Make sure the step
washer
(30) is in place.
7. In a clockwise motion screw the plunger valve union
back onto the threaded connector (33) (see drawing 3).
8. In a clockwise motion turn the plunger valve handle to
close position. Ensure the plunger valve is securely
closed. This will prevent water from flowing out during
filling of the pool (see drawing 4.1).
9. NOTE: Never cover the vacuum release valve (51)
unless it is damaged or leaking. Replace the vacuum
release valve immediately.

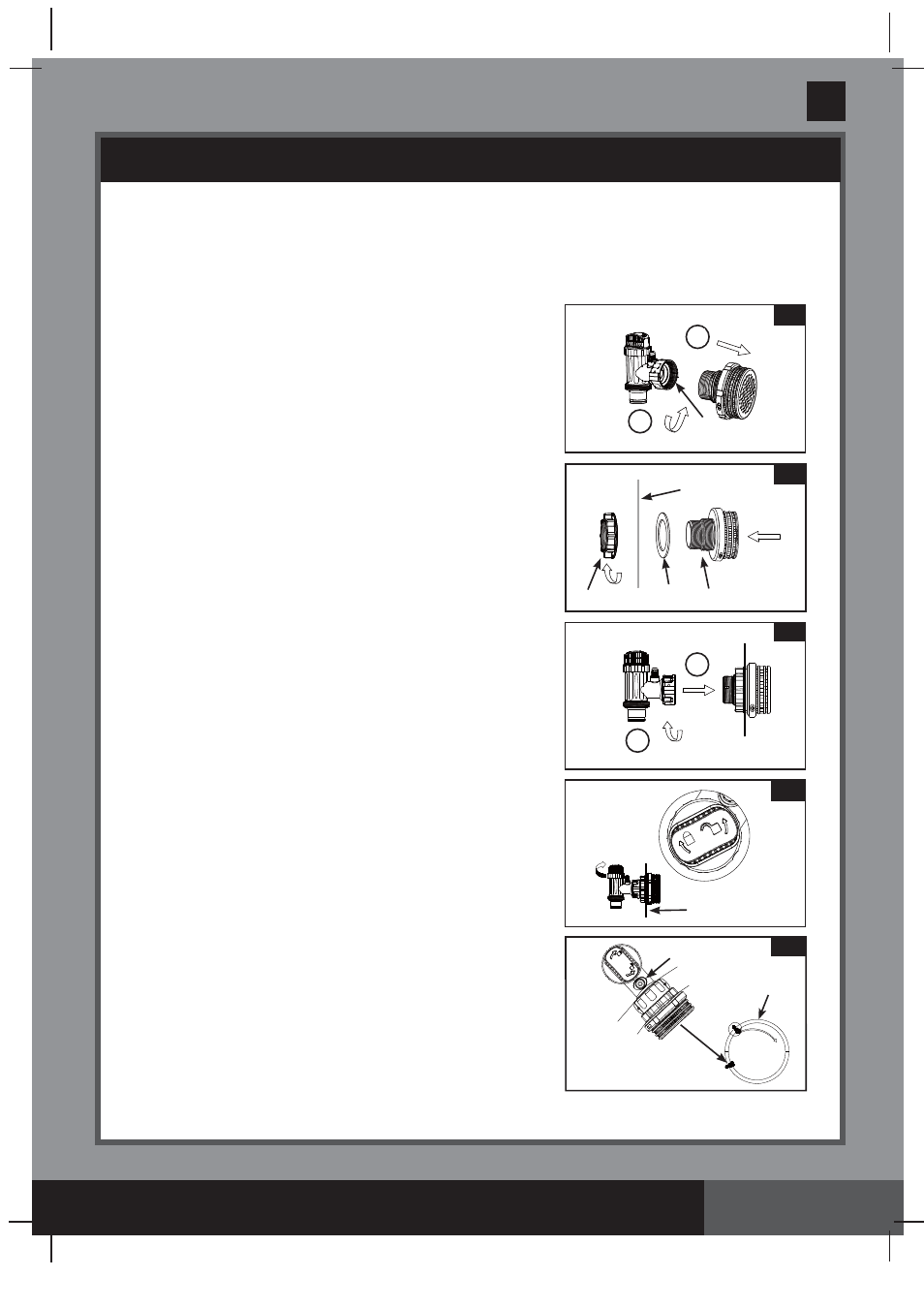

POOL OUTLET - STRAINER & PLUNGER VALVE SETUP (optional)
