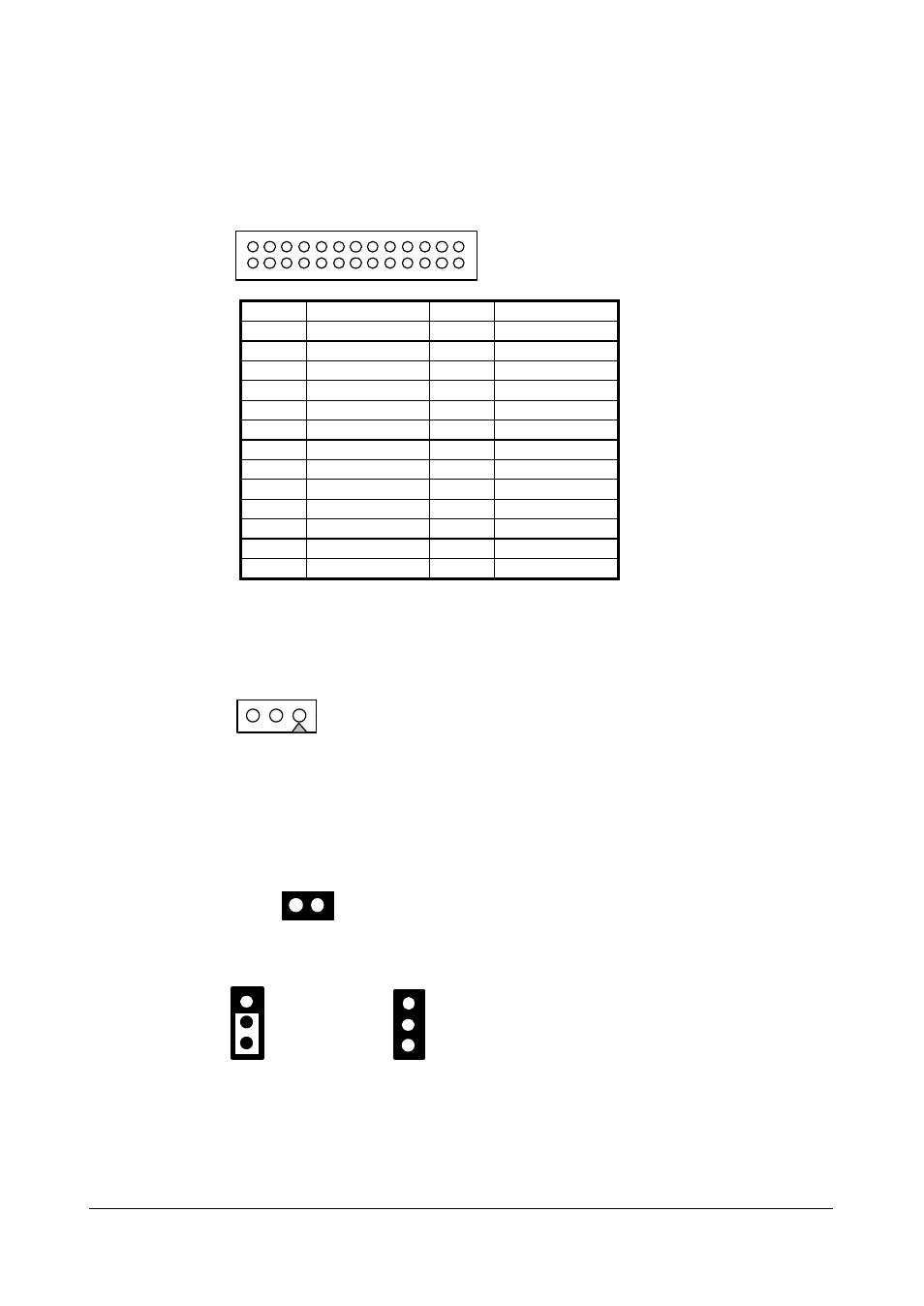

2-23. PRINTER CONNECTOR(CN2)
As to link the Printer to the card, a cable is needed to connect both DB25 connector and parallel
port. The pin assignments are as follows :
1
2
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
STB
14
AUTFE
2
P0
15
ERROR
3
P1
16
INIT
4
P2
17
SLCTIN
5
P3
18
GND
6
P4
19
GND
7
P5
20
GND
8
P6
21
GND
9
P7
22
GND
10
ACK
23
GND
11
BUSY
24
GND
12
PE
25
GND
13
SLCT
26
NC
2-24. SYSTEM FAN POWER CONNECTOR(CN27)
2
5
4
1
3
1. GND
2. +12V
3. Fan Speed
2-25. POWER ON CONNECTOR FOR ATX POWER SUPPLY(CN15)
PSON
GND
2 1
2-26. POWER CONTROL CONNECTOR(CN4)
1
2
3
for AT Power
PSON
+5VSB
1
2
3
for ATX Power
