Connect Tech FreeForm/PCI-104 User Manual
Revision 0.00
8
Hardware Description and Configuration
The following sections describe the function of all switches/jumpers and provide details on connector
pinouts.
Jumpers and Switches
Slot Selection (RSW1)
This rotary switch selects a slot position in the PCI-104 stack. When mounting on a PCI adapter
card, ensure slot one is selected.
Table 2: Slot Selection (RSW1)
Position
Slot
0,4
0
1,5
1
2,6
2
3,7
3

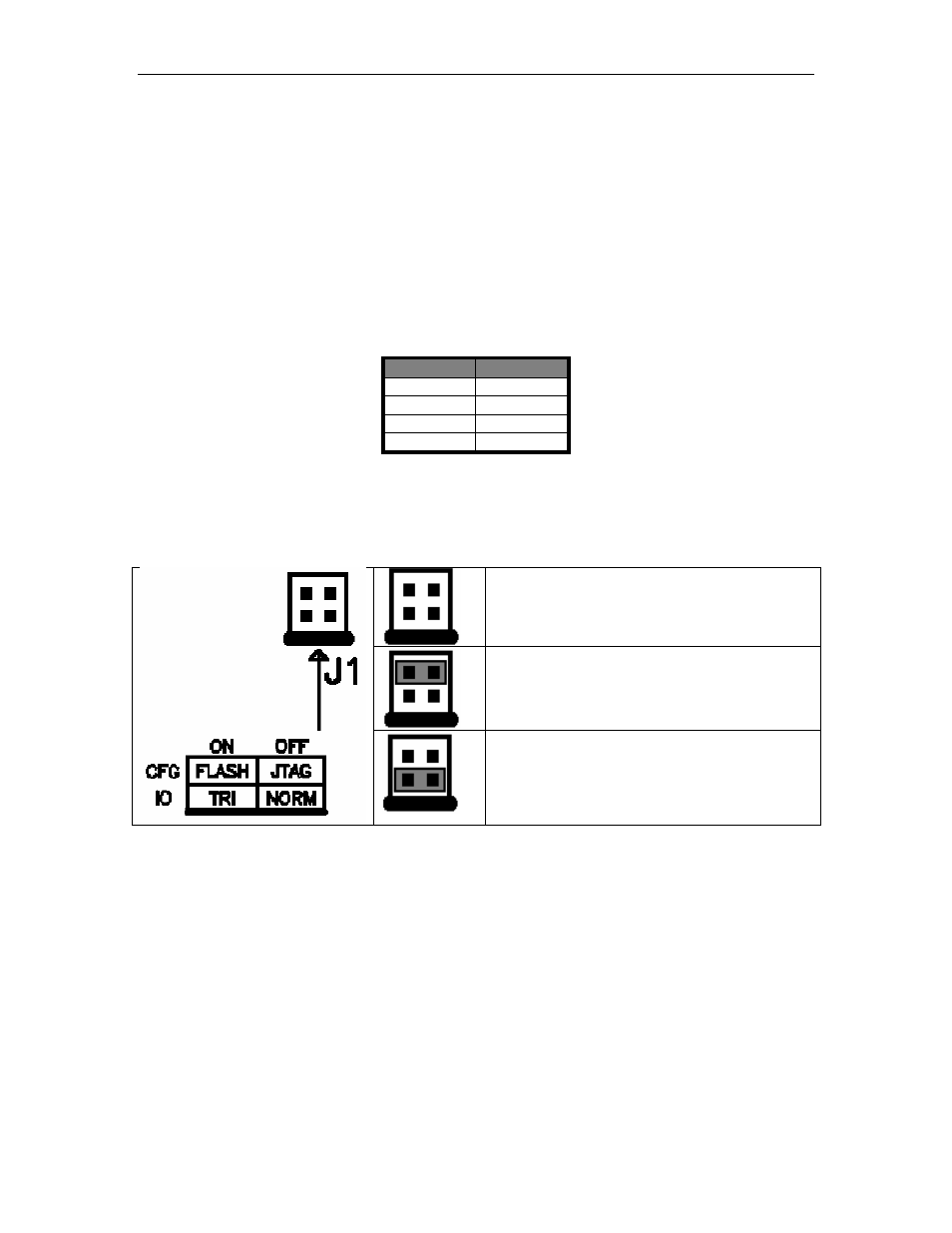

FPGA Configuration Settings (J1)
Jumper J1 is used to control FPGA configuration.
Table 3: FPGA Configuration Settings (J1)
FPGA waits for configuration over JTAG, using
the cable it is connected to
FPGA reads configuration from SPI flash
FPGA is tri-state, program flash directly
