Cornerstone Peripherals Technology P1500 - Manual (Page 23)

22
SPECIFICATIONS (Continued)

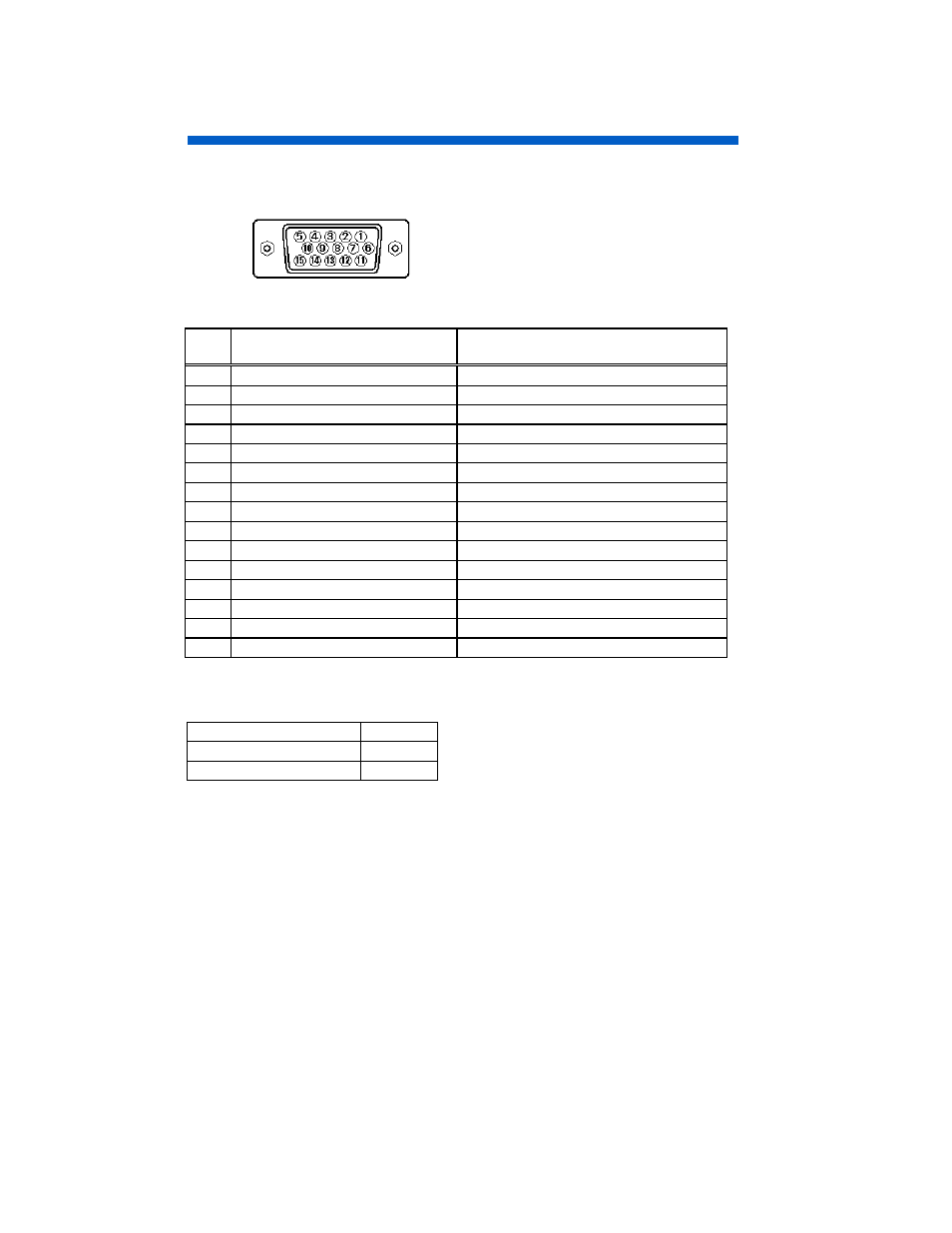

Pin Assignment
Signal Input Connector of the Monitor
Table 7. Pin Assignment
Pin
No. Input 1 Input 2
1 Red Video Red Video
2 Green Video Green Video
3 Blue Video Blue Video
4 No pin No pin
5 No connection No connection
6 Red Ground Red Ground
7 Green Ground Green Ground
8 Blue Ground Blue Ground
9 No connection No connection
10 Ground Ground
11 No connection No connection
12 Bi-directional Data [SDA] No connection
13 H-Sync. (or H/V) H-Sync. (or H/V)
14 V-Sync. [VCLK] V-Sync.
15 Data Clock [SCL] No connection
If the graphics board supplies more than one type of sync. signal, the sync. signal type
will be automatically selected by the monitor, with the priority shown in the following table.
Sync. Signal Type Priority
H, V Separate Sync. 1
H/V Composite Sync. 2
